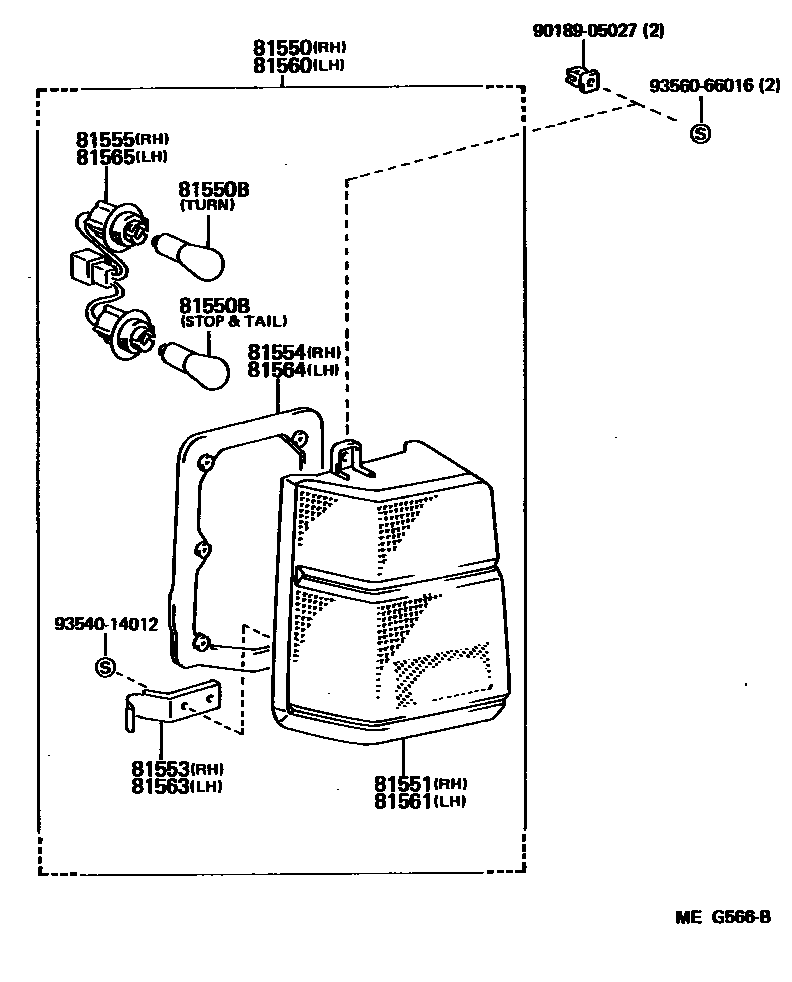

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-95710iCM35,KM3#198510-198708

sub81550-95712

main81550-95712iCM35,KM3#198708-198808

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iCM35,KM3#198510-198808

12V 21W,12V 21W(TURN)

main99132-21210iCM35,KM3#198510-198808

12V 21/5W,12V 21/5W(STOP & TAIL)

81551LENS, REAR COMBINATION LAMP, RH

main81551-95710iCM35,KM3#198510-198708

main81551-95712iCM35,KM3#198708-198808

81553BRACKET, REAR COMBINATION LAMP, NO.1 RH

main81556-95707iCM35,KM3#198510-198808

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-95707iCM35,KM3#198510-198808

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-95710iCM35,KM3#198510-198808

sub81555-95707

81560LAMP ASSY, REAR COMBINATION, LH

main81560-95710iCM35,KM3#198510-198708

sub81560-95712

main81560-95712iCM35,KM3#198708-198808

81561LENS, REAR COMBINATION LAMP, LH

main81561-95710iCM35,KM3#198510-198708

main81561-95712iCM35,KM3#198708-198808

81563BRACKET, REAR COMBINATION LAMP, NO.1 LH

main81556-95707iCM35,KM3#198510-198808

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-95707iCM35,KM3#198510-198808

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-95710iCM35,KM3#198510-198808

sub81555-95707

9018905027

main90189-05027

9354014012

main93540-14012

9356066016

main93560-66016

14 parts on this diagram · 1 diagram in section
