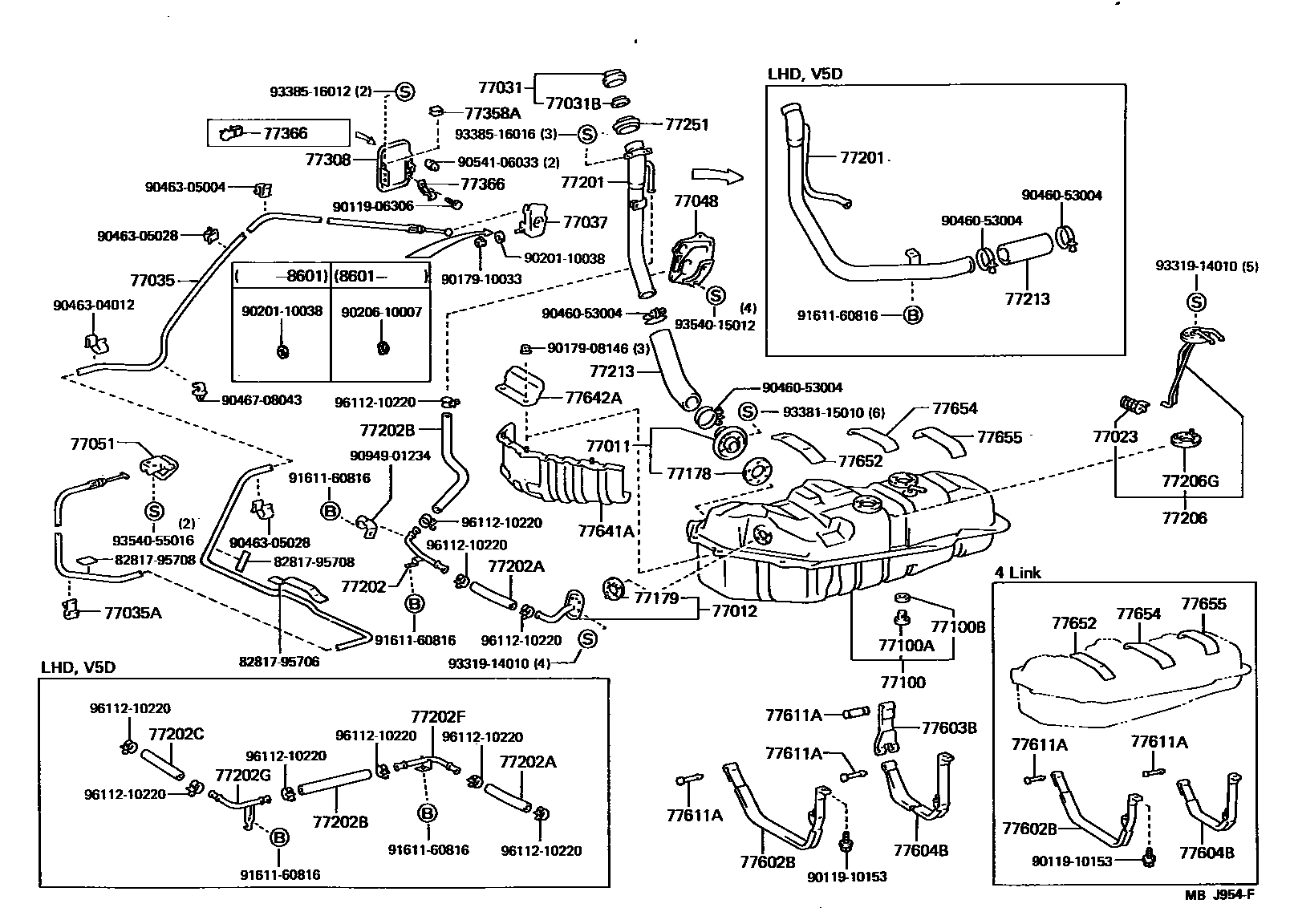

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77031CAP ASSY, FUEL TANK
77031BGASKET (FOR FUEL TANK CAP)
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77048SEAL SUB-ASSY, FUEL INLET PIPE, UPPER
77051LEVER SUB-ASSY, FUEL LID OPEN
*FRG
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179RETAINER, FUEL TANK MOUNTING, FRONT
77201PIPE SUB-ASSY, FUEL TANK INLET
SWIZER LAND SPEC
77202TUBE SUB-ASSY, BREATHER
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)
77202CHOSE, FUEL, NO.3 (FOR BREATHER TUBE)
77202FTUBE, FUEL, NO.1 (FOR BREATHER TUBE)
77202GTUBE, FUEL, NO.2 (FOR BREATHER TUBE)
77206TUBE SUB-ASSY, FUEL TANK SUCTION
77206GGASKET (FOR FUEL TANK SUCTION TUBE)
77213HOSE, FUEL TANK SUB INLET
77251SHIELD, FUEL TANK, INLET, NO.1
77308COVER SUB-ASSY, FUEL INLET BOX
77358ASTOPPER, FUEL FILLER OPENING LID
77366SPRING, FUEL FILLER OPENING LID HINGE
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77603BBAND SUB-ASSY, FUEL TANK, NO.2 RH
77604BBAND SUB-ASSY, FUEL TANK, NO.2 LH
77611APIN (FOR FUEL TANK BAND)
L=57
L=73
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77652CUSHION, FUEL TANK, NO.1
77654CUSHION, FUEL TANK, NO.2
77655CUSHION, FUEL TANK, NO.3
8281795706PROTECTOR, WIRING HARNESS, NO.1
8281795708PROTECTOR, WIRING HARNESS, NO.1
9011906306
9011910153
9017908146
9017910033
9020110038
9020610007
9046053004
9046304012
9046305004
9046305028
9046708043
9054106033
9094901234
9161160816
9331914010
9338115010
9338516012
9338516016
9354015012
9354055016
9611210220
main96112-10220
61 parts on this diagram · 2 diagrams in section
