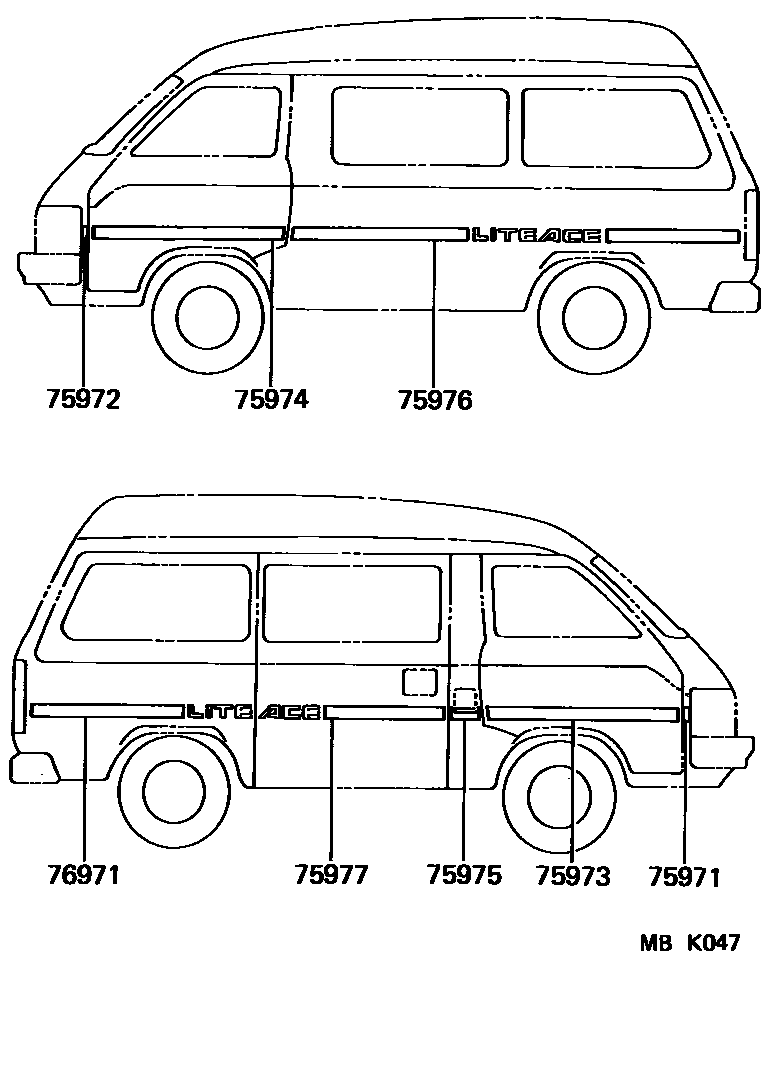

BODY STRIPE

0001 1 0002 1 0003 1

75971STRIPE, SIDE, RH NO.1

main75981-95706-01iKM36..SRF198510-198808

BLACK,BLACK

main75981-95706-03iKM30198510-198808

SILVER,SILVER

main75982-95715iKM30..STD198805-198806

BLUE-M(8D7)

75972STRIPE, SIDE, LH NO.1

main75982-95706-01iKM30198510-198808

BLACK,BLACK

sub75981-95706

main75982-95706-03iKM36..SRF198510-198808

SILVER,SILVER

sub75981-95706

main75983-95714iKM30..STD198805-198806

BLUE-M(8D7)

75973STRIPE, SIDE, RH NO.2

main75985-95722-01iKM30198510-198808

BLACK,BLACK

main75985-95722-03iKM30198510-198808

SILVER,SILVER

main75985-95730iKM30..STD198805-198806

BLUE-M(8D7)

75974STRIPE, CENTER PILLAR, LH NO.2

main75986-95722-01iKM36..SRF198510-198808

BLACK,BLACK

main75986-95722-03iKM30198510-198808

SILVER,SILVER

main75986-95730iKM30..STD198805-198806

BLUE-M(8D7)

75975STRIPE, SIDE, RH UPR NO.3

main75941-95704iKM30..STD198805-198806

BLUE-M(8D7)

main75987-95701-01iKM36..SRF198510-198808

BLACK,BLACK

main75987-95701-03iKM30198510-198808

SILVER,SILVER

75976STRIPE, SIDE, LH UPR

main75988-95725-01iKM36..SRF198607-198808

BLACK,BLACK

main75988-95725-03iKM36..SRF198607-198808

SILVER,SILVER

main75992-95723-01iKM30198510-198808

BLACK,BLACK

main75992-95723-03iKM30198510-198808

SILVER,SILVER

main75992-95730iKM30..STD198805-198806

BLUE-M(8D7)

75977STRIPE, SIDE, RH NO.4

main75983-95704-01iKM36..SRF198510-198808

BLACK,BLACK

main75983-95704-03iKM36..SRF198510-198808

SILVER,SILVER

main75983-95706iKM30..STD198805-198806

BLUE-M(8D7)

76971STRIPE, SIDE, RH NO.5

main75991-95722-01iKM36..SRF198510-198808

BLACK,BLACK

main75991-95722-03iKM30198510-198808

SILVER,SILVER

main75991-95729iKM30..STD198805-198806

BLUE-M(8D7)

8 parts on this diagram · 3 diagrams in section
