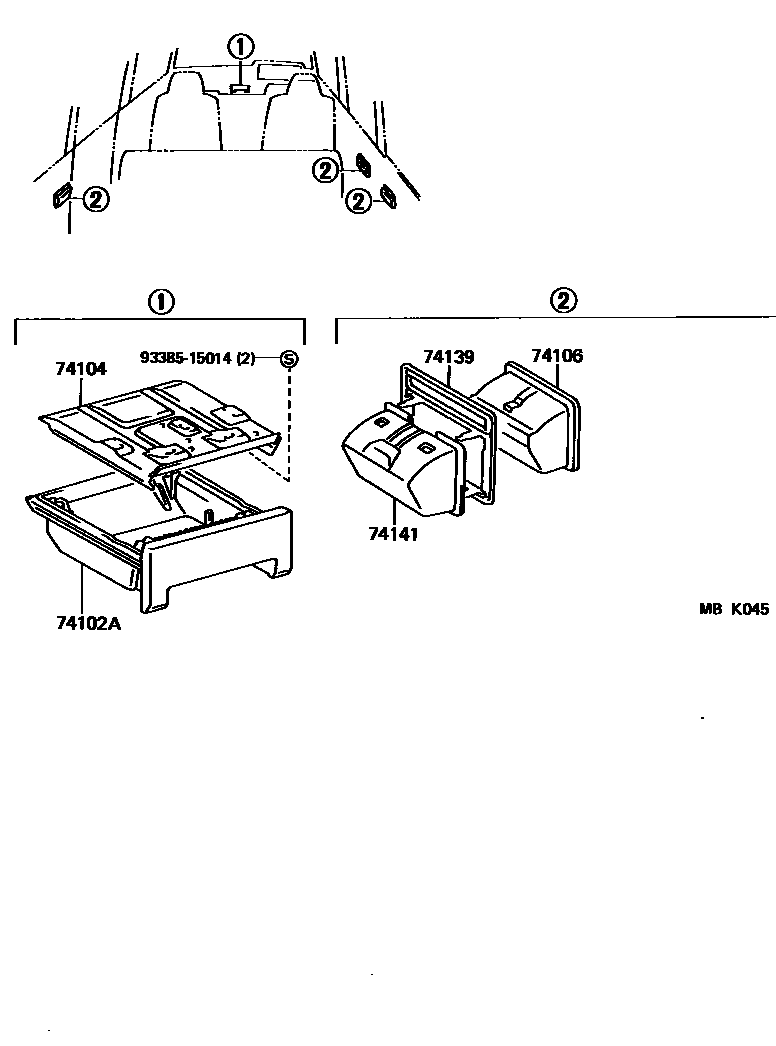

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-95702-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

sub74102-95703

sub74102-95702

main74102-95702-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

sub74102-95703

sub74102-95702

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-95710iCM35,KM3#198510-198808

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74105-10010-26iCM35,KM31,36..05S198510-198808

BROWN,BROWN,TRIM4#

sub74105-10010

main74105-10010-34iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

sub74105-10010

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-10030iCM35,KM31,36..05S198510-198808

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030iCM35,KM31,36..05S198510-198808

9338515014

main93385-15014

6 parts on this diagram · 1 diagram in section
