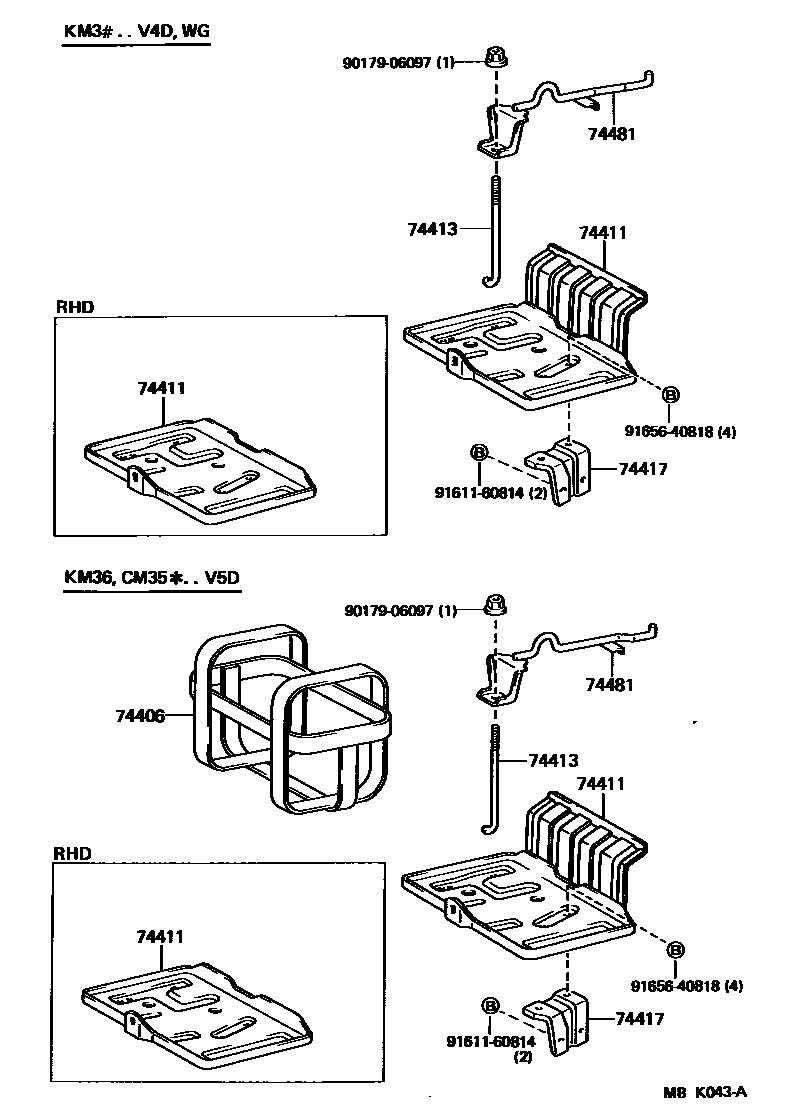

BATTERY CARRIER

74406BELT SUB-ASSY, BATTERY

main74446-95702iCM35198510-198808

74411CARRIER, BATTERY

main74410-95709iCM35,KM3#..LHD198510-198808

main74410-95710iCM35..LHD198510-198711

NX120-7

sub74410-95713

main74410-95712iCM35..RHD198711-198808

NX120-7

main74410-95713iCM35..LHD198711-198808

NX120-7

main74411-95710iCM35,KM36..RHD198510-198808

main74411-95711iCM35..RHD198510-198711

NX120-7

sub74410-95712

74413BOLT, BATTERY CLAMP

main74451-95704iCM35,KM3#198510-198701

sub74451-95J00

main74451-95J00iCM35,KM3#198701-198808

74417BRACKET, BATTERY CARRIER

main74417-95704iCM35,KM3#198510-198808

74481CLAMP, BATTERY HOLD DOWN

main74404-95703iKM3#198510-198808

main74404-95704iCM35198510-198808

main74404-95705iCM35198510-198808

NX120-7

9017906097

main90179-06097

9161160814

main91611-60814

9165640818

main91656-40818

8 parts on this diagram · 1 diagram in section
