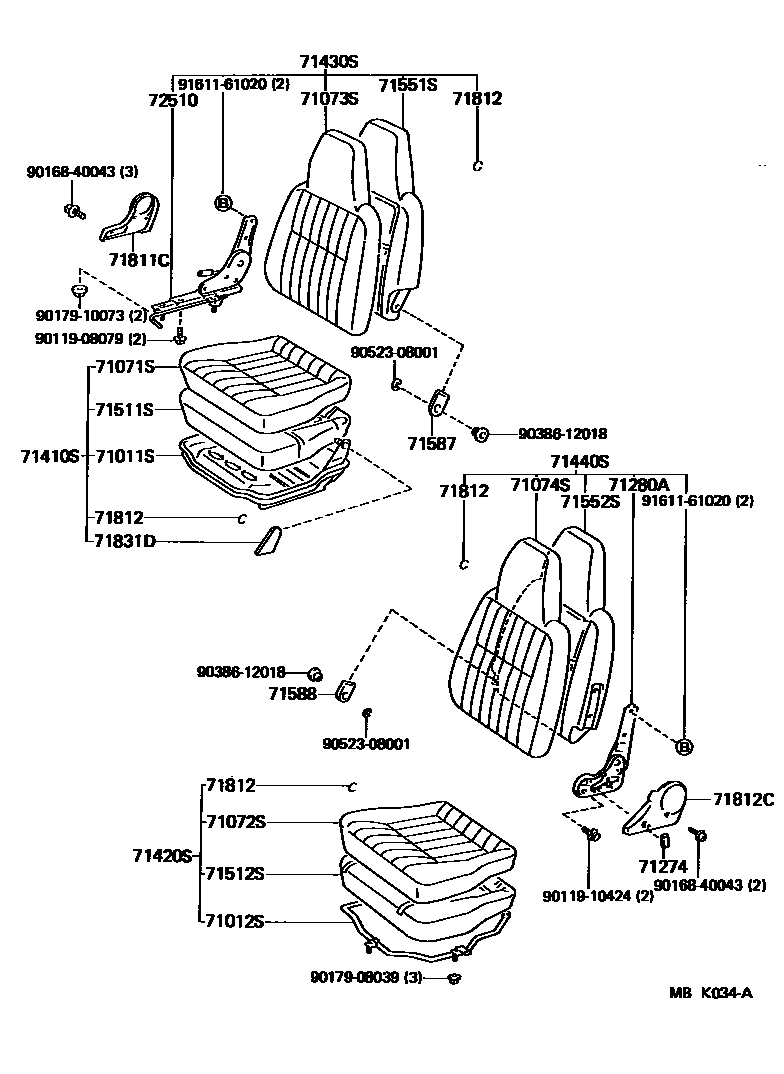

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-95706iCM35,KM3#¥10,700198510-198808

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-95705iCM35,KM36..RHD¥2,690198510-198808

main71012-95706iCM35,KM3#..LHD¥9,900198510-198808

sub71012-95709

main71012-95708iCM35,KM36..LHD..5F..02S198708-198808

DENMARK SPEC

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-95717-06iCM35,KM3#..STD198510-198808

PF,BROWN,BROWN,TRIM4#

sub71071-95724¥7,600

main71071-95721-04iKM30..DLX198510-198808

FB,BLUE,BLUE,TRIM8#

sub71071-95723

main71071-95721-06iCM35,KM36..LHD..MRF..(4F,5F)..02S198510-198808

FB,BROWN,BROWN,TRIM4#

sub71071-95723

main71071-95722-06iCM35,KM36..4H,5H198510-198808

FINLAND SPEC,PF,BROWN,BROWN,TRIM4#

main71071-95723-06iCM35,KM36..4H,5H198510-198808

FINLAND SPEC,FB,BROWN,BROWN,TRIM4#

main71071-95732-04iKM30..STD198805-198806

BLUE-M(8D7),FB,BLUE,BLUE,TRIM8#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-95718-06iCM35,KM36..RHD198510-198808

PF,BROWN,BROWN,TRIM4#

sub71072-95734

main71072-95730-04iKM30..DLX198510-198708

FB,BLUE,BLUE,TRIM8#

main71072-95730-06iKM30198510-198708

FB,BROWN,BROWN,TRIM4#

main71072-95731-06iCM35,KM3#..LHD..STD198510-198708

PF,BROWN,BROWN,TRIM4#

main71072-95733-06iCM35,KM36..4H,5H198510-198708

FINLAND SPEC,FB,BROWN,BROWN,TRIM4#

main71072-95747-06iCM35,KM36..LHD..5F..02S198708-198808

DENMARK SPEC,FB,BROWN,BROWN,TRIM4#

main71072-95750-04iKM30..DLX198708-198808

FB,BLUE,BLUE,TRIM8#

sub71072-95752

main71072-95750-06iCM35,KM36..LHD..MRF..(4F,5F)..02S198708-198808

FB,BROWN,BROWN,TRIM4#

sub71072-95752

main71072-95751-06iCM35,KM3#..LHD..STD198708-198808

PF,BROWN,BROWN,TRIM4#

main71072-95752-06iCM35,KM36..4H,5H198708-198808

FINLAND SPEC,FB,BROWN,BROWN,TRIM4#

main71072-95753-04iKM30..STD198805-198806

BLUE-M(8D7),FB,BLUE,BLUE,TRIM8#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-95715-06iCM35,KM36..RHD198510-198808

PF,BROWN,BROWN,TRIM4#

sub71073-95726

main71073-95717-06iCM35,KM3#..LHD..STD198510-198808

PF,BROWN,BROWN,TRIM4#

main71073-95721-04iKM30..DLX198510-198808

FB,W/*HR,BLUE,BLUE,TRIM8#

sub71073-95725

main71073-95721-06iKM36..5F..05S198510-198808

FB,W/*HR,BROWN,BROWN,TRIM4#

sub71073-95725

main71073-95722-06iCM35,KM3#..LHD..STD198510-198808

PF,W/*HR,BROWN,BROWN,TRIM4#

main71073-95724-06iKM30..STD198510-198808

FB,BROWN,BROWN,TRIM4#

main71073-95725-06iCM35,KM36..4H,5H198510-198808

FINLAND SPEC,FB,BROWN,BROWN,TRIM4#

main71073-95735-04iKM30..STD198805-198806

BLUE-M(8D7),FB,BLUE,BLUE,TRIM8#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-95716-06iCM35,KM36..RHD198510-198808

PF,BROWN,BROWN,TRIM4#

sub71074-95733

main71074-95726-06iCM35,KM3#..LHD..STD198510-198808

PF,BROWN,BROWN,TRIM4#

main71074-95727-04iKM30..DLX198510-198808

FB,W/*HR,BLUE,BLUE,TRIM8#

sub71074-95732

main71074-95727-06iCM35,KM36..LHD..MRF..(4F,5F)..02S198510-198808

FB,W/*HR,BROWN,BROWN,TRIM4#

sub71074-95732

main71074-95728-06iCM35,KM3#..LHD..STD198510-198808

PF,W/*HR,BROWN,BROWN,TRIM4#

main71074-95731-06iKM30..STD198510-198808

FB,BROWN,BROWN,TRIM4#

main71074-95732-06iCM35,KM36..4H,5H198510-198808

FINLAND SPEC,FB,BROWN,BROWN,TRIM4#

main71074-95742-04iKM30..STD198805-198806

BLUE-M(8D7),FB,BLUE,BLUE,TRIM8#

main71074-95743-06iCM35,KM36..LHD..5F..02S198708-198808

DENMARK SPEC,FB,BROWN,BROWN,TRIM4#

main71074-95744-06iCM35,KM36..LHD..5F..02S198708-198808

DENMARK SPEC,FB,W/*HR,BROWN,BROWN,TRIM4#

71274KNOB, FRONT SEAT HINGE

main71274-95J00-16iCM35,KM36..RHD198510-198608

BROWN,BROWN,TRIM4#

sub71274-95J00¥300

71280AHINGE ASSY, FRONT SEATBACK, LH

main71320-95701-06iCM35,KM36..RHD198510-198808

BROWN,BROWN,TRIM4#

sub71320-95701¥6,300

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-95769-06iCM35,KM3#..STD198510-198808

PF,BROWN,BROWN,TRIM4#

sub71410-95776

main71410-95773-04iKM30..DLX198510-198808

FB,BLUE,BLUE,TRIM8#

sub71410-95775

main71410-95773-06iKM30198510-198808

FB,BROWN,BROWN,TRIM4#

sub71410-95775

main71410-95774-06iCM35,KM36..4H,5H198510-198808

FINLAND SPEC,PF,BROWN,BROWN,TRIM4#

main71410-95775-06iCM35,KM36..4H,5H198510-198808

FINLAND SPEC,FB,BROWN,BROWN,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-95720-06iCM35,KM36..RHD198510-198808

PF,BROWN,BROWN,TRIM4#

sub71420-95731

main71420-95727-04iKM30..DLX198510-198708

FB,BLUE,BLUE,TRIM8#

main71420-95727-06iKM30198510-198708

FB,BROWN,BROWN,TRIM4#

main71420-95728-06iCM35,KM3#..LHD..STD198510-198708

PF,BROWN,BROWN,TRIM4#

main71420-95730-06iCM35,KM36..4H,5H198510-198708

FINLAND SPEC,FB,BROWN,BROWN,TRIM4#

main71420-95744-06iCM35,KM36..LHD..5F..02S198708-198808

DENMARK SPEC,FB,BROWN,BROWN,TRIM4#

main71420-95747-04iKM30..DLX198708-198808

FB,BLUE,BLUE,TRIM8#

sub71420-95749

main71420-95747-06iKM30198708-198808

FB,BROWN,BROWN,TRIM4#

sub71420-95749

main71420-95748-06iCM35,KM3#..LHD..STD198708-198808

PF,BROWN,BROWN,TRIM4#

main71420-95749-06iCM35,KM36..4H,5H198708-198808

FINLAND SPEC,FB,BROWN,BROWN,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-95723-06iCM35,KM36..RHD198510-198808

PF,BROWN,BROWN,TRIM4#

main71430-95726-06iCM35,KM3#..LHD..STD198510-198808

PF,BROWN,BROWN,TRIM4#

main71430-95730-04iKM30..DLX198510-198808

FB,W/*HR,BLUE,BLUE,TRIM8#

main71430-95730-06iKM36..5F..05S198510-198808

FB,W/*HR,BROWN,BROWN,TRIM4#

main71430-95731-06iCM35,KM3#..LHD..STD198510-198808

PF,W/*HR,BROWN,BROWN,TRIM4#

main71430-95733-06iKM30..STD198510-198808

FB,BROWN,BROWN,TRIM4#

main71430-95734-06iCM35,KM36..4H,5H198510-198808

FINLAND SPEC,FB,BROWN,BROWN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-95724-06iCM35,KM36..RHD198510-198808

PF,BROWN,BROWN,TRIM4#

main71440-95734-06iCM35,KM3#..LHD..STD198510-198808

PF,BROWN,BROWN,TRIM4#

main71440-95735-04iKM30..DLX198510-198808

FB,W/*HR,BLUE,BLUE,TRIM8#

main71440-95735-06iKM36..5F..05S198510-198808

FB,W/*HR,BROWN,BROWN,TRIM4#

main71440-95736-06iCM35,KM3#..LHD..STD198510-198808

PF,W/*HR,BROWN,BROWN,TRIM4#

main71440-95739-06iKM30..STD198510-198808

FB,BROWN,BROWN,TRIM4#

main71440-95740-06iCM35,KM36..4H,5H198510-198808

FINLAND SPEC,FB,BROWN,BROWN,TRIM4#

main71440-95753-06iCM35,KM36..LHD..5F..02S198708-198808

DENMARK SPEC,BROWN,BROWN,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-95701iCM35,KM3#¥18,200198510-198808

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-95702iCM35,KM36..RHD¥18,200198510-198808

main71512-95704iCM35,KM3#..LHD¥14,300198510-198708

main71512-95705iCM35,KM3#..LHD¥18,200198708-198808

main71512-95706iCM35,KM36..LHD..5F..02S¥18,100198708-198808

DENMARK SPEC

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-95702iCM35,KM36..RHD¥21,900198510-198808

sub71505-95705¥21,900

main71505-95703iCM35,KM3#..LHD¥24,900198510-198808

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71506-95702iCM35,KM36..RHD¥21,900198510-198808

main71506-95706iCM35,KM3#..LHD¥21,900198510-198808

sub71506-95703¥24,900

main71506-95708iCM35,KM36..LHD..5F..02S¥23,600198708-198808

DENMARK SPEC

71587PROTECTOR, FRONT SEATBACK EDGE

main71588-95700-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

sub71588-95700¥460

main71588-95700-06iCM35,KM36..RHD198510-198808

BROWN,BROWN,TRIM4#

sub71588-95700¥460

71588PROTECTOR, FRONT SEATBACK EDGE, NO.2

main71588-95700-06iCM35,KM36..RHD198510-198808

BROWN,BROWN,TRIM4#

sub71588-95700¥460

71811CCOVER, RECLINING ADJUSTER, RH

main71801-95700-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

sub71801-95701¥2,520

sub71801-95700¥2,290

main71801-95700-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

sub71801-95701¥2,520

sub71801-95700¥2,290

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main90468-18071iCM35,KM3#¥160198510-198808

sub90468-18008¥80

71812CCOVER, RECLINING ADJUSTER, LH

main71802-95700-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

sub71802-95700¥2,290

main71802-95700-06iCM35,KM3#..LHD198510-198808

BROWN,BROWN,TRIM4#

sub71802-95700¥2,290

main71812-95700-06iCM35,KM36..RHD198510-198808

BROWN,BROWN,TRIM4#

sub71812-95700¥2,500

71831DCOVER, FRONT SEAT HINGE, RH

main71831-95700-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

sub71831-95700¥810

main71831-95700-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

sub71831-95700¥810

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-95708-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

sub72510-95708¥20,100

main72510-95708-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

sub72510-95708¥20,100

9011908079

main90119-08079¥120

9011910424

main90119-10424¥160

9016840043

main90168-40043¥80

9017908039

main90179-08039¥90

9017910073

main90179-10073¥160

9038612018

main90386-12018¥210

9052308001

main90523-08001¥160

9161161020

main91611-61020¥240

31 parts on this diagram · 6 diagrams in section
