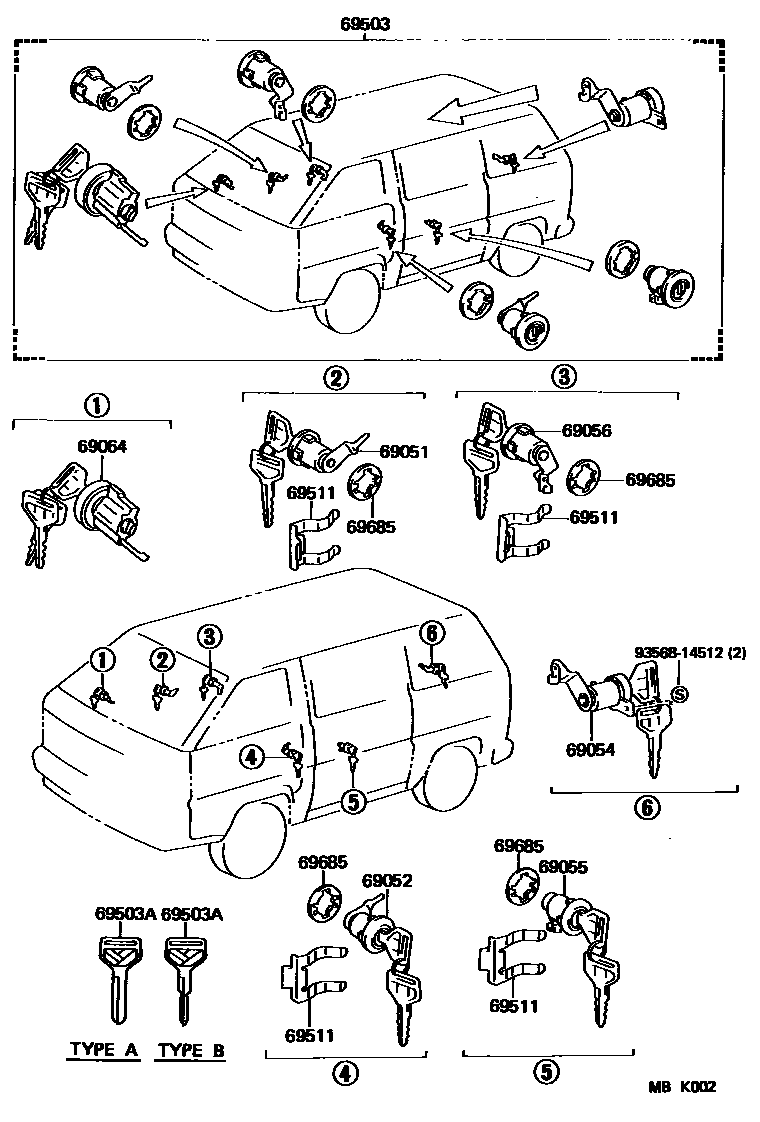

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95704iKM31198510-198808

*FRG

sub69051-95718

main69051-95705iCM35,KM3#198510-198808

sub69051-95716

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95704iKM31198510-198808

*FRG

sub69052-95717

main69052-95705iCM35,KM3#198510-198808

sub69052-95716

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-95710iKM31198510-198808

*FRG

sub69055-95714

main69055-95711iCM35,KM3#198510-198808

sub69055-95713

69055CYLINDER & KEY SET, REAR DOOR LOCK, LH

main69054-95707iKM36..SRF;CM35,KM36..RHD198510-198808

sub69054-95710

69056CYLINDER & KEY SET, REAR DOOR LOCK, RH

main69053-95705iKM30198510-198808

*FRG

sub69053-95711

main69053-95707iCM35,KM3#..LHD198510-198808

sub69053-95710

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-89109iCM35,KM3#..4F,5F198510-198608

sub69057-95708

main69057-95708iKM36..LHD..MRF..02S198510-198709

*FRG

main69057-95710iCM35,KM36..4H,5H198510-198608

sub69057-95714

main69057-95713iCM35,KM3#..4F,5F198608-198709

sub69057-95708

main69057-95714iCM35,KM36..4H,5H198608-198709

main69057-95715iKM36..LHD..MRF..02S198709-198808

*FRG

main69057-95719iCM35,KM3#..4F,5F198709-198808

sub69057-95715

main69057-95720iCM35,KM36..4H,5H198709-198808

69503CYLINDER SET, LOCK

main69503-95747iKM36..LHD..MRF..02S198510-198709

*FRG

main69503-95748iCM35,KM36..RHD198510-198608

main69503-95749iCM35,KM3#..LHD..MRF..(4F,5F)198510-198608

sub69503-95747

main69503-95750iCM35,KM36..4H,5H198510-198608

main69503-95751iKM36..SRF198510-198608

main69503-95762iCM35,KM3#..LHD..MRF..(4F,5F)198608-198709

main69503-95763iCM35,KM36..4H,5H198608-198709

main69503-95764iCM35,KM36..RHD198608-198709

main69503-95765iKM36..SRF198608-198709

main69503-95766iKM30198709-198808

*FRG

sub69503-95782

main69503-95775iCM35,KM3#..LHD..MRF..(4F,5F)198709-198808

sub69503-95G01

main69503-95776iCM35,KM36..4H,5H198709-198808

sub69503-95G02

main69503-95777iCM35,KM36..RHD198709-198808

sub69503-95G03

main69503-95778iKM36..SRF198709-198808

sub69503-95G04

69503AKEY, BLANK

main90999-00084iKM36..LHD..MRF..02S198510-198808

MASTER KEY,W(*68),*FRG,TYPE A

sub90999-00214

main90999-00084iCM35,KM3#198608-198808

MASTER KEY,W(*68),W/PROTECTOR

sub90999-00214

main90999-00086iCM35,KM3#198510-198808

MASTER KEY,TYPE A

main90999-00091iCM35,KM3#198510-198808

MASTER KEY,W(*70),TYPE B

sub90999-00086

main90999-00092iKM31198510-198808

MSTER KEY,W(*69),*FRG,TYPE B

sub90999-00084

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400iKM36..SRF198510-198808

69685PAD, LOCK CYLINDER

main69513-32010iKM36..SRF198510-198808

9356814512

main93568-14512

11 parts on this diagram · 1 diagram in section
