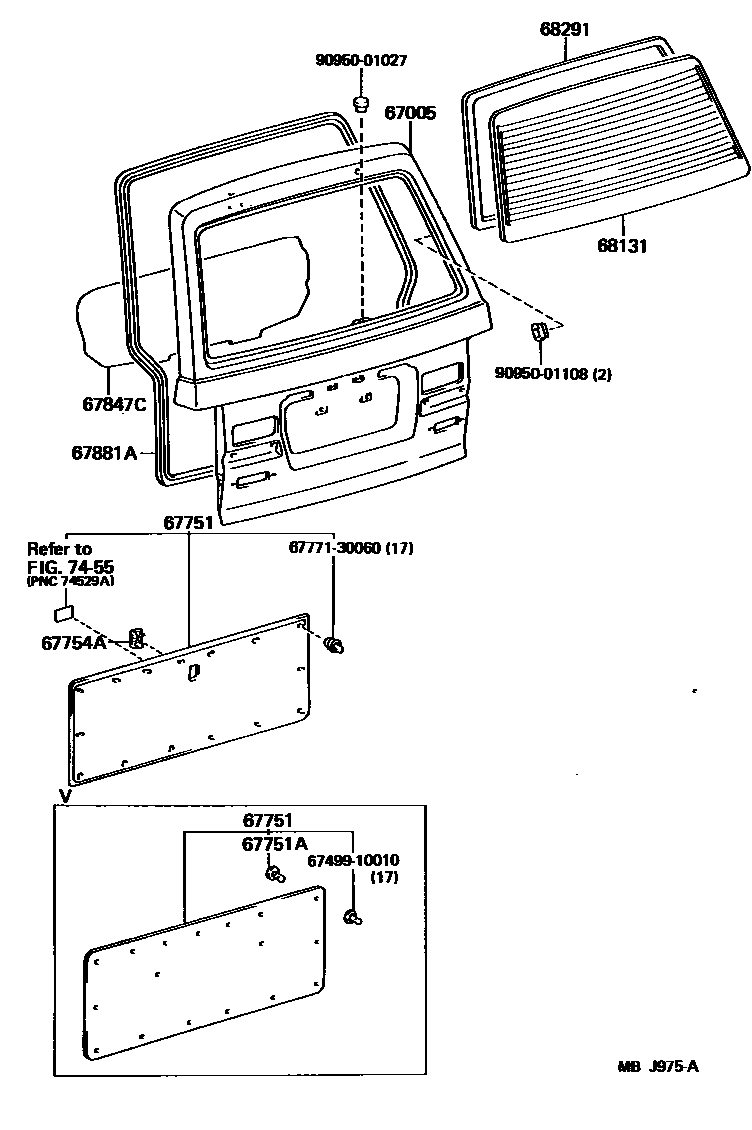

BACK DOOR PANEL & GLASS

67005PANEL SUB-ASSY, BACK DOOR

main67005-95772iKM36..SRF198510-198808

W/RR FOG LAMP & RR WIPER

main67005-95774iKM30198510-198608

W/RR FOG LAMP & RR WIPER

main67005-95774iCM35,KM31,36..MRF198510-198608

W/RR FOG LAMP

main67005-95774iCM35,KM36..LHD..MRF198608-198808

W/RR WIPER

main67005-95776iKM36..SRF198510-198808

W/RR FOG LAMP

main67005-95778iCM35,KM36..LHD..MRF198608-198808

main67005-95778iCM35,KM31,36..LHD..MRF198510-198608

W/RR FOG LAMP

main67005-95780iCM35,KM36..RHD198608-198808

W/RR WIPER

main67005-95782iCM35,KM36..RHD198510-198808

W/RR FOG LAMP

main67005-95786iKM36..SRF198510-198608

W/RR WIPER

main67005-95G00iKM30198510-198608

W/RR WIPER

main67005-95G04iKM36..SRF198510-198608

main67005-95G08iCM35,KM31,36..MRF198510-198608

67751BOARD, BACK DOOR TRIM

main67750-95701-06iCM35,KM31,36198510-198808

W/EMERGENCY LEVER,BROWN,SABLE,TRIM4#

main67750-95702-06iCM35,KM31,36198510-198808

BROWN,SABLE,TRIM4#

main67750-95704-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

sub67750-95704

main67750-95704-06iKM30198510-198808

BROWN,BROWN,TRIM4#

sub67750-95704

main67750-95705-06iCM35,KM31,36198510-198808

W/*RW & EMERGENCY LEVER,BROWN,BROWN,TRIM4#

sub67750-95705

main67750-95706-06iCM35,KM31,36198510-198808

W/*RW,BROWN,BROWN,TRIM4#

sub67750-95706

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-07037-16iCM35,KM31,36198510-198610

BROWN,BROWN,TRIM4#

sub90467-07037

sub90467-07054

main90467-07054-06iCM35,KM36198610-198808

BROWN,SABLE,TRIM4#

sub90467-07054

67754ACOVER, BACK DOOR HOLE

main55528-30020-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

sub55528-30020

main55528-30020-24iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

sub55528-30020

67847CCOVER, BACK DOOR SERVICE HOLE, NO.1

main67847-95700iCM35,KM3#198510-198808

W/RR WIPER

main67847-95701iCM35,KM31,36198510-198808

67881AWEATHERSTRIP, BACK DOOR

main67881-95702iKM36..SRF198510-198808

sub67881-95704

main67881-95703iCM35,KM3#..MRF198510-198808

sub67881-95705

68131GLASS, BACK DOOR

main68131-95712iKM36..SRF198510-198808

*EHT,T=4.0,*EHT,T=4.0

main68131-95714iKM36..SRF198510-198808

*TEM,T=4.0,*TEM,T=4.0

sub68131-95715

main68131-95716iCM35,KM3#..MRF198510-198808

*EHT,T=4.0,*EHT,T=4.0

main68131-95719iCM35,KM3#..MRF198510-198808

*TEM,T=4.0,*TEM,T=4.0

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-95706iKM36..SRF198510-198808

main68291-95708iCM35,KM3#..MRF198510-198808

7455

6749910010RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-10010

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9095001027

main90950-01027

9095001108

main90950-01108

13 parts on this diagram · 1 diagram in section
