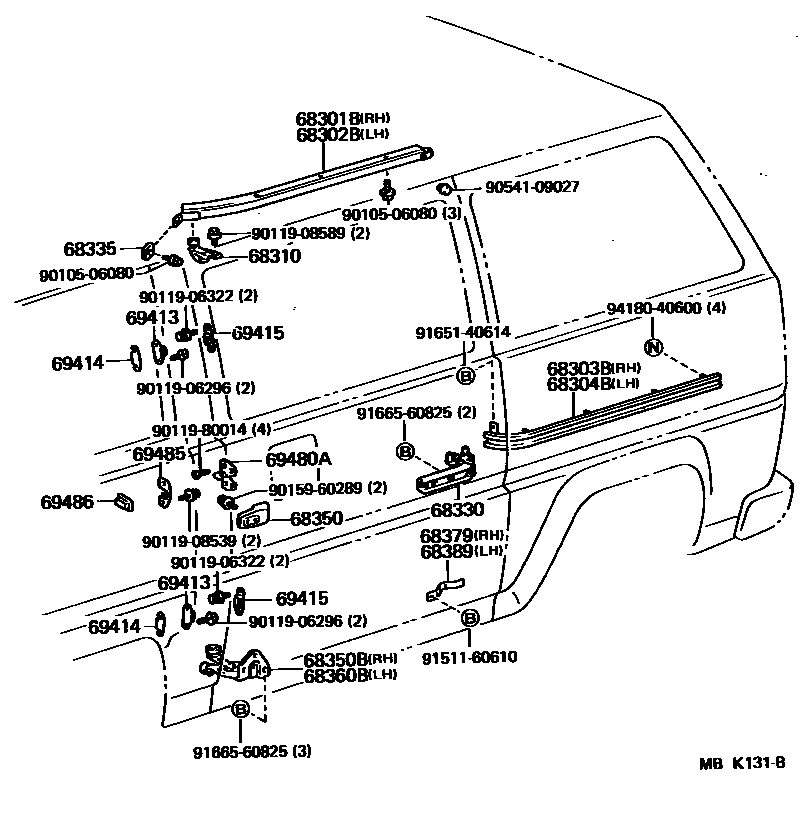

SLIDE ROLLER & RAIL

68301BRAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-95701iCM35,KM3#..LHD¥3,710198510-198808

68302BRAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-95701iKM36..SRF;CM35,KM36..RHD¥3,710198510-198808

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-95702iCM35,KM3#..LHD¥9,100198510-198808

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-95702iKM36..SRF;CM35,KM36..RHD¥9,100198510-198808

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-95702iCM35,KM3#..MRF¥1,970198510-198808

sub68310-95703¥2,090

68330ROLLER ASSY, SLIDE DOOR, CENTER

main68330-95703iCM35,KM3#..LHD¥6,700198510-198808

RH

sub68330-95704¥6,700

main68340-95703iKM36..SRF;CM35,KM36..RHD¥6,700198510-198808

LH

sub68340-95704¥6,700

68335PAD, SLIDE DOOR UPPER RAIL

main68335-95702iCM35,KM3#..MRF¥450198510-198808

68350STOPPER ASSY, SLIDE DOOR OPEN

main69418-87003iCM35,KM3#..MRF¥2,500198510-198808

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-95703iCM35,KM3#..LHD¥6,100198510-198808

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-95703iKM36..SRF;CM35,KM36..RHD¥6,100198510-198808

68379SPRING, SLIDE DOOR CATCH, RH

main68379-95700iCM35,KM3#..LHD¥880198510-198808

68389SPRING, SLIDE DOOR CATCH, LH

main68389-95700iKM36..SRF;CM35,KM36..RHD¥880198510-198808

69413STOP, SLIDE DOOR DOWN MALE

main69416-95701iCM35,KM3#..MRF¥600198510-198808

69414SHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iCM35,KM3#..MRF¥130198510-198808

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-87001iCM35,KM3#..MRF¥1,470198510-198808

69480AHOOK ASSY, SLIDE DOOR FRONT LOCK

main69480-95701iCM35,KM3#..05S,08S¥1,190198510-198808

69485BRACKET, SLIDE DOOR FRONT LOCK STRIKER

main69485-95701iCM35,KM3#..05S,08S¥660198510-198808

69486COVER, SLIDE DOOR FRONT LOCK STRIKER

main69486-95701iCM35,KM3#..05S,08S¥380198510-198808

9010506080

main90105-06080¥130

9011906296

main90119-06296¥130

9011906322

main90119-06322¥130

9011908539

main90119-08539¥90

9011908589

main90119-08589¥120

9011980014

main90119-80014

9015960289

main90159-60289¥70

9054109027

main90541-09027¥240

9151160610

main91511-60610¥120

9165140614

main91651-40614¥160

9166560825

main91665-60825¥170

9418040600

main94180-40600¥90

30 parts on this diagram · 1 diagram in section
