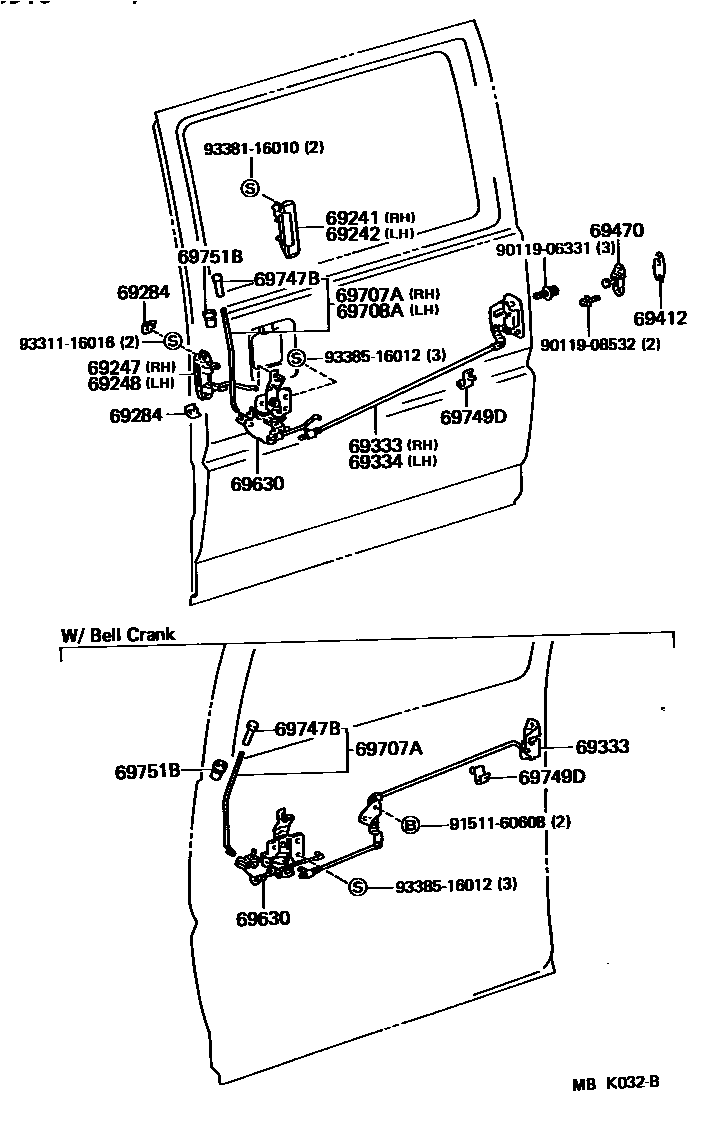

REAR DOOR LOCK & HANDLE

69241HANDLE ASSY, SLIDE DOOR OUTSIDE, RH

main69230-87003iCM35,KM3#..LHD198510-198802

main69230-95J00iCM35,KM3#..LHD198802-198808

69242HANDLE ASSY, SLIDE DOOR OUTSIDE, LH

main69240-87002iKM36..SRF;CM35,KM36..RHD198510-198802

main69240-95J00iKM36..SRF;CM35,KM36..RHD198802-198808

69247HANDLE, SLIDE DOOR INSIDE, RH

main69070-95700-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main69070-95700-06iCM35,KM3#..LHD198510-198808

BROWN,BROWN,TRIM4#

69248HANDLE, SLIDE DOOR INSIDE, LH

main69080-95700-06iKM36..SRF;CM35,KM36..RHD198510-198808

BROWN,BROWN,TRIM4#

sub69080-95700

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-87001-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main69284-87001-06iCM35,KM3#..MRF198510-198808

BROWN,BROWN,TRIM4#

69333LOCK ASSY, SLIDE DOOR, RH

main69330-95702iCM35,KM36..LHD..02S198510-198808

W/O RR SEAT

main69330-95703iCM35,KM3#..05S,08S198510-198808

69334LOCK ASSY, SLIDE DOOR, LH

main69340-95702iKM36..SRF;CM35,KM36..RHD198510-198808

69412SHIM, DOOR LOCK STRIKER

main69413-87002iCM35,KM3#198510-198808

sub69413-28020

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-95701iCM35,KM3#..MRF198510-198808

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-95706iCM35,KM3#198510-198808

RH

main69640-95707iKM36..SRF;CM35,KM36..RHD198510-198808

LH

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-95700-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

main69707-95700-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-95700-06iKM36..SRF;CM35,KM36..RHD198510-198808

BROWN

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-95703-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

sub69741-95703

main69741-95703-06iKM36..SRF198510-198808

BROWN,BROWN,TRIM4#

sub69741-95703

69749DCLAMP, SLIDE DOOR LOCK LINK

main69749-20010iCM35,KM3#198510-198808

W/RR SEAT

main69749-95700iCM35,KM3#..MRF198510-198808

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-95701-04iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

sub69751-95701

main69751-95701-06iKM36..SRF198510-198808

BROWN,BROWN,TRIM4#

sub69751-95701

9011906331

main90119-06331

9011908532

main90119-08532

9151160608

main91511-60608

9331116016

main93311-16016

9338116010

main93381-16010

9338516012

main93385-16012

21 parts on this diagram · 1 diagram in section
