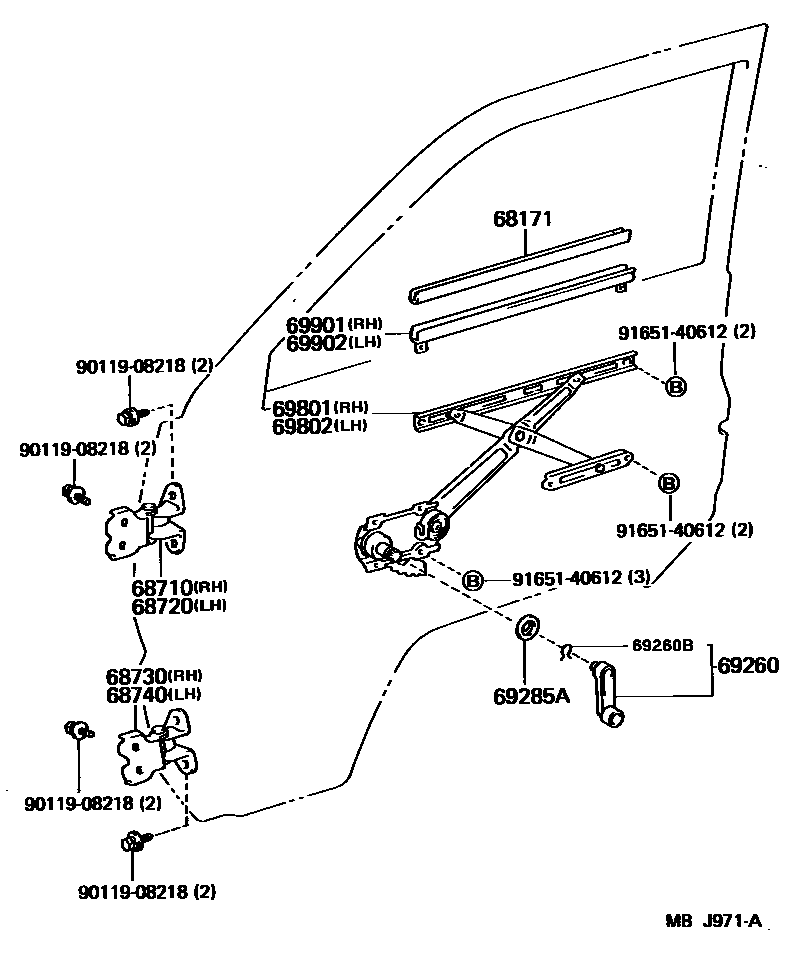

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020iCM35,KM3#198510-198808

sub69971-22010

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95702iCM35,KM3#198510-198808

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95702iCM35,KM3#198510-198808

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-95702iCM35,KM3#198510-198808

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95702iCM35,KM3#198510-198808

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14030-06iCM35,KM3#198510-198808

BROWN,BROWN,TRIM4#

sub69260-14030

main69260-14030-20iKM30..DLX198510-198808

BLUE,BLUE,TRIM8#

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iCM35,KM3#198510-198808

sub90520-01274

69285APLATE, DOOR VENT WINDOW CONTROL HANDLE

main69285-22010-08iCM35,KM3#198510-198808

NATURAL,NATURAL WHITE

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95704iCM35,KM3#198510-198808

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95704iCM35,KM3#198510-198808

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-87002iCM35,KM3#198510-198808

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-87002iCM35,KM3#198510-198808

9011908218

main90119-08218

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section
