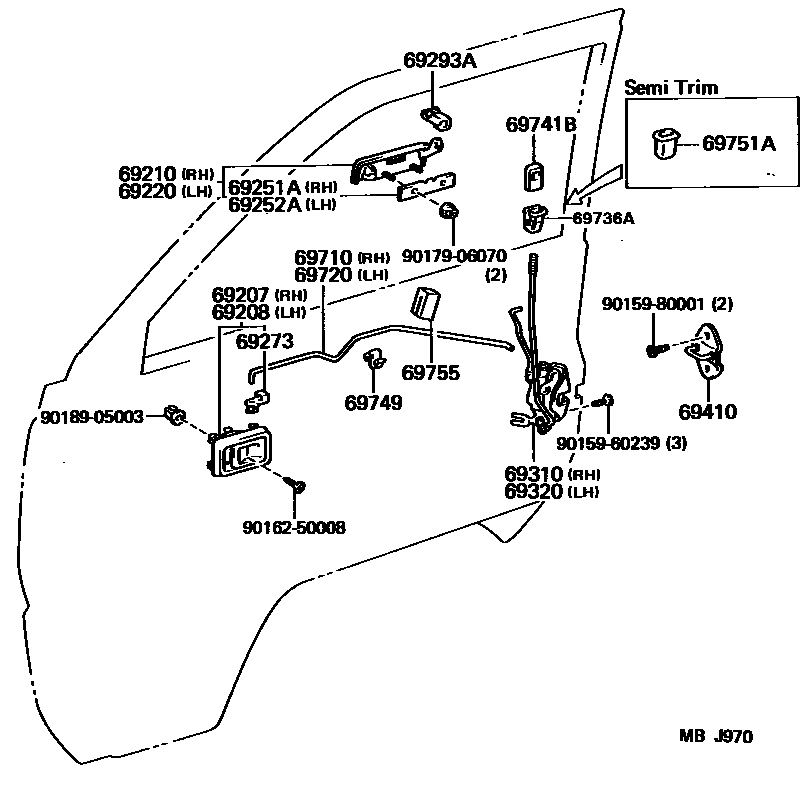

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
sub69210-95702
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
sub69220-95702
69251APAD, FRONT DOOR OUTSIDE HANDLE, NO.1 RH
69252APAD, FRONT DOOR OUTSIDE HANDLE, NO.1 LH
69273SNAP, DOOR INSIDE HANDLE ROD
RH
LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69736AGUIDE, FRONT DOOR LOCK LINK
69741BKNOB, FRONT DOOR LOCK CONTROL
69749CLAMP, FRONT DOOR LOCK LINK
69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)
69755SILENCER, FRONT DOOR LOCK LINK
9015960239
main90159-60239
9015980001
main90159-80001
9016250008
main90162-50008
9017906070
main90179-06070
9018905003
main90189-05003
23 parts on this diagram · 1 diagram in section
