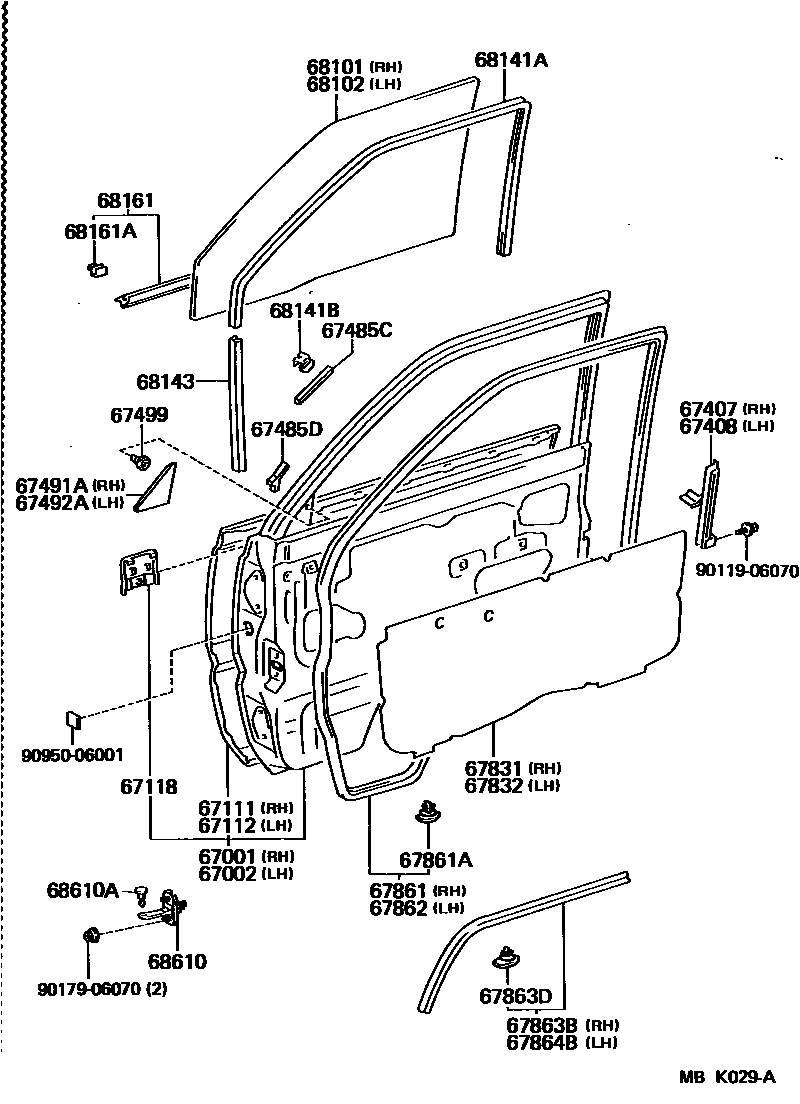

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
W/FR PILLAR GARNISH
67002PANEL SUB-ASSY, FRONT DOOR, LH
W/FR PILLAR GARNISH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67118RETAINER, OUTER MIRROR
RH
67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67485CSEAL, FRONT DOOR BRACKET, NO.1
67485DSEAL, FRONT DOOR BRACKET, NO.2
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67831COVER, FRONT DOOR SERVICE HOLE, RH
W/SPEAKER
67832COVER, FRONT DOOR SERVICE HOLE, LH
W/SPEAKER
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
LH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
LH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141ARUN, FRONT DOOR GLASS, UPPER
68141BCLIP, DOOR GLASS RUN
68143RUN, FRONT DOOR GLASS, LOWER
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
9011906070
9017906070
9095006001
32 parts on this diagram · 3 diagrams in section
