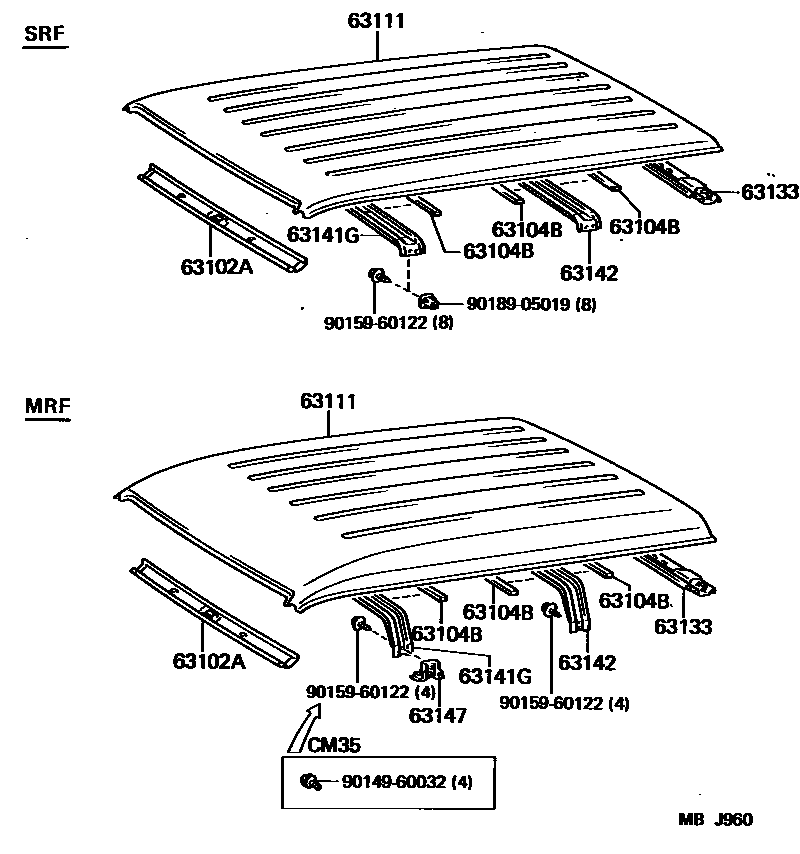

ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95706iCM35,KM3#..STD198510-198808

main63102-95707iKM30..DLX198510-198808

63104BCUSHION, ROOF TO ROOF REINFORCEMENT

main63147-95A00iCM35,KM3#..STD..(05S,08S)198510-198603

sub63357-95701

main63357-95700iCM35,KM3#..STD..(05S,08S)198602-198603

sub63357-95701

main63357-95701iCM35,KM3#..STD..(05S,08S)198603-198808

63111PANEL, ROOF

main63111-95710iKM36..SRF198510-198808

main63111-95712iCM35,KM3#..MRF198510-198808

63133FRAME, BACK WINDOW OPENING, UPPER

main63071-95703iCM35,KM3#..STD198510-198808

main63071-95704iKM30..DLX198510-198808

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-95706iKM30..DLX198510-198808

main63103-95707iCM35,KM31,36..LHD..MRF198510-198807

W/NET SEPARATOR

main63103-95712iKM36..4F..05S198604-198808

W/BOARD SEPARATOR

main63103-95712iCM35,KM36..LHD..MRF198807-198808

W/NET SEPARATOR

main63141-95710iCM35,KM3#..MRF..STD198510-198808

main63142-95703iKM36..SRF198510-198808

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95703iKM36..SRF198510-198808

main63142-95705iCM35,KM3#..MRF198510-198808

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-95703iCM35,KM3#..LHD..MRF198510-198808

RH

main63148-95701iCM35,KM36..RHD198510-198808

LH

9014960032

main90149-60032

9015960122

main90159-60122

9018905019

main90189-05019

10 parts on this diagram · 1 diagram in section
