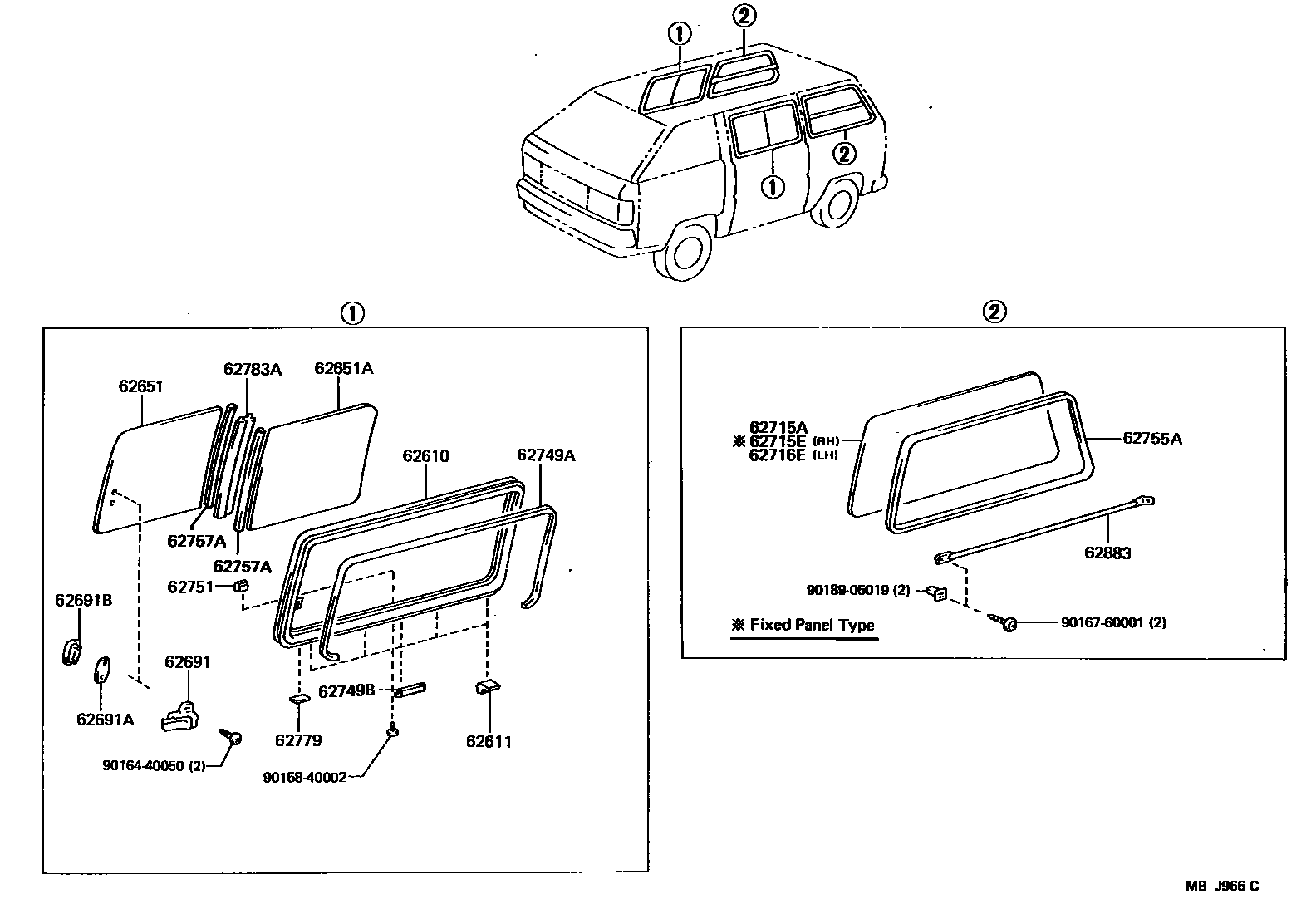

SIDE WINDOW
62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)
*FRG,LH
*FRG,RH
62611SPACER, SIDE WINDOW SUPPORT, NO.1
62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)
*TEM,T=4.0,*FRG,LH,*TEM,T=4.0
*TEM,T=4.0,*FRG,RH,*TEM,T=4.0
62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)
*FRG,LH,*TEM,T=4.0
*TEM,T=4.0,*FRG,LH,*TEM,T=4.0
*FRG,RH,*TEM,T=4.0
*TEM,T=4.0,*FRG,RH,*TEM,T=4.0
62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)
62691APACKING, SIDE WINDOW LOCK, NO.1
62691BRETAINER, SIDE WINDOW LOCK, NO.1
62715AGLASS, SIDE WINDOW, NO.2(FOR FIXED TYPE)
62715EPANEL, SIDE REAR WINDOW, RH
62716EPANEL, SIDE REAR WINDOW, LH
62749ASEAL, SIDE WINDOW, UPPER
LH
62749BSEAL, SIDE WINDOW FRAME
62751STOP, SIDE WINDOW FIX GLASS
62755AWEATHERSTRIP, SIDE WINDOW, NO.2(FOR FIXED TYPE)
FIXED PANEL TYPE
62757APROTECTOR, SIDE WINDOW GLASS, NO.1
*FRG
62779PACKING, SIDE WINDOW GLASS, NO.1
62783ASASH, SIDE WINDOW, CENTER
62883GUARD ASSY, SIDE WINDOW
RH
LH
9015840002
main90158-40002
9016440050
main90164-40050
9016760001
main90167-60001
9018905019
main90189-05019
22 parts on this diagram · 2 diagrams in section
