FLOOR INSULATOR

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-95702iCM35198510-198808

main58321-95707iKM36..RHD198510-198808

main58321-95708iKM3#..LHD198510-198808

58322BINSULATOR, REAR FLOOR HEAT, NO.2

main58322-95702iKM36..5F198608-198808

SWITZERLAND SPEC

58346DBRACKET, REAR FLOOR HEAT INSULATOR, NO.2

main58346-95701iKM36..5F198608-198808

SWITZERLAND,RR

main58346-95702iKM36..5F198608-198808

SWITZERLAND,FR

58376INSULATOR, REAR FLOOR HEAT, NO.2

main58322-95701iKM3#198510-198808

9165640818

main91656-40818

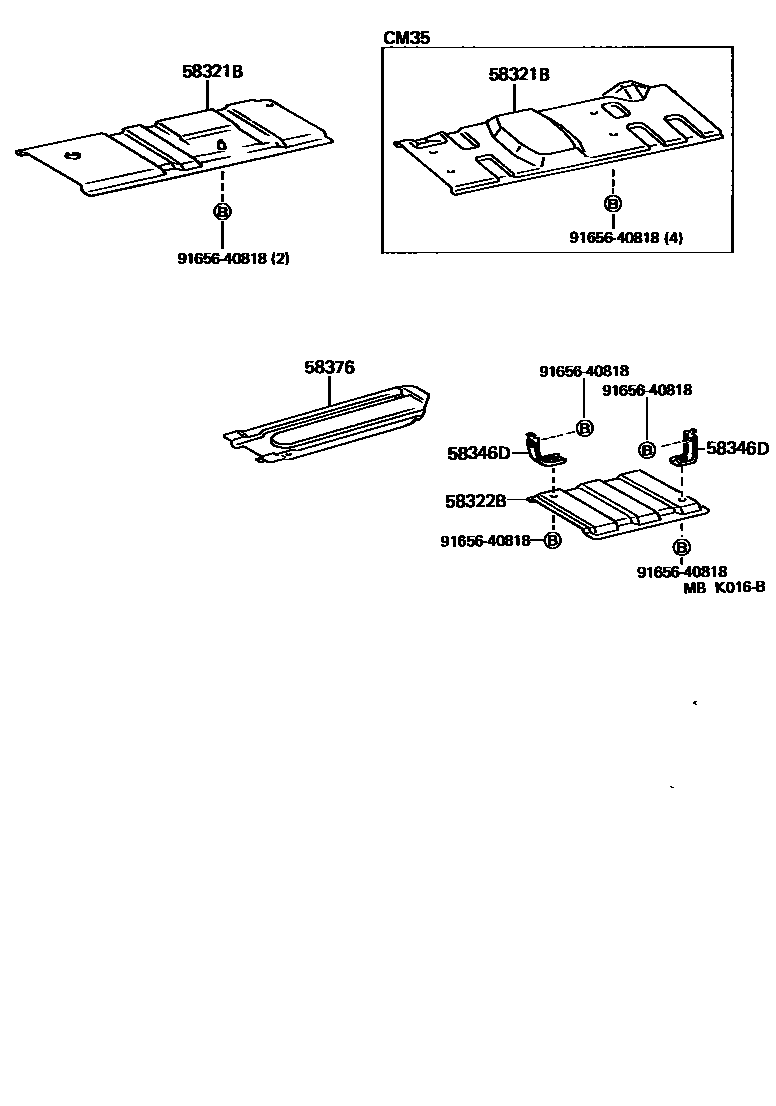

5 parts on this diagram · 1 diagram in section
