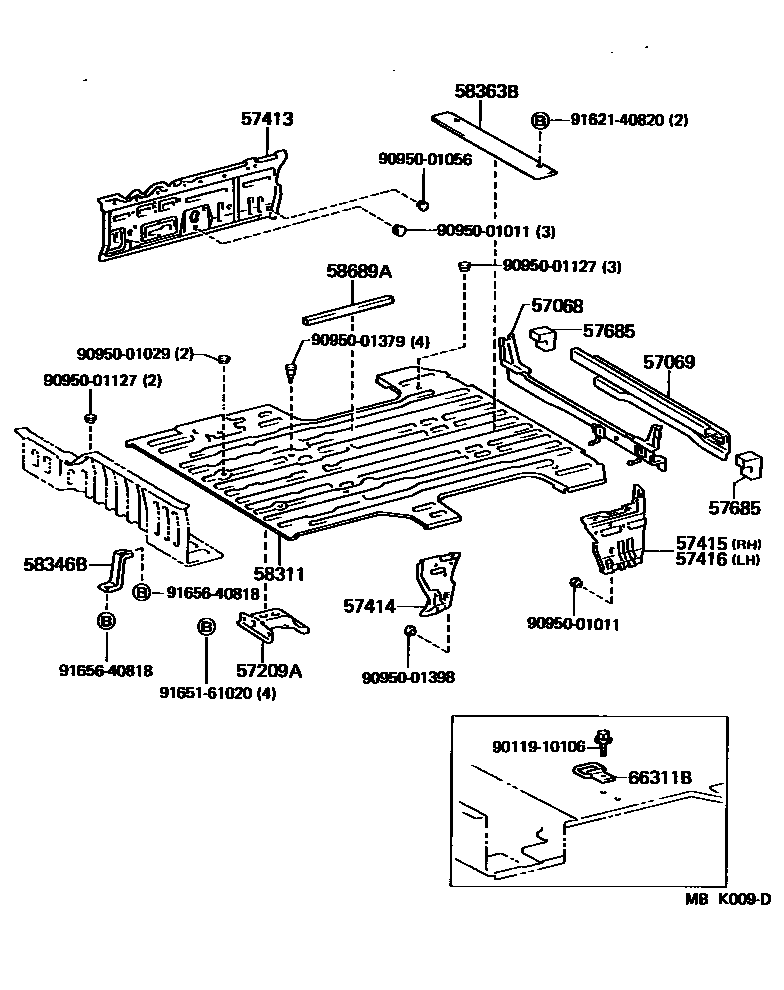

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-95700iCM35,KM3#198510-198808

main57068-95703iKM36..LHD..MRF..02S198510-198808

*FRG

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-95700iKM30198510-198808

main57069-95701iCM35,KM31,36198510-198603

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-95705iCM35198510-198708

main57209-95708iKM3#..LHD198510-198708

main57209-95710iKM3#..LHD198708-198808

main57209-95713iCM35198708-198808

57413RAIL, FLOOR SIDE, CENTER RH

main57405-95719iKM30198510-198808

main57405-95730iCM35,KM36..RHD198510-198808

main57413-95735iCM35,KM31,36..LHD198510-198808

W/O RR SEAT

main57413-95735iCM35,KM31,36..LHD198510-198808

W/FOLDING SEAT

57414RAIL, FLOOR SIDE, CENTER LH

main57406-95711iCM35,KM31,36..LHD..MRF198510-198808

W/O RR SEAT

main57406-95712iCM35,KM3#..STD..(05S,08S)198510-198808

W/*REH

main57406-95713iCM35,KM3#..STD..(05S,08S)198510-198808

main57406-95715iKM30..DLX198510-198808

main57414-95718iKM36..SRF;CM35,KM36..RHD198510-198808

57415RAIL, FLOOR SIDE, REAR RH

main57047-95704iKM30..STD198510-198808

main57047-95705iCM35,KM31,36198510-198808

main57047-95707iKM30..DLX198510-198808

57416RAIL, FLOOR SIDE, REAR LH

main57048-95704iKM30..STD198510-198808

main57048-95705iCM35,KM31,36198510-198808

main57048-95707iKM30..DLX198510-198808

57685DUST PROOF, REAR FLOOR CROSSMEMBER

main57685-95700iCM35,KM3#198510-198708

58311PAN, REAR FLOOR

main58311-95788iKM30..DLX198510-198808

W/*REH

main58311-95789iKM30..STD198510-198808

main58311-95G04iCM35,KM31,36..05S198510-198808

W/*REH

main58311-95G05iCM35,KM31,36..05S198510-198808

main58311-95G07iKM30198510-198808

W/FOLDING SEAT,W/*REH

main58311-95G08iKM30..STD198510-198808

W/FOLDING SEAT

main58311-95G16iCM35,KM36..RHD198608-198808

W/ROPE HOOK

main58311-95G20iCM35,KM31,36..LHD..MRF198510-198808

W/O RR SEAT

main58311-95G21iCM35,KM36..RHD198510-198808

main58311-95G22iKM36..SRF198510-198808

main58311-95G40iCM35,KM36..05S198608-198808

W/ROPE HOOK

main58311-95G41iCM35,KM36..05S198608-198808

W/ROPE HOOK,FOLDING SEAT

main58311-95G41iKM36..LHD..MRF..02S198608-198808

W/ROPE HOOK

main58311-95G42iCM35,KM36..05S198608-198808

W/ROPE HOOK,RR HEATER

main58311-95G43iKM36..SRF198608-198808

W/ROPE HOOK

58346BBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-95700iKM36..RHD198510-198808

58363BBALANCER, REAR FLOOR, NO.1

main58363-95700iCM35,KM31,36198510-198808

RR

main58363-95701iCM35,KM31,36198510-198808

FR

58689AWEIGHT, REAR FLOOR

main58688-95700iCM35,KM31198510-198808

L=460

main58688-95701iKM36..02S198510-198808

L=300

66311BHOOK, ROPE

main66311-95J00iCM35,KM36198608-198808

9011910106

main90119-10106

9095001011

main90950-01011

9095001029

main90950-01029

9095001056

main90950-01056

9095001127

main90950-01127

9095001379

main90950-01379

9095001398

main90950-01398

9162140820

main91621-40820

9165161020

main91651-61020

9165640818

main91656-40818

23 parts on this diagram · 5 diagrams in section
