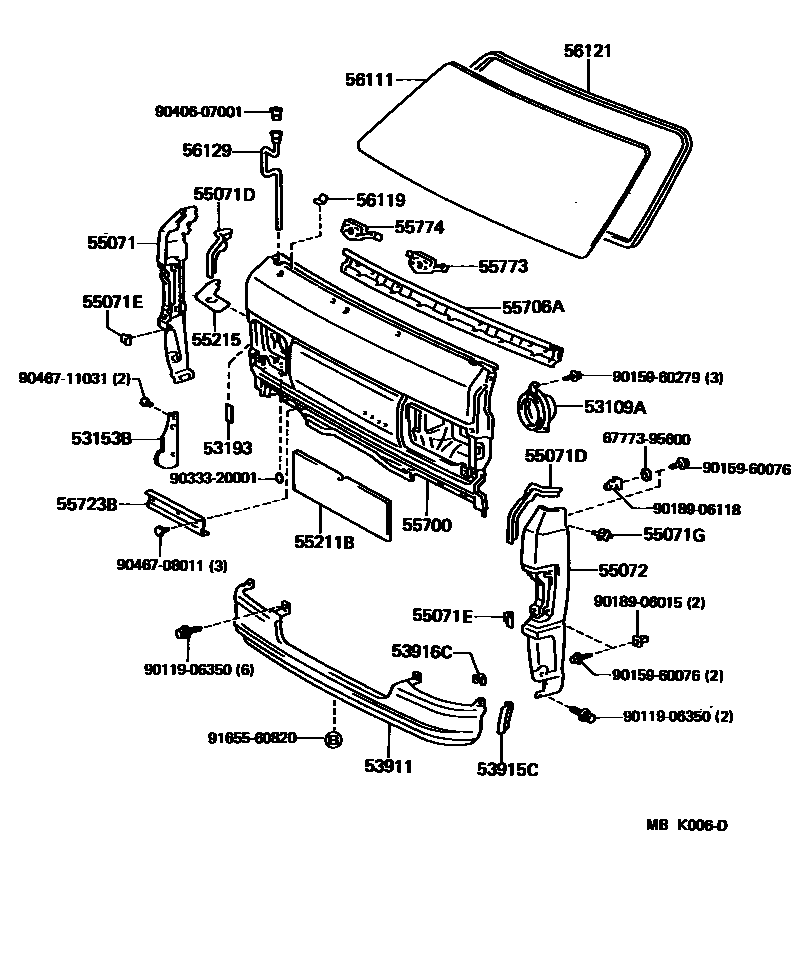

FRONT PANEL & WINDSHIELD GLASS

53109ACOVER SUB-ASSY, HEADLAMP SERVICE HOLE

main53109-95700iCM35,KM31,36..LHD198510-198808

53153BGUIDE, FRONT SIDE AIR

main53153-95701iCM35,KM3#198510-198808

53193SEAL, HEADLAMP COVER

main53196-95700iCM35,KM36..RHD198510-198808

53911PANEL, FRONT VALANCE

main53901-95702iCM35,KM3#198510-198808

53915CPROTECTOR, LOWER SHROUD

main53915-95704iCM35,KM3#198510-198808

53916CPROTECTOR, LOWER SHROUD, NO.2

main53916-95702iCM35,KM3#198510-198808

55071PANEL SUB-ASSY, FRONT SIDE, RH

main53801-95706iCM35,KM3#198510-198808

55071DPROTECTOR, FRONT SIDE PANEL, NO.2

main53823-95702iCM35,KM3#198510-198701

RH

main53823-95703iCM35,KM3#198701-198808

RH

main53824-95702iCM35,KM3#198510-198701

LH

main53824-95703iCM35,KM3#198701-198808

LH

55071EPROTECTOR, FRONT SIDE PANEL, NO.3

main53828-95702iCM35,KM3#198510-198808

55071GRETAINER, FRONT SIDE PANEL SET

main53867-95700iCM35,KM3#198510-198808

55072PANEL SUB-ASSY, FRONT SIDE, LH

main53802-95709iCM35,KM3#198510-198808

55211BSILENCER, FRONT PANEL

main55211-95701iCM35,KM3#198510-198808

55215PAD, HEADLAMP COVER SILENCER, RH

main55215-95700iCM35..RHD198510-198808

55700PANEL ASSY, FRONT

main55701-95729iCM35,KM36..RHD198510-198807

sub55701-95745

sub55701-95748

main55701-95733iCM35,KM31,36..LHD198510-198807

sub55701-95747

main55701-95736iKM30198510-198807

sub55701-95746

main55701-95746iKM30198807-198808

main55701-95747iCM35,KM36..LHD198807-198808

sub55701-95757

main55701-95748iCM35,KM36..RHD198807-198808

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95706iCM35,KM36..RHD198510-198808

main55706-95707iCM35,KM3#..LHD198510-198808

55723BSHUTTER, FRONT AIR SIDE

main55723-95701iCM35,KM3#..LHD198510-198808

RH

main55724-95700iCM35,KM36..RHD198510-198808

LH

55773RETAINER, WIPER SHAFT, CENTER

main55773-95704iCM35,KM3#198510-198808

sub55773-95705

55774RETAINER, WIPER SHAFT SIDE

main55774-95704iCM35,KM36..RHD198510-198808

sub55774-95706

main55774-95705iCM35,KM3#..LHD198510-198808

56111GLASS, WINDSHIELD

main56111-95711iCM35,KM3#198510-198808

*ZT,T=5.0,*ZT,T=5.0

sub56111-95714

main56111-95714iCM35,KM3#198510-198808

*LAM,T=5.3,*LAM,T=5.3

sub56111-95716

56119SEAL, WINDSHIELD GLASS

main56119-95700iCM35,KM3#198510-198808

56121WEATHERSTRIP, WINDSHIELD

main56121-95708iCM35,KM3#..STD198510-198808

sub56121-27010

main56121-95709iKM30..DLX198510-198808

sub56121-27020

56129HOSE, WINDSHIELD DRAIN

main56129-95700iCM35,KM3#198510-198808

6777395600

main67773-95600

9011906350

main90119-06350

9015960076

main90159-60076

9015960279

main90159-60279

9018906015

main90189-06015

9018906118

main90189-06118

9033320001

main90333-20001

9040607001

main90406-07001

9046708011

main90467-08011

9046711031

main90467-11031

9165560820

main91655-60820

33 parts on this diagram · 1 diagram in section
