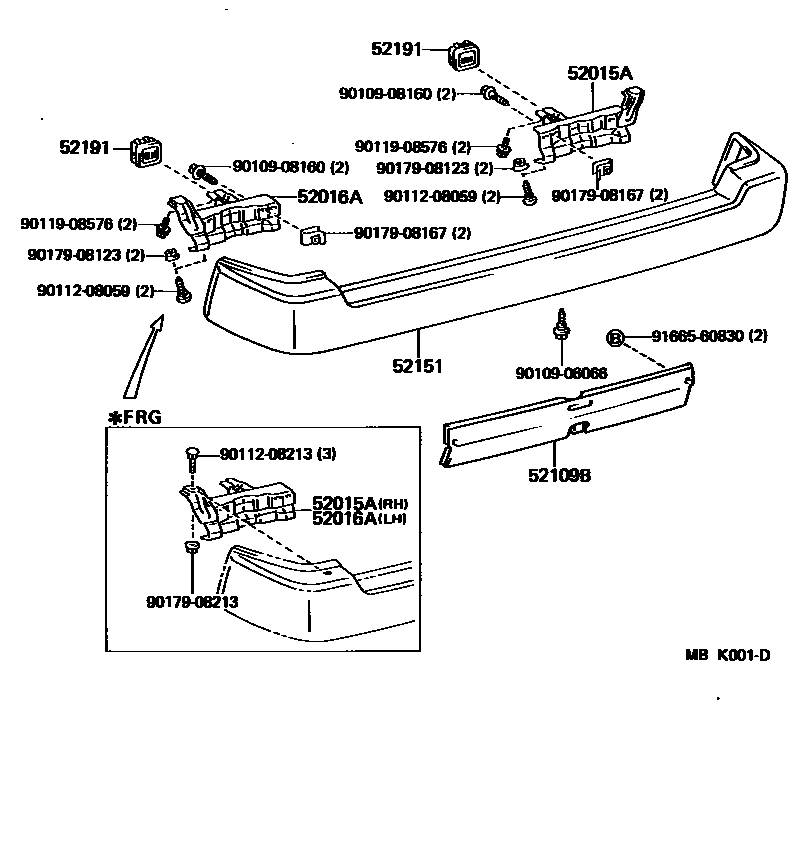

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-95700iKM30198510-198808

main52015-95702iKM31198510-198808

*FRG

main52015-95703iCM35,KM31,36198510-198603

main52015-95704iKM36..LHD..MRF..02S198510-198603

*FRG

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-95700iCM35,KM31,36198510-198808

main52016-95702iKM31198510-198808

*FRG

main52016-95703iCM35,KM31,36198510-198603

main52016-95704iKM36..LHD..MRF..02S198510-198603

*FRG

52109BWEIGHT SUB-ASSY, REAR BUMPER

main52109-95700iKM36..LHD..MRF..02S198511-198603

*FRG

main52109-95700iCM35,KM31,36198510-198511

52151BUMPER ASSY, REAR

main52151-95708iCM35,KM3#198510-198808

main52151-95709-14iKM30..STD198805-198806

BLUE-M,FB,BLUE,BLUE M

sub52151-95708

sub52151-95709

main52151-95710iKM36..LHD..MRF..02S198510-198808

*FRG

52191PACKING, REAR BUMPER STAY

main52191-95701iCM35,KM3#198510-198808

9010906066

main90109-06066

9010908160

main90109-08160

9011208059

main90112-08059

9011208213

main90112-08213

9011908576

main90119-08576

9017908123

main90179-08123

9017908167

main90179-08167

9017908213

main90179-08213

9166560830

main91665-60830

14 parts on this diagram · 1 diagram in section
