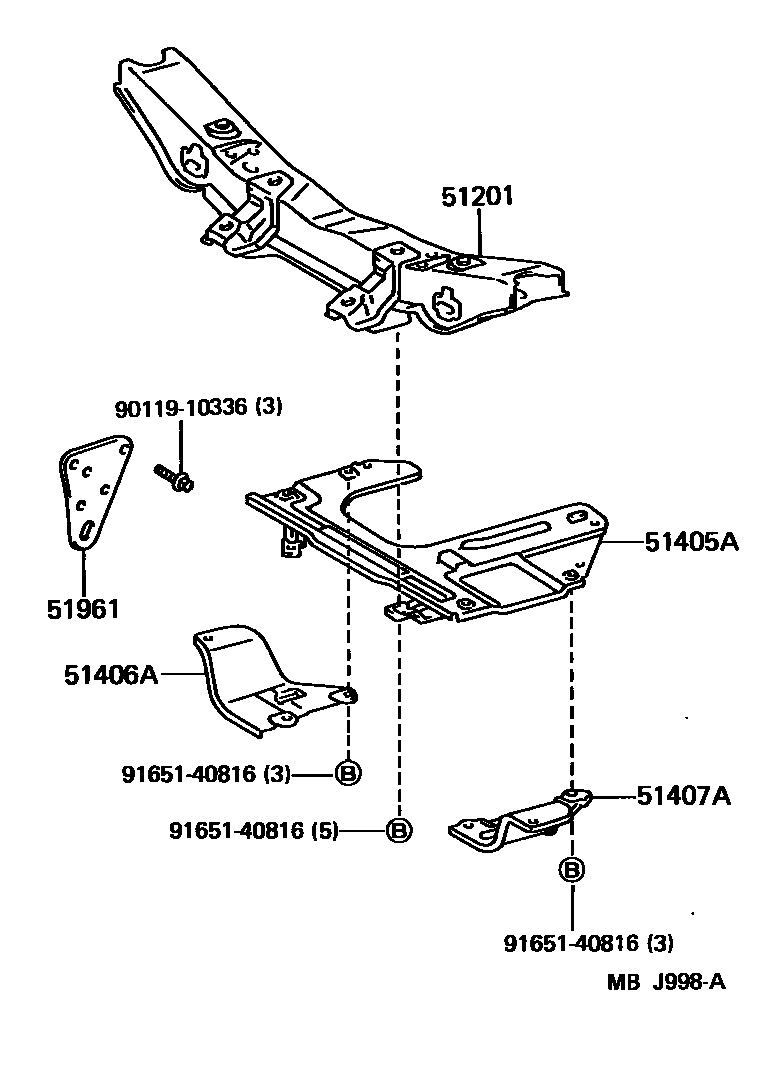

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-95703iCM35,KM36..RHD198510-198808

main51203-95704iCM35,KM3#..LHD198510-198808

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-95700iCM35..LHD198510-198808

sub51405-95708

main51405-95701iCM35..RHD198510-198808

sub51405-95707

main51405-95702iKM36..RHD198510-198808

main51405-95703iKM3#..LHD198510-198808

51406ACOVER SUB-ASSY, ENGINE UNDER, NO.2

main51442-95700iCM35,KM3#198510-198808

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51443-95700iCM35,KM3#198510-198808

51961HOOK, NO.1

main51961-95700iCM35,KM3#..LHD198510-198808

9011910336

main90119-10336

9165140816

main91651-40816

7 parts on this diagram · 1 diagram in section
