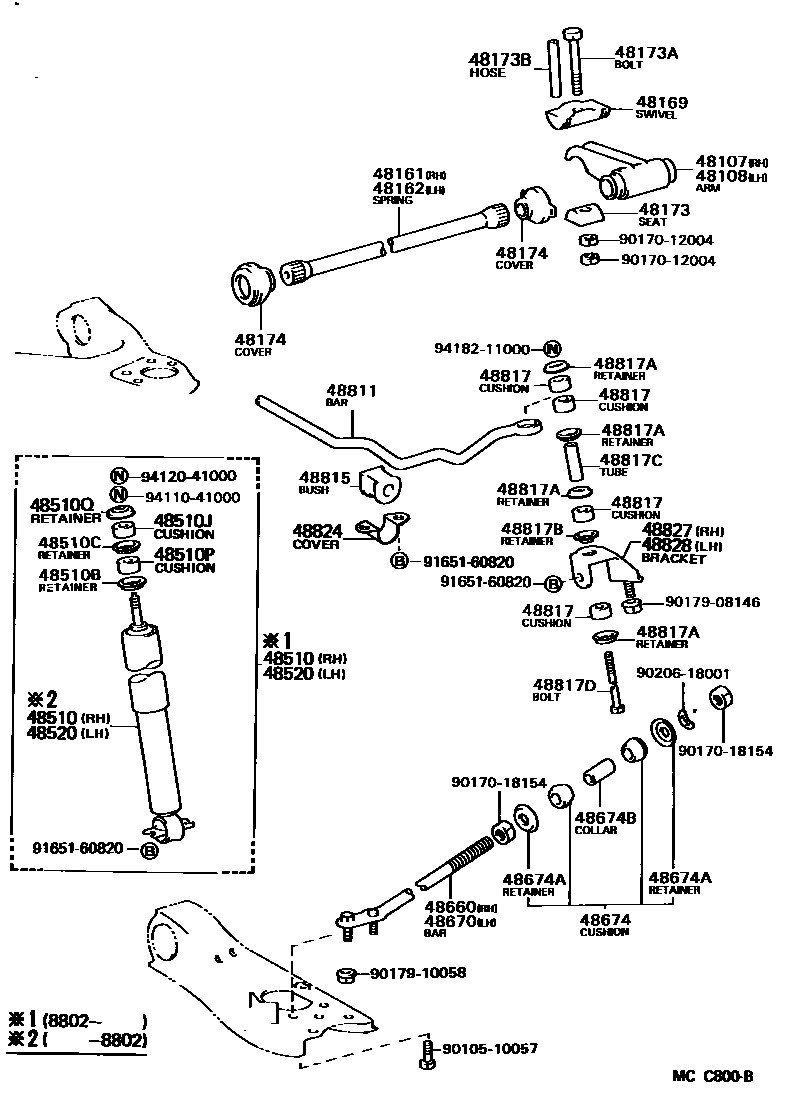

FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
sub48107-27050
48108ARM SUB-ASSY, ANCHOR, LH
sub48108-27050
48169SWIVEL, ANCHOR ARM
48173SEAT, ANCHOR ARM ADJUSTER
LH
48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
48173BHOSE(FOR ANCHOR ARM ADJUSTING BOLT)
48174COVER, TORSION BAR DUST
FR
RR
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48500-29346
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
48510PCUSHION, FRONT SHOCK ABSORBER, NO.2
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48500-29346
48660BAR ASSY, STRUT, RH
48670BAR ASSY, STRUT, LH
48674CUSHION, STRUT BAR
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
48674BCOLLAR(FOR STRUT BAR CUSHION)
48811BAR, STABILIZER, FRONT
SINGLE BOOSTER
TANDEM BOOSTER
48815BUSH, FRONT STABILIZER BAR, NO.1
sub48815-38010
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817CCOLLAR(FOR STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48824BRACKET, STABILIZER, FRONT
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
9010510057
main90105-10057
9017012004
main90170-12004
9017018154
main90170-18154
9017908146
main90179-08146
9017910058
main90179-10058
9020618001
main90206-18001
9165160820
main91651-60820
9411041000
main94110-41000
9412041000
main94120-41000
9418211000
main94182-11000
41 parts on this diagram · 1 diagram in section
