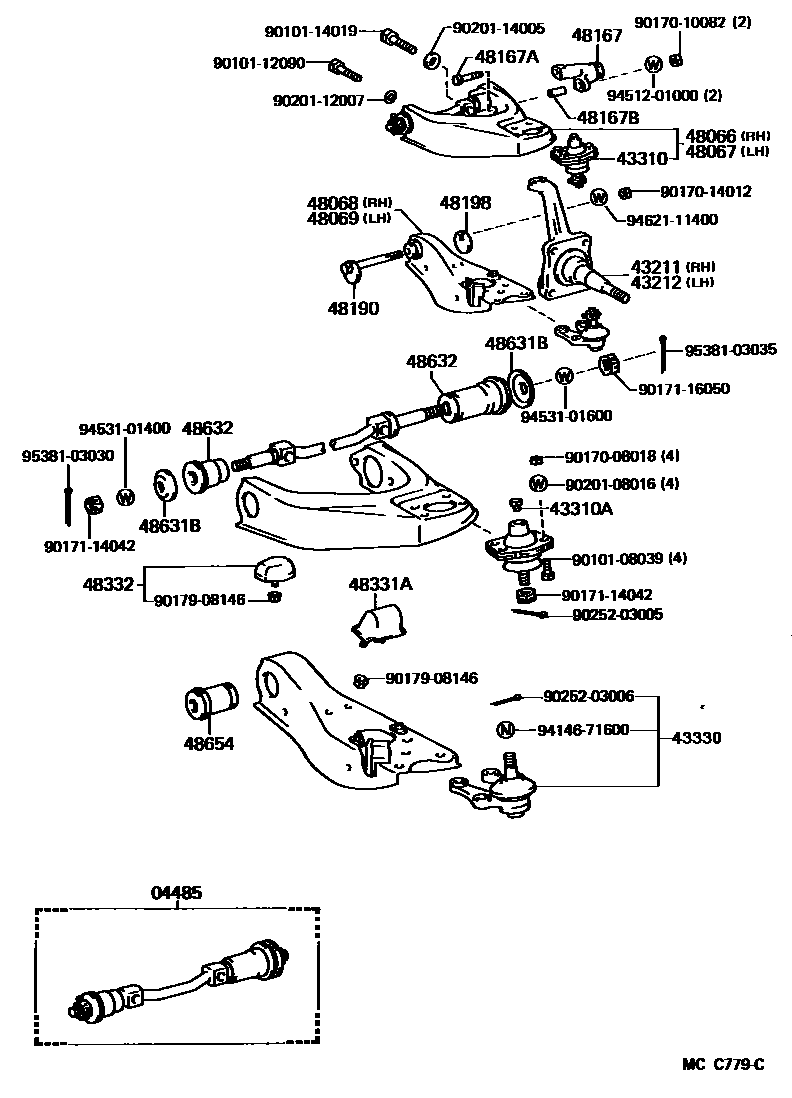

FRONT AXLE ARM & STEERING KNUCKLE

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-28020iCM35,KM3#198510-198808

43211KNUCKLE, STEERING, RH

main43211-28021iCM35,KM3#198510-198808

43212KNUCKLE, STEERING, LH

main43211-28021iCM35,KM3#198510-198808

43310JOINT ASSY, UPPER BALL

main43350-29036iCM35,KM3#198510-198808

RH

sub43350-29076

main43360-29056iCM35,KM3#198510-198808

LH

sub43350-29076

43310APLUG (FOR BALL JOINT)

main90345-06014iCM35,KM3#198510-198808

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29175iCM35,KM3#198510-198808

sub43330-29545

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48610-28011iCM35,KM3#198510-198610

sub48610-28012

main48610-28012iCM35,KM3#198610-198808

sub48610-28013

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48630-28011iCM35,KM3#198510-198610

sub48630-28012

main48630-28012iCM35,KM3#198610-198808

sub48630-28013

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-27050iCM35,KM3#198510-198808

sub48068-28040

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-27050iCM35,KM3#198510-198808

sub48069-28040

48167ARM, TORQUE

main48106-28010iCM35,KM3#198510-198808

48167ABOLT(FOR TORQUE ARM SETTING)

main91121-71085iCM35,KM3#198510-198808

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-17029iCM35,KM3#198510-198808

48190CAM ASSY, CAMBER ADJUST

main48190-27010iCM35,KM3#198510-198808

sub48190-27020

sub90179-14046

48198CAM, CAMBER ADJUST, NO.2

main48198-27010iCM35,KM3#198510-198808

48331ABUMPER, FRONT SPRING, NO.1

main48331-27060iCM35,KM3#198510-198808

sub48331-29055

48332BUMPER, FRONT SPRING, NO.2

main48305-30030iCM35,KM3#198608-198808

main48305-39015iCM35,KM3#198510-198608

sub48305-30030

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02048iCM35,KM3#198510-198808

RR SIDE

main90948-02049iCM35,KM3#198510-198808

FR SIDE

48632BUSH, UPPER ARM

main48632-27010iCM35,KM3#198510-198808

FR SIDE

main48635-28010iCM35,KM3#198510-198808

RR SIDE

48654BUSH, LOWER ARM

main48061-27010iCM35,KM3#198510-198611

sub48061-27011

main48061-27011iCM35,KM3#198611-198808

9010108039

main90101-08039

9010112090

main90101-12090

9010114019

main90101-14019

9017008018

main90170-08018

9017010082

main90170-10082

9017014012

main90170-14012

9017114042

main90171-14042

9017116050

main90171-16050

9017908146

main90179-08146

9020108016

main90201-08016

9020112007

main90201-12007

9020114005

main90201-14005

9025203005

main90252-03005

9025203006

main90252-03006

9414671600

main94146-71600

9451201000

main94512-01000

9453101400

main94531-01400

9453101600

main94531-01600

9462111400

main94621-11400

9538103030

main95381-03030

9538103035

main95381-03035

41 parts on this diagram · 1 diagram in section
