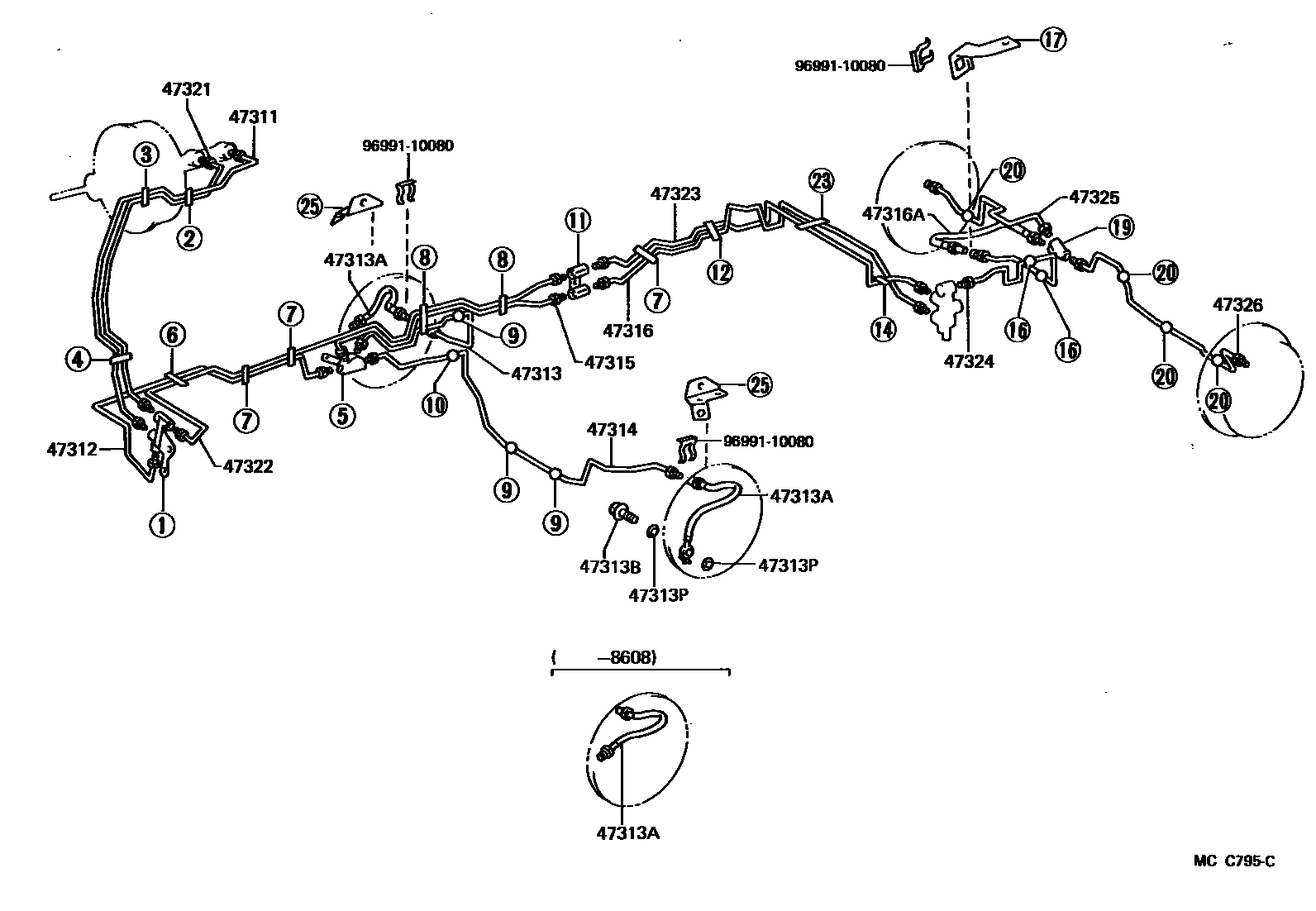

BRAKE TUBE & CLAMP

0001 1 0002 1SINGLE BOOSTER 0003 1TANDEM BOOSTER 0004 1 0005 1

47311TUBE, FRONT BRAKE, NO.1

main47311-27180iCM35,KM36..RHD198510-198808

main47311-27210iCM35..LHD;KM36..4F..05S;KM36..LHD..02S198510-198512

SINGLE BOOSTER

sub47311-27211

main47311-27211iCM35..LHD;KM36..4F..05S;KM36..LHD..02S198512-198808

SINGLE BOOSTER

main47311-27220iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)198510-198512

TANDEM BOOSTER

sub47311-27221

main47311-27221iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)198512-198808

TANDEM BOOSTER

47312TUBE, FRONT BRAKE, NO.2

main47312-27100iCM35;KM36..02S;KM36..4F..05S198510-198808

SINGLE BOOSTER

sub47312-27180

main47312-27130iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)198510-198808

TANDEM BOOSTER

sub47312-27170

47313TUBE, FRONT BRAKE, NO.3

main47313-27060iCM35,KM36..LHD..5F..02S198608-198808

FR DISC BRAKE

main47313-27060iCM35,KM3#198510-198608

main47313-27061iKM36..4F..05S198608-198808

FR DISC BRAKE

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02485iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)198510-198808

RH,TANDEM BOOSTER

main90947-02487iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)198510-198808

LH,TANDEM BOOSTER

main90947-02505iCM35;KM36..02S;KM36..4F..05S198608-198808

SINGLE BOOSTER

main96940-32805iCM35;KM36..02S;KM36..4F..05S198510-198608

SINGLE BOOSTER

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)198510-198808

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)198510-198808

47314TUBE, FRONT BRAKE, NO.4

main47314-27050iCM35;KM36..02S;KM36..4F..05S198510-198608

SINGLE BOOSTER

main47314-27051iCM35;KM36..02S;KM36..4F..05S198608-198808

SINGLE BOOSTER

main47314-27080iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)198510-198808

TANDEM BOOSTER

47315TUBE, FRONT BRAKE, NO.5

main47315-27020iCM35;KM36..02S;KM36..4F..05S198510-198808

47316TUBE, FRONT BRAKE, NO.6

main47316-27060iCM35;KM36..02S;KM36..4F..05S198510-198808

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33555iCM35,KM3#198510-198808

47321TUBE, REAR BRAKE, NO.1

main47321-27130iCM35,KM36..RHD198510-198808

main47321-27140iCM35..LHD;KM36..4F..05S;KM36..LHD..02S198510-198512

SINGLE BOOSTER

sub47321-27141

main47321-27141iCM35..LHD;KM36..4F..05S;KM36..LHD..02S198512-198808

SINGLE BOOSTER

main47321-27150iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)198510-198512

TANDEM BOOSTER

sub47321-27151

main47321-27151iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)198512-198808

TANDEM BOOSTER

47322TUBE, REAR BRAKE, NO.2

main47322-27140iCM35;KM36..02S;KM36..4F..05S198510-198808

SINGLE BOOSTER

sub47322-27230

main47322-27180iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)198510-198808

TANDEM BOOSTER

sub47322-27220

47323TUBE, REAR BRAKE, NO.3

main47323-27210iCM35;KM36..02S;KM36..4F..05S198510-198808

SINGLE BOOSTER

sub47323-27350

main47323-27240iKM36..4F..05S;CM35,KM36..LHD..(4H,5F)198510-198808

TANDEM BOOSTER

main47323-27250iKM30,31198510-198808

sub47323-27380

47324TUBE, REAR BRAKE, NO.4

main47324-27090iCM35,KM3#198510-198808

47325TUBE, REAR BRAKE, NO.5

main47325-27070iCM35,KM36198510-198808

main47325-27080iKM30,31198510-198808

47326TUBE, REAR BRAKE, NO.6

main47326-27060iCM35,KM36198510-198808

main47326-27070iKM30,31198510-198808

9699110080

main96991-10080
