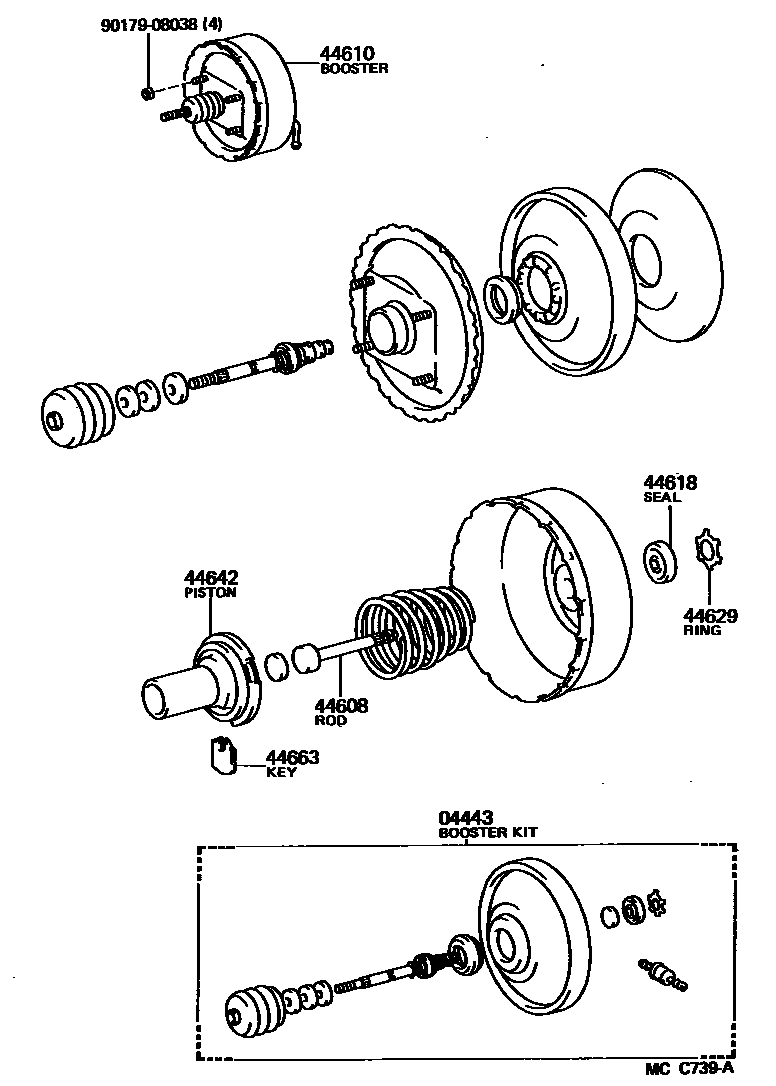

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1SINGLE BOOSTER 0003 1TANDEM BOOSTER 0004 1TANDEM BOOSTER 0005 1 0006 1

04443BOOSTER KIT, BRAKE

main04443-27200iKM36..RHD¥11,800198510-198808

main04443-27210iCM35..RHD¥11,800198510-198808

main04443-27220iKM36..4F..05S;KM3#..LHD..(4H,5F)¥13,900198510-198808

TANDEM BOOSTER,AISIN

main04443-27230iCM35..LHD..5F¥13,900198510-198808

TANDEM BOOSTER,AISIN

main04443-27260iKM36..4F..05S;KM36..LHD..02S¥11,400198510-198808

SINGLE BOOSTER

main04443-27270iCM35..LHD¥11,400198510-198808

SINGLE BOOSTER

main04443-27300iKM36..4F..05S;KM3#..LHD..(4H,5F)¥15,300198510-198808

TANDEM BOOSTER,JKC

main04443-27310iCM35..LHD..5F¥15,300198510-198808

TANDEM BOOSTER,JKC

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iCM35,KM36..RHD¥2,660198510-198808

main44606-20800iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)¥1,260198510-198808

TANDEM BOOSTER,AISIN

main44608-17090iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)¥2,010198709-198808

TANDEM BOOSTER,JKC

main44608-20810iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)¥2,010198510-198709

TANDEM BOOSTER,JKC

main44608-32020iCM35..LHD;KM36..4F..05S;KM36..LHD..02S¥2,670198510-198808

SINGLE BOOSTER

44610BOOSTER ASSY, BRAKE

main44610-27240iCM35,KM36..RHD¥46,200198510-198808

main44610-27250iCM35..LHD;KM36..4F..05S;KM36..LHD..02S¥46,200198510-198808

SINGLE BOOSTER

main44610-27260iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)¥63,200198510-198808

TANDEM BOOSTER

sub44610-27290¥62,500

44618SEAL, BOOSTER BODY

main44621-14030iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)¥400198510-198808

TANDEM BOOSTER

main44621-28120iCM35,KM36..RHD¥590198510-198808

44629RING, CIRCULAR INTERNAL

main44628-28120iCM35,KM36..RHD¥390198510-198808

main44628-60010iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)¥440198510-198808

TANDEM BOOSTER

44642PISTON, BRAKE BOOSTER

main44642-12520iCM35,KM36..RHD¥5,500198510-198808

main44642-20800iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)¥2,740198510-198808

TANDEM BOOSTER

44663KEY, VALVE STOPPER

main44635-20800iKM36..4F..05S;CM35,KM3#..LHD..(4H,5F)¥230198510-198808

TANDEM BOOSTER

main44635-28120iCM35,KM36..RHD¥370198510-198808

9017908038

main90179-08038¥130

8 parts on this diagram · 6 diagrams in section
