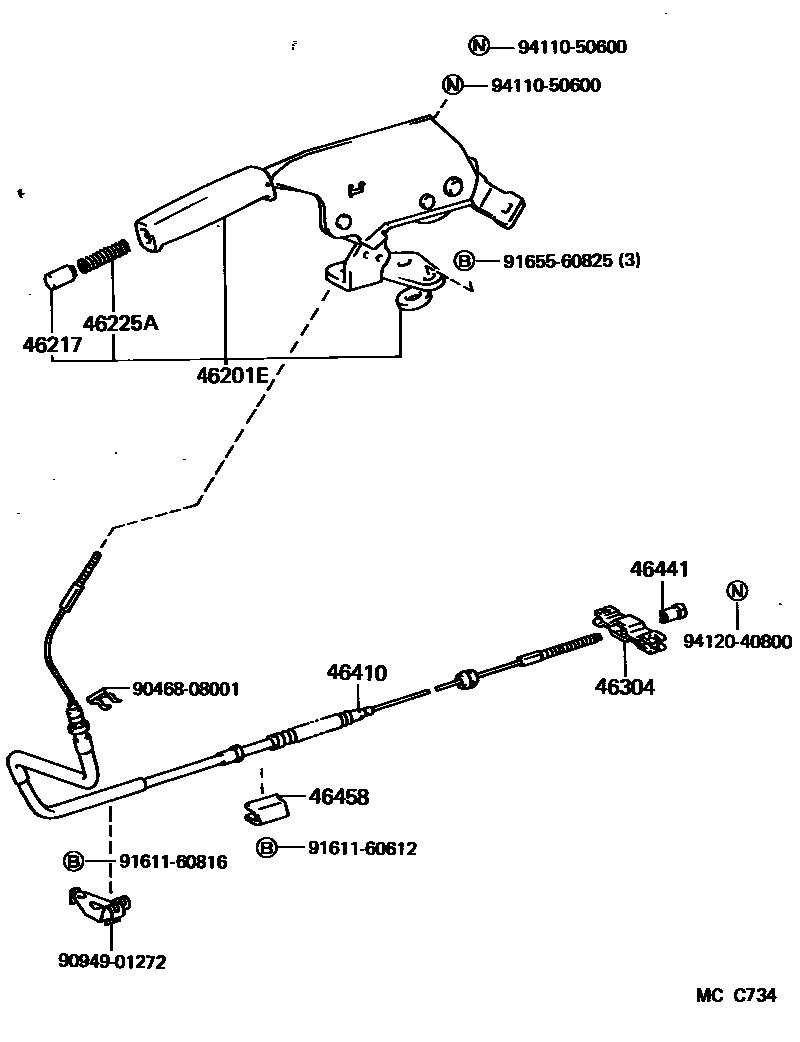

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-27020-06iCM35,KM36..RHD198510-198803

BROWN,BROWN,TRIM4#

sub46201-27021

main46201-27021-06iCM35,KM36..RHD198803-198808

BROWN,BROWN,TRIM4#

sub46201-27021

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-16iCM35,KM36..RHD198803-198808

BROWN,BROWN,TRIM4#

sub46217-12020

sub46217-16030

main46217-20020-16iCM35,KM36..RHD198510-198803

BROWN,DARK BROWN,TRIM4#

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iCM35,KM36..RHD198510-198808

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iCM35,KM3#198510-198808

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-27120iKM36..RHD198510-198808

main46410-27140iCM35..RHD198510-198808

main46410-27150iCM35,KM3#..LHD198510-198808

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iCM35,KM3#198510-198808

46458RETAINER, CABLE

main46458-28010iCM35,KM3#198510-198808

9046808001

main90468-08001

9094901272

main90949-01272

9161160612

main91611-60612

9161160816

main91611-60816

9165560825

main91655-60825

9411050600

main94110-50600

9412040800

main94120-40800

14 parts on this diagram · 3 diagrams in section
