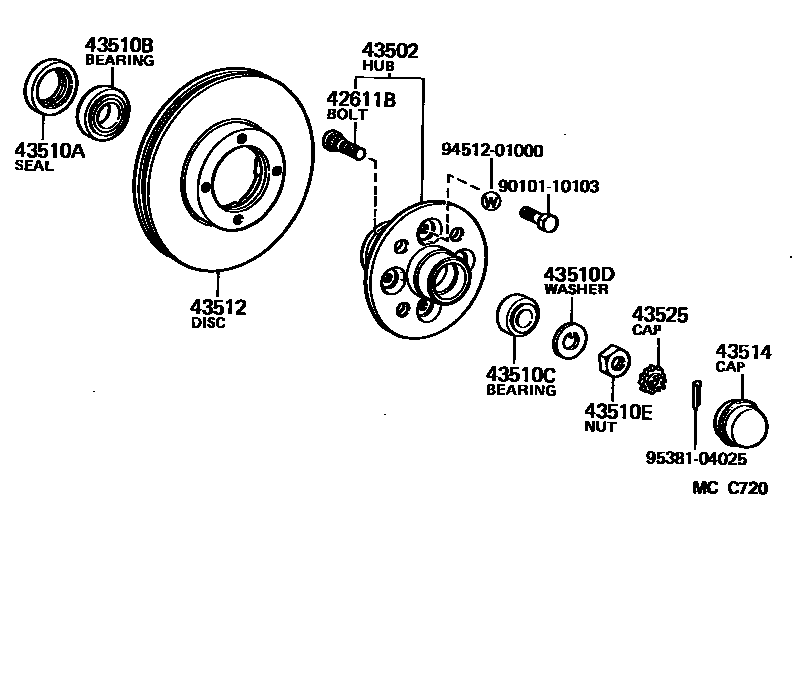

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02048iCM35,KM3#198510-198808

43502HUB SUB-ASSY, FRONT AXLE

main43502-28030iCM35,KM3#198510-198808

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001iCM35,KM3#198510-198808

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31067iCM35,KM3#198510-198808

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037iCM35,KM3#198510-198808

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005iCM35,KM3#198510-198808

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iCM35,KM3#198510-198808

43512DISC, FRONT

main43512-28050iCM35,KM3#198510-198808

sub43512-28051

43514CAP, FRONT HUB GREASE

main43514-27010iCM35,KM3#198510-198808

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iCM35,KM3#198510-198808

9010110103

main90101-10103

9451201000

main94512-01000

9538104025

main95381-04025

13 parts on this diagram · 1 diagram in section
