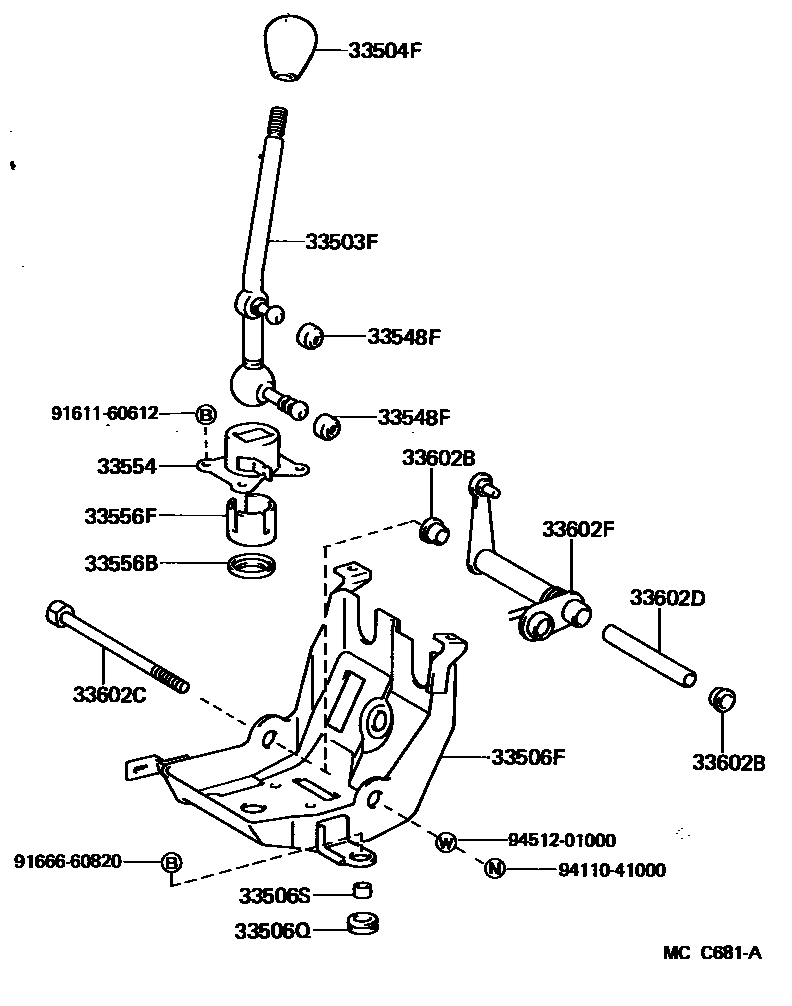

SHIFT LEVER & RETAINER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
URETHANE,BROWN,BROWN,TRIM4#
BROWN,BROWN,TRIM4#
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33554CAP, SHIFT LEVER
33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
33602BBUSHING (FOR SELECT LEVER)
33602CBOLT (FOR SELECT LEVER)
33602DCOLLAR (FOR SELECT LEVER)
33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
9161160612
9166660820
9411041000
9451201000
17 parts on this diagram · 4 diagrams in section
