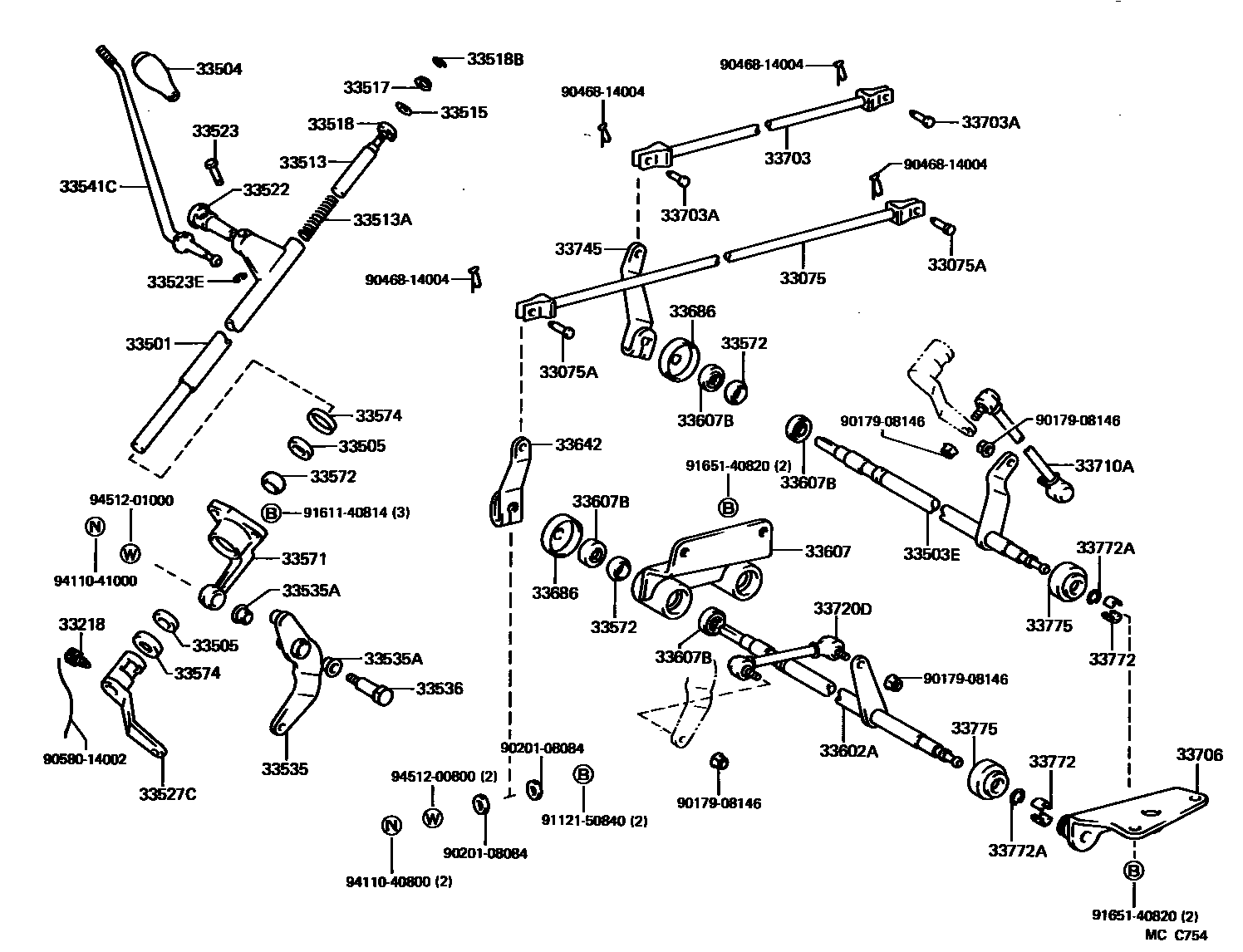

CONTROL SHAFT & CROSSSHAFT
33075ROD SUB-ASSY, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)
33075APIN, W/HOLE(FOR GEAR SELECTING ROD NO.2)
33218BOLT, SHIFT LEVER LOCK
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33503ELEVER SUB-ASSY, GEAR SHIFTING, NO.1(FOR COLUMN SHIFT)
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33515SEAT, CONTROL SHAFT UPPER
33517RETAINER, CONTROL SHAFT UPPER SPRING
33518BUSH, UPPER CONTROL SHAFT PIECE
sub33518-35010
33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523ERING, E (FOR SHIFT LEVER PIN)
33527CLEVER, CONTROL SHIFT (FOR COLUMN SHIFT)
33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535ABUSH (FOR CONTROL SELECT LEVER)
33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33541CLEVER, SHIFT (FOR COLUMN SHIFT)
33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33602ALEVER SUB-ASSY, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)
33607SUPPORT SUB-ASSY, CONTROL ROD (FOR COLUMN SHIFT)
33607BSEAL, OIL (FOR CONTROL ROD SUPPORT)
33642LEVER, GEAR SELECTING, NO.2
33686COVER, CONTROL LEVER DUST (FOR COLUMN SHIFT)
33703ROD SUB-ASSY, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT)
33703APIN, W/HOLE (FOR GEAR SHIFTING ROD NO.2)
33706SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR COLUMN SHIFT)
33710AROD ASSY, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)
33720DROD ASSY, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)
33745LEVER, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT)
33772BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772ARING, SNAP (FOR CROSS SHAFT SUPPORT BUSH)
33775COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)
9017908146
main90179-08146
9020108084
main90201-08084
9046814004
main90468-14004
9058014002
main90580-14002
9112150840
main91121-50840
9161140814
main91611-40814
9165140820
main91651-40820
9411040800
main94110-40800
9411041000
main94110-41000
9451200800
main94512-00800
9451201000
main94512-01000
49 parts on this diagram · 4 diagrams in section
