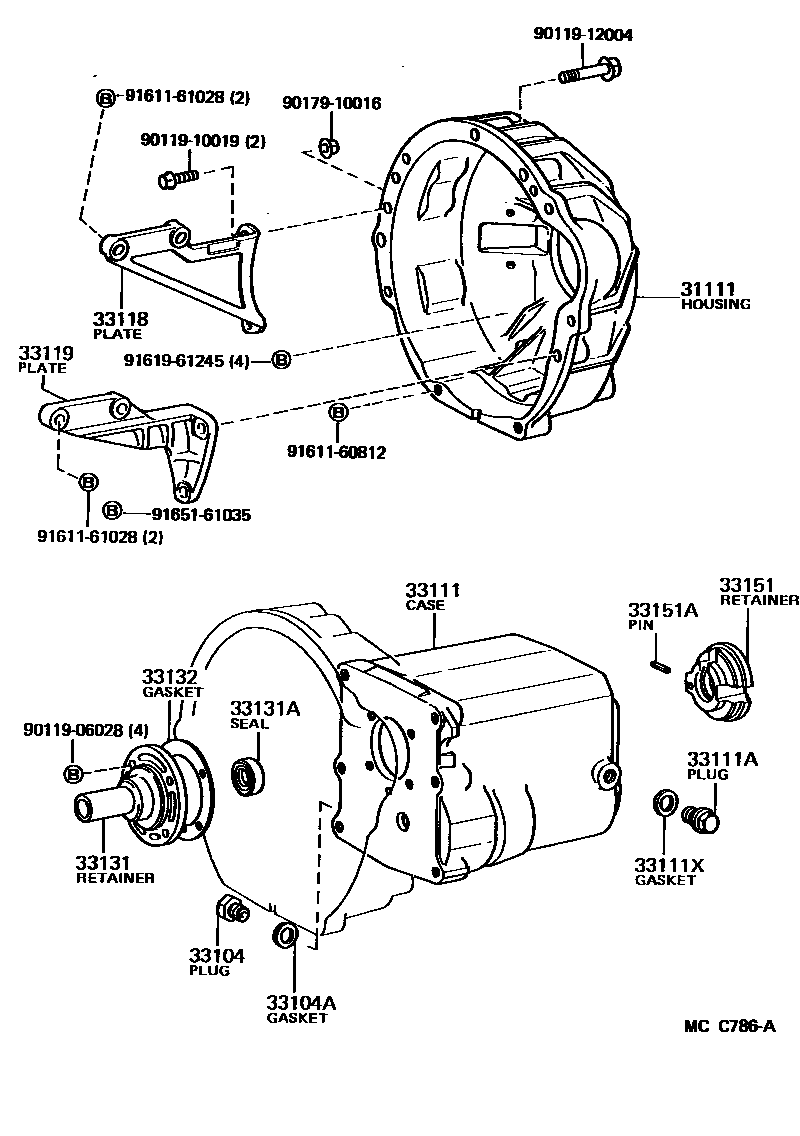

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1

31111HOUSING, CLUTCH

main31111-27020iKM36..4F,4H198510-198808

main31111-27030iKM3#..5F198510-198808

main31111-28030iCM35198510-198808

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18021iCM35198510-198808

main90341-18057iKM3#198510-198808

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCM35,KM3#198510-198808

33111CASE, MANUAL TRANSMISSION

main33101-26010iKM3#..5F198510-198602

sub33101-26900

main33101-26900iKM3#..5F198602-198808

sub33101-28020

main33101-28010iCM35198510-198808

sub33101-35060

main33111-35031iKM36..4F,4H198510-198808

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iCM35,KM3#198510-198808

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iCM35,KM3#198510-198808

33118PLATE, STIFFENER, RH(MTM)

main33118-12080iKM3#198510-198808

main33118-14032iCM35198510-198607

sub33118-14033

main33118-14033iCM35198607-198808

33119PLATE, STIFFENER, LH(MTM)

main33119-12050iKM3#198510-198808

main33119-14050iCM35198510-198808

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iKM36..4F,4H198510-198808

main33131-26020iCM35,KM3#..5F,5H198510-198808

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iCM35,KM3#..5F,5H198510-198808

main90311-32106iKM36..4F,4H198510-198808

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iCM35,KM3#..5F,5H198510-198808

main33132-30030iKM36..4F,4H198510-198808

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-26010iKM36..4F,4H198510-198808

main33151-28010iCM35,KM3#..5F,5H198510-198808

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iKM36..4F,4H198510-198808

9011906028

main90119-06028

9011910019

main90119-10019

9011912004

main90119-12004

9017910016

main90179-10016

9161160812

main91611-60812

9161161028

main91611-61028

9161961245

main91619-61245

9165161035

main91651-61035

21 parts on this diagram · 3 diagrams in section
