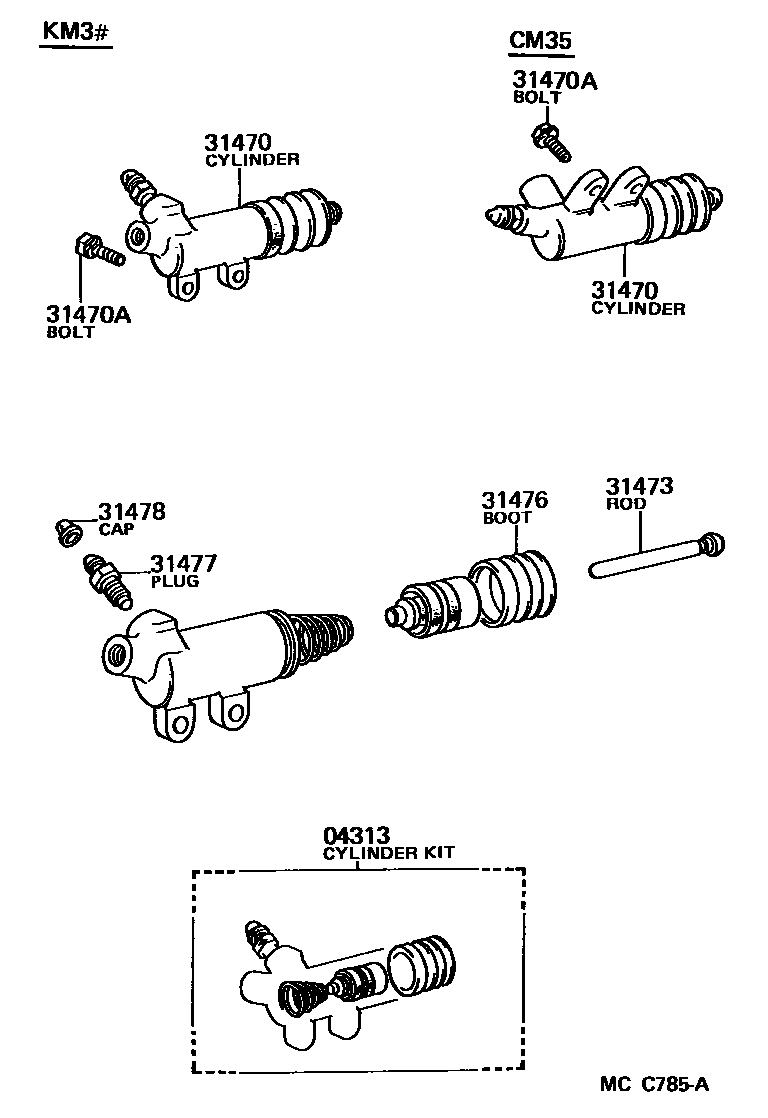

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iCM35,KM3#..5F,5H198510-198808

sub04313-12030

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-28040iCM35198510-198808

main31470-35070iKM3#..5F198510-198808

sub31470-35071

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iCM35,KM3#..5F,5H198510-198808

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCM35,KM3#..5F,5H198510-198808

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCM35,KM3#..5F,5H198510-198808

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCM35,KM3#..5F,5H198510-198808

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCM35,KM3#..5F,5H198510-198808

7 parts on this diagram · 1 diagram in section
