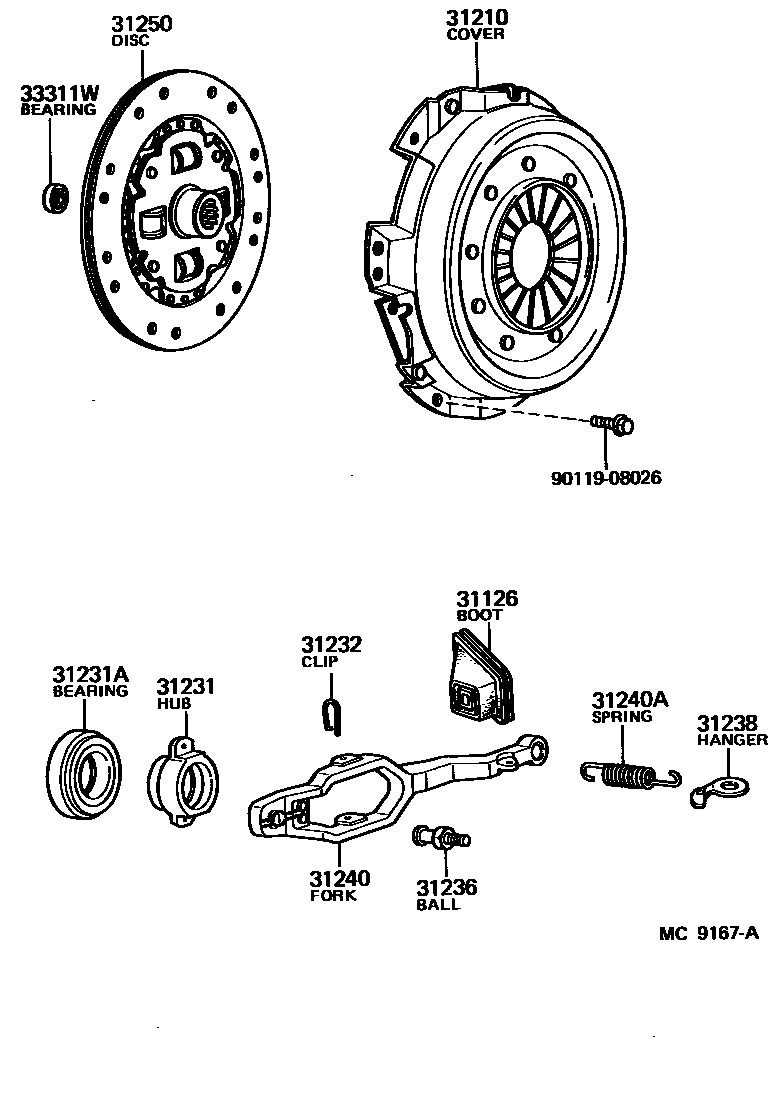

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iCM35198510-198808

main31126-20070iKM3#..5F198510-198808

main31126-27020iKM36..4F,4H198510-198808

31210COVER ASSY, CLUTCH

main31210-12100iKM3#198510-198610

sub31210-12180

main31210-26030iCM35198510-198702

sub31210-26070

main31210-26070iCM35198702-198808

sub31210-22121

main31210-27010iKM3#198610-198808

sub31210-27011

31231HUB, CLUTCH RELEASE BEARING

main31231-27030iKM36..4F,4H198510-198808

main31231-36070iCM35,KM3#..5F,5H198510-198808

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iCM35,KM3#198510-198808

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iCM35,KM3#..5F,5H198510-198808

main31232-30020iKM36..4F,4H198510-198808

31236BALL, RELEASE FORK

main31236-30060iCM35,KM3#198510-198808

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-27010iKM36..4F,4H198510-198808

31240FORK ASSY, CLUTCH RELEASE

main31204-20071iCM35198510-198808

main31204-20080iKM3#..5F198510-198808

main31204-27011iKM36..4F,4H198510-198808

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-18311iKM36..4F,4H198510-198808

31250DISC ASSY, CLUTCH

main31250-20113iCM35198510-198801

sub31250-20114

main31250-27025iKM3#198510-198801

sub31250-27060

main31250-27060iKM3#198801-198808

sub31250-27061

main31250-27080iCM35198801-198808

sub31250-27081

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iKM3#198510-198808

main90363-12004iCM35198510-198808

9011908026

main90119-08026

12 parts on this diagram · 3 diagrams in section
