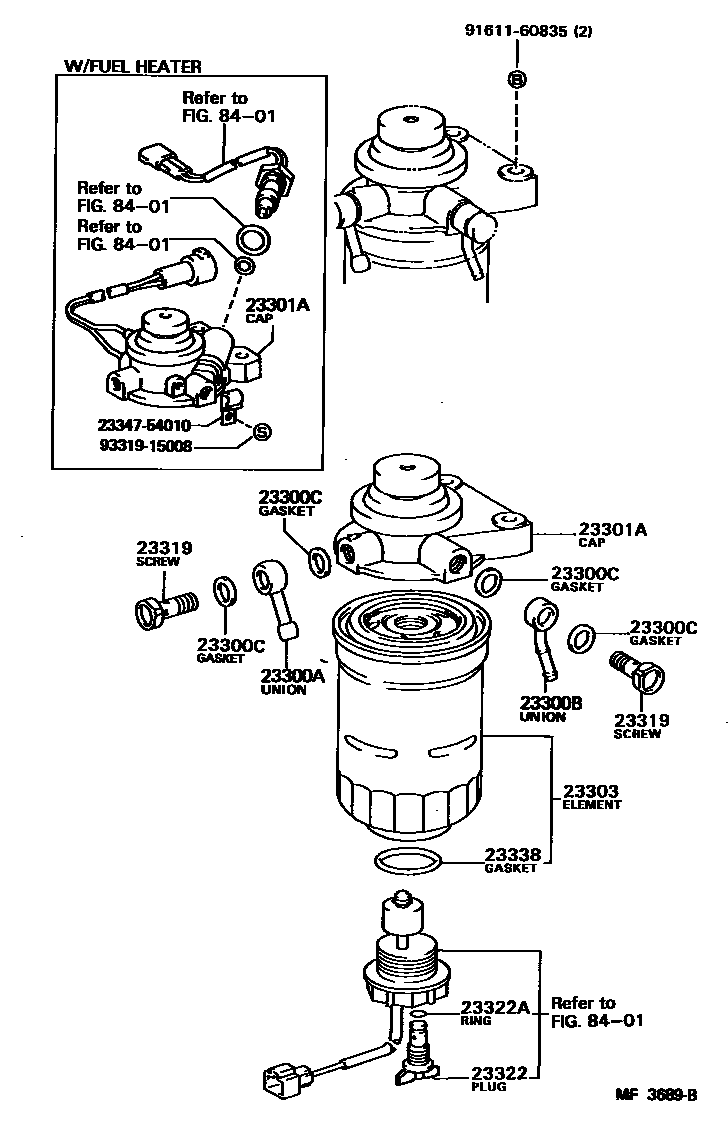

FUEL FILTER

0001 1 0002 1 0003 1

23300FILTER ASSY, FUEL

main23300-25020i5K..KM3#198510-198808

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90405-08016i1C..CM35198510-198608

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main23323-54140i1C..CM35198510-198608

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030i1C..CM35198510-198608

23301ACAP ASSY, FUEL FILTER

main23301-54130i1C..CM35198510-198608

W/FUEL HEATER

main23301-64010i1C..CM35198510-198608

W/O FUEL HEATER

main23301-64120i1C..CM35198608-198808

W/FUEL HEATER

main23301-64130i1C..CM35198608-198808

W/O FUEL HEATER

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i1C..CM35198510-198808

23319SCREW, FUEL PIPE FOLLOW

main90099-18011i1C..CM35198510-198608

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i1C..CM35198510-198808

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1C..CM35198510-198808

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1C..CM35198510-198808

8401

2334754010CLIP, CORD

main23347-54010

9161160835

main91611-60835

9331915008

main93319-15008

14 parts on this diagram · 3 diagrams in section
