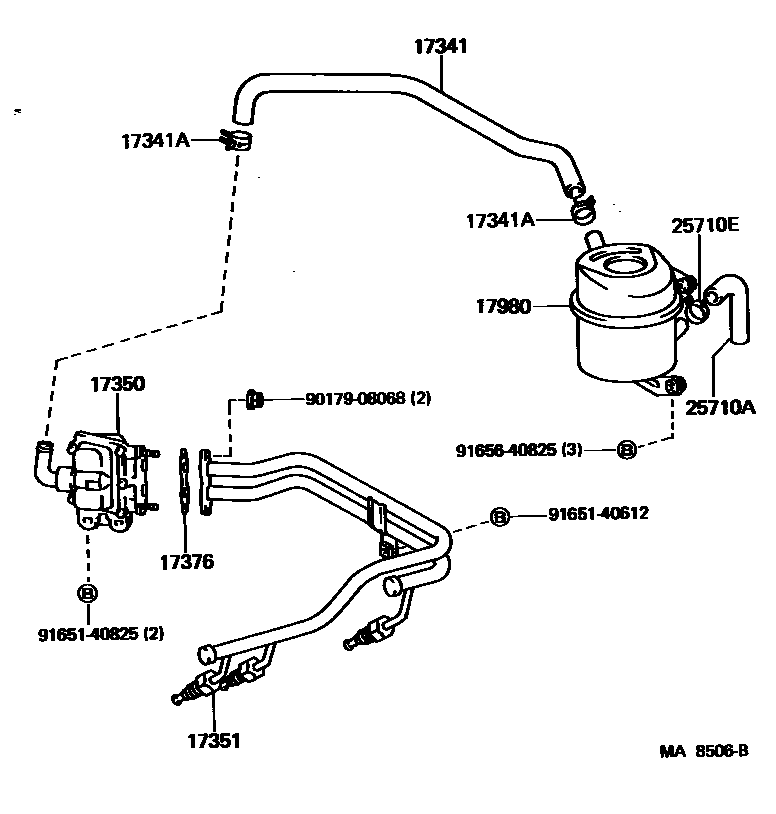

MANIFOLD AIR INJECTION SYSTEM

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-13030i5K..KM36..5F;5K..KM30..DLX198510-198808

SWITZERLAND SPEC

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-26001i5K..KM36..5F;5K..KM30..DLX198510-198808

SWITZERLAND SPEC

sub96134-52600

17350VALVE ASSY, REED

main17350-13080i5K..KM36..5F;5K..KM30..DLX198510-198808

SWITZERLAND SPEC

17351MANIFOLD, AIR INJECTION

main17306-13050i5K..KM36..5F;5K..KM30..DLX198510-198808

SWITZERLAND SPEC

17376GASKET, AIR TUBE, NO.1

main17376-71010i5K..KM36..5F;5K..KM30..DLX198510-198808

SWITZERLAND SPEC

sub17376-71011

17980FILTER ASSY, AIR SUCTION

main17980-13010i5K..KM36..5F;5K..KM30..DLX198510-198808

SWITZERLAND SPEC

25710AHOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)

main90910-05149i5K..KM36..5F;5K..KM30..DLX198510-198808

SWITZERLAND SPEC

25710ECLIP

main90467-26001i5K..KM36..5F;5K..KM30..DLX198510-198808

SWITZERLAND SPEC

sub96134-52600

9017908068

main90179-08068

9165140612

main91651-40612

9165140825

main91651-40825

9165640825

main91656-40825

12 parts on this diagram · 1 diagram in section
