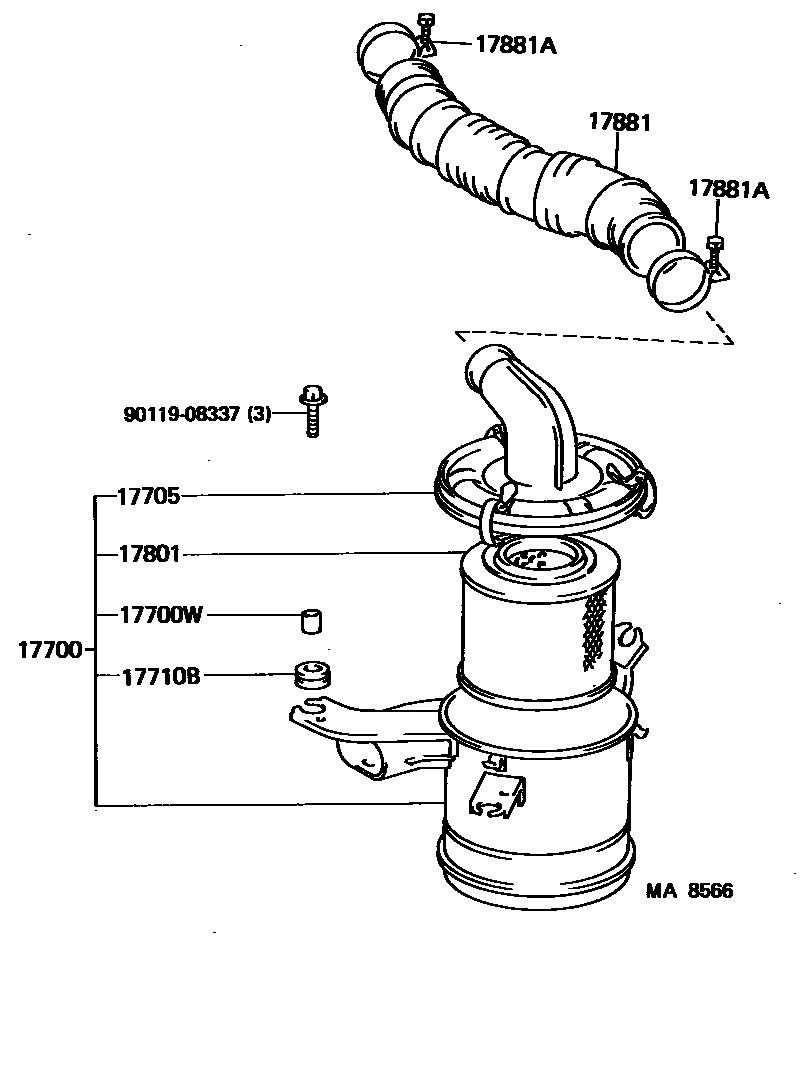

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-13590i5K..KM3#198510-198808

main17700-64170i1C..CM35198510-198808

main17700-64180i1C..CM35..LHD198510-198808

CYCLONE TYPE

17700WSPACER(FOR AIR CLEANER)

main90560-08038i1C..CM35198510-198808

17705CAP SUB-ASSY, AIR CLEANER

main17705-13140i5K..KM3#198510-198808

main17705-64070i1C..CM35..LHD198510-198808

CYCLONE TYPE

main17705-64090i1C..CM35198510-198808

17710BGROMMET

main90480-16014i1C..CM35198510-198808

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-13050i5K..KM3#198510-198808

main17801-54050i1C..CM35198510-198808

main17801-64030i1C..CM35..LHD198510-198808

CYCLONE TYPE

17881HOSE, AIR CLEANER, NO.1

main17881-13140i5K..KM36..RHD198510-198808

main17881-13150i5K..KM3#..LHD198510-198808

main17881-64110i1C..CM35198510-198808

sub17880-64110

sub90460-73003

sub90460-77003

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-80001i5K..KM3#198510-198808

sub90460-80006

main96111-10690i1C..CM35198510-198808

9011908337

main90119-08337

8 parts on this diagram · 4 diagrams in section
