ENGINE OVERHAUL GASKET KIT

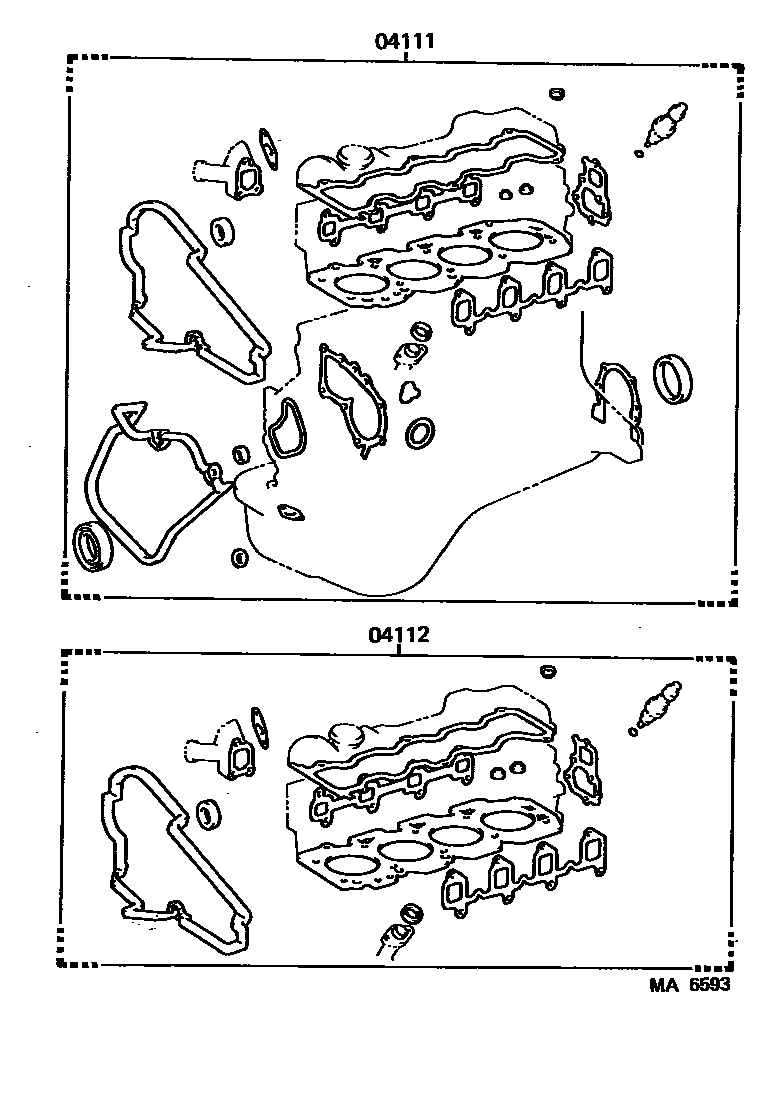

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-13041i198510-198808
sub04111-13042
main04111-64042i198510-198608
sub04111-64043
main04111-64043i198608-198808
sub04111-64044
04112GASKET KIT, ENGINE VALVE GRIND
main04112-13020i198510-198808
sub04112-13021
main04112-64041i198510-198808
sub04112-64042

2 parts on this diagram · 2 diagrams in section
