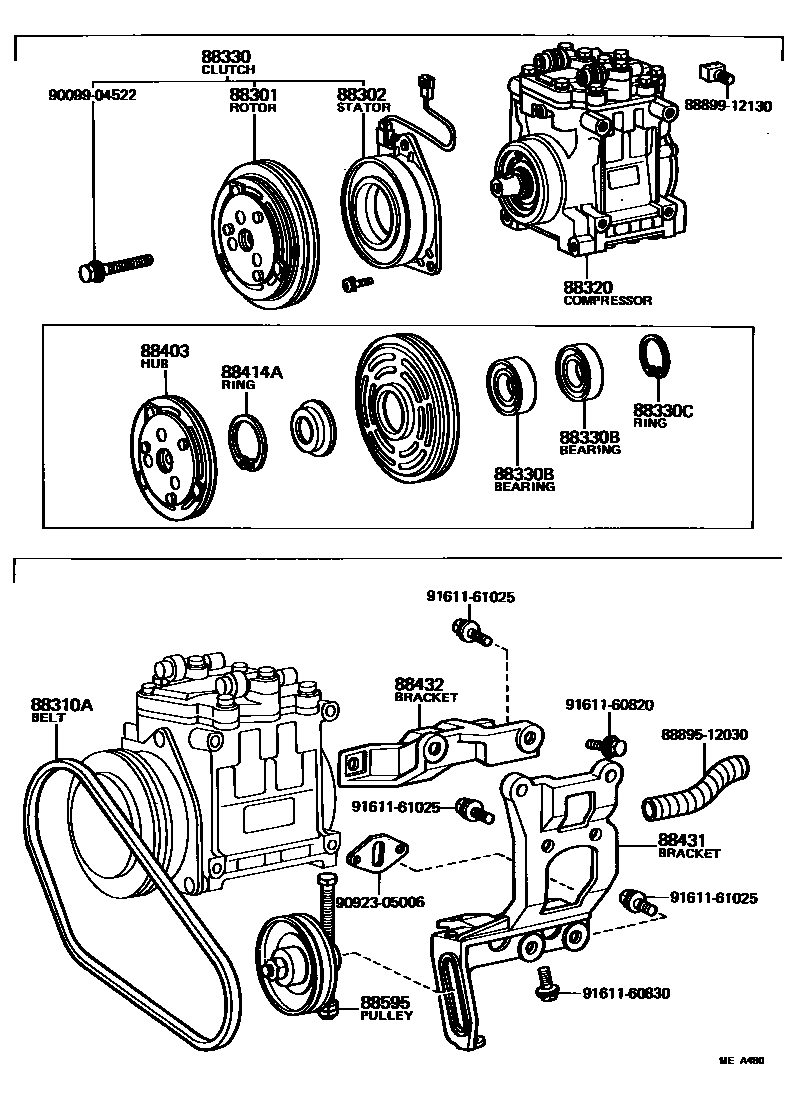

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1 0005 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88401-14060iKM20..LHD..GEN198101-198508

main88412-14030iKM20..RHD..GEN198210-198508

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12050iKM20..(HRF,SRF)..GEN198101-198508

main88411-14060iKM20..RHD..GEN198210-198508

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00950iKM20..(HRF,SRF)..GEN198101-198210

sub99322-50950

main99322-00950iKM20..RHD..GEN198210-198508

W/HEATER

sub99322-50950

main99322-50950iKM20..GEN198210-198508

88320COMPRESSOR ASSY, COOLER

main88320-27020iKM20..(HRF,SRF)..GEN198101-198508

main88320-28050iKM20..RHD..GEN198210-198508

88330CLUTCH ASSY, MAGNET

main88410-14050iKM20..LHD..GEN198101-198508

sub88410-14070

main88410-14110iKM20..RHD..GEN198210-198508

88330BBEARING, MAGNET CLUTCH

main90099-10083iKM20..(HRF,SRF)..GEN198101-198508

main90099-10135iKM20..RHD..GEN198210-198508

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90096-90015iKM20..(HRF,SRF)..GEN198101-198508

main90099-07114iKM20..RHD..GEN198210-198508

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14040iKM20..RHD..GEN198210-198508

main88403-20031iKM20..(HRF,SRF)..GEN198101-198508

88414ARING, SHIELD SNAP

main90096-90005iKM20..(HRF,SRF)..GEN198101-198508

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-27010iKM20..(HRF,SRF)..GEN198101-198508

main88431-28060iKM20..RHD..GEN198210-198508

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88437-27010iKM20..(HRF,SRF)..GEN198101-198508

main88437-28020iKM20..RHD..GEN198210-198508

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-27010iKM20..(HRF,SRF)..GEN198101-198508

main88440-28040iKM20..RHD..GEN198210-198508

8889512030HOLDER, FUSE

main88895-12030

8889912130COVER, EVAPORATOR

main88899-12130

9009904522

main90099-04522

9092305006

main90923-05006

9161160820

main91611-60820

9161160830

main91611-60830

9161161025

main91611-61025

19 parts on this diagram · 3 diagrams in section
