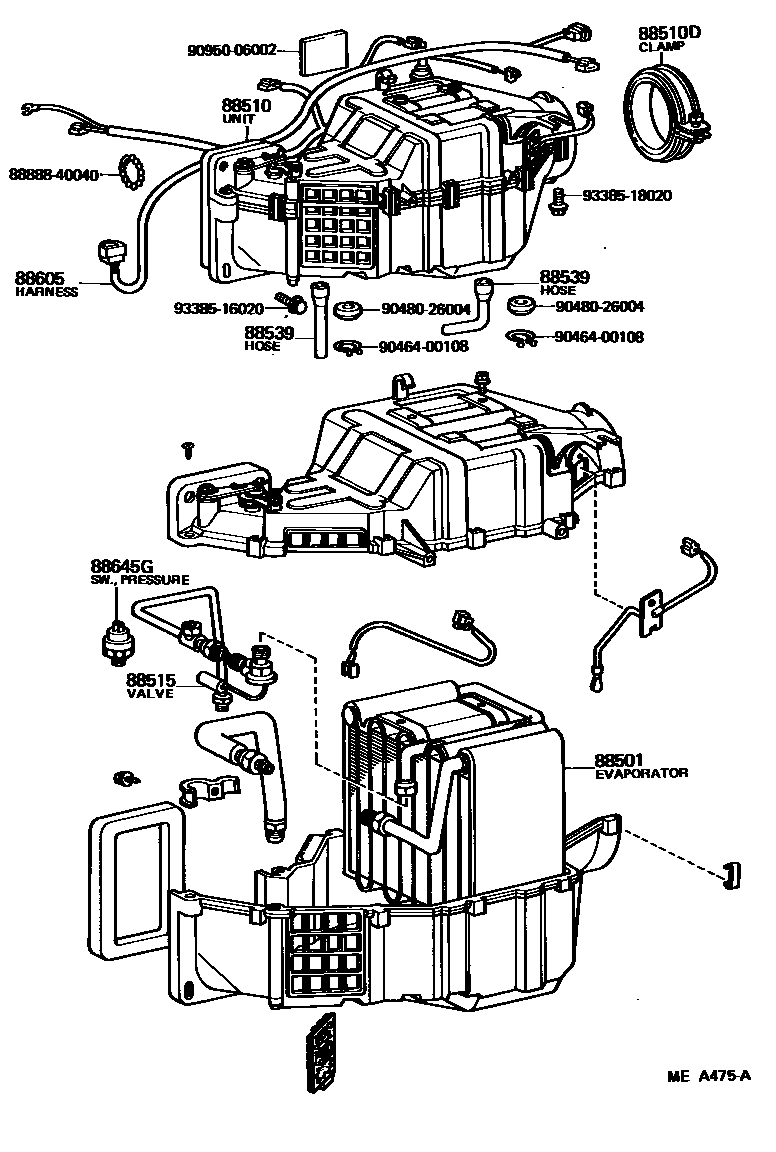

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-95700iKM20..RHD..(HRF,SRF)..GEN198101-198210

main88501-95702iKM20..LHD..GEN198101-198508

88510UNIT ASSY, COOLER

main88510-95706iKM20..LHD..GEN198101-198508

main88510-95707iKM20..(HRF,SRF)..GEN198101-198210

main88510-95713iKM20..RHD..GEN198210-198508

88510DCLAMP, COOLER UNIT

main88894-22040iKM20..(HRF,SRF)..GEN198101-198508

88515VALVE, COOLER EXPANSION

main88515-20040iKM20..(HRF,SRF)..GEN198101-198508

sub88515-16031

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-95700iKM20..(HRF,SRF)..GEN198101-198508

sub88539-95701

main88539-95704iKM20..RHD..GEN198210-198508

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-95700iKM20..(HRF,SRF)..GEN198101-198508

main88605-95712iKM20..RHD..GEN198210-198508

W/HEATER

main88605-95718iKM20..RHD..GEN198210-198508

88645GSWITCH, PRESSURE

main88645-22020iKM20..LHD..GEN198101-198508

TOKAIRIKA

sub88645-30250

main88645-30250iKM20..(HRF,SRF)..GEN198101-198508

DENSO

8888840040BAND (FOR COOLER COMPRESSOR)

main88888-40040

9046400108

main90464-00108

9048026004

main90480-26004

9095006002

main90950-06002

9338516020

main93385-16020

9338518020

main93385-18020

13 parts on this diagram · 3 diagrams in section
