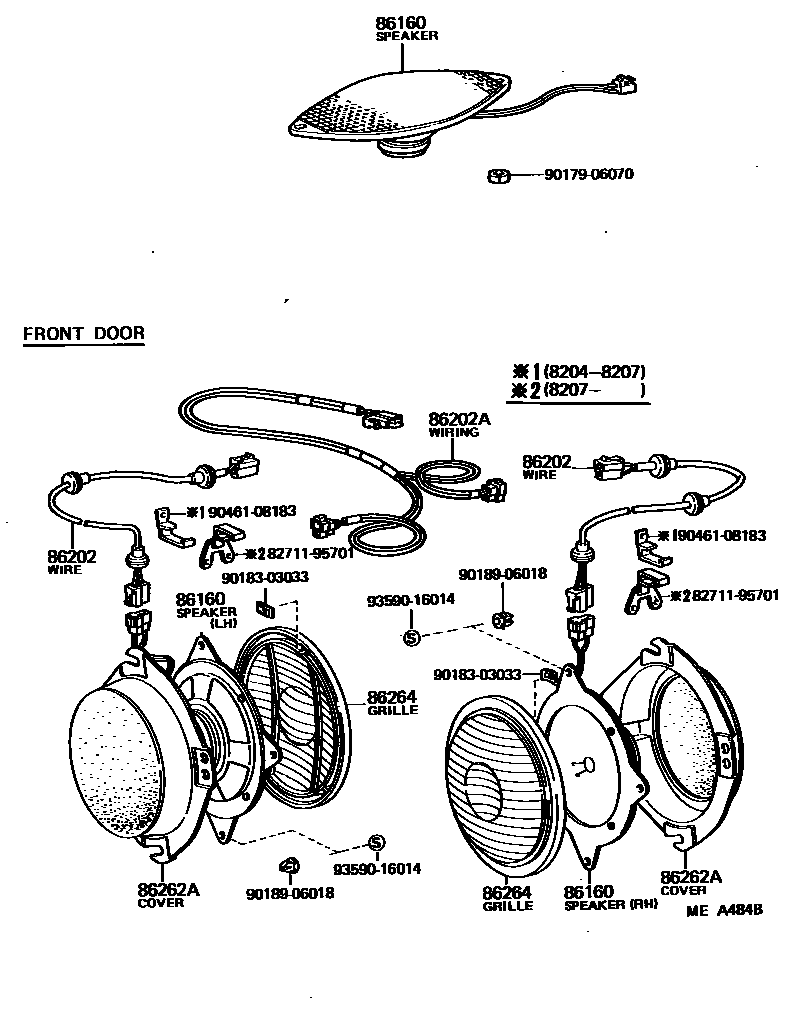

SPEAKER

0001 1 0003 1

86160SPEAKER ASSY, FRONT NO.1

main86160-19565iCM20,KM20,YM21..RHD198210-198508

main86160-32070iCM20,KM20,YM21..RHD..(ARL,GEN)198210-198508

RH,W/TAPE PEAYER

main86160-95700iCM20,KM20..LHD197910-198508

main86160-95710iCM20,KM20,YM21..RHD..(ARL,GEN)198210-198508

LH,W/TAPE PLAYER

main86170-95702iCM20,KM20..LHD..GEN198204-198508

RH

main86180-95702iKM20..05S..ARL198204-198508

LH

86202WIRE, SPEAKER, NO.1

main86203-95704iKM20..05S..ARL198204-198210

86202AWIRE, SPEAKER, NO.2

main86202-95701iKM20..05S..ARL198204-198210

86262ACOVER, SPEAKER, FRONT

main86262-95700iKM20..05S..ARL198204-198210

86264GRILLE, SPEAKER, FRONT

main62529-95702-05iCM20,KM20..LHD..GEN198210-198508

BEIGE,BEIGE

main62529-95702-06iKM20..05S..ARL198204-198210

BROWN,BROWN

8271195701WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95701

9017906070

main90179-06070

9018303033

main90183-03033

9018906018

main90189-06018

9046108183

main90461-08183

9359016014

main93590-16014

11 parts on this diagram · 2 diagrams in section
