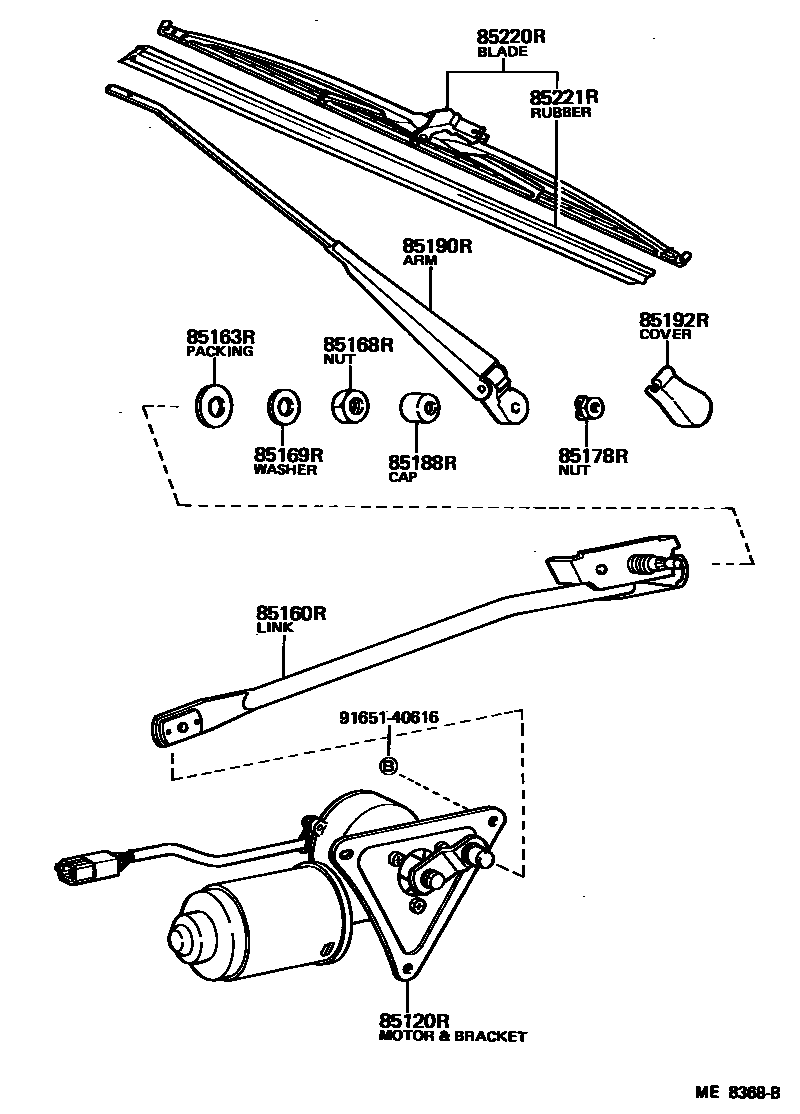

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85120-95703iKM20..05S..ARL197910-198508

main85120-95703iKM20..LHD..09S198308-198508

PHILIPPINE SPEC

main85120-95703iKM20..LHD..V4D..GEN198311-198508

PORTUGAL SPEC

85160RLINK ASSY, REAR WIPER

main85160-95703iKM20..05S..ARL197910-198508

main85160-95703iKM20..LHD..09S198308-198508

PHILIPPINE SPEC

main85160-95703iKM20..LHD..V4D..GEN198311-198508

PORTUGAL SPEC

85163RPACKING, REAR WIPER PIVOT, NO.1

main85185-25040iKM20..05S..ARL197910-198508

main85185-25040iKM20..LHD..09S198308-198508

PHILIPPINE SPEC

main85185-25040iKM20..LHD..V4D..GEN198311-198508

PORTUGAL SPEC

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main85168-55010iKM20..05S..ARL197910-198508

main85168-55010iKM20..LHD..09S198308-198508

PHILIPPINE SPEC

main85168-55010iKM20..LHD..V4D..GEN198311-198508

PORTUGAL SPEC

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90209-12002iKM20..05S..ARL197910-198508

main90209-12002iKM20..LHD..09S198308-198508

PHILIPPINE SPEC

main90209-12002iKM20..LHD..V4D..GEN198311-198508

PORTUGAL SPEC

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iKM20..05S..ARL197910-198508

main90179-06158iKM20..LHD..09S198308-198508

PHILIPPINE SPEC

main90179-06158iKM20..LHD..V4D..GEN198311-198508

PORTUGAL SPEC

85188RCAP, REAR WIPER PIVOT, NO.1

main85247-87501iKM20..05S..ARL197910-198508

main85247-87501iKM20..LHD..09S198308-198508

PHILIPPINE SPEC

main85247-87501iKM20..LHD..V4D..GEN198311-198508

PORTUGAL SPEC

85190RARM ASSY, REAR WIPER

main85190-95705iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main85190-95712iKM20..05S..ARL198210-198508

main85190-95712iKM20..LHD..09S198308-198508

PHILIPPINE SPEC

main85190-95712iKM20..LHD..V4D..GEN198311-198508

PORTUGAL SPEC

85192RCOVER, REAR WIPER ARM

main85195-95700iKM20..05S..ARL197910-198508

main85195-95700iKM20..LHD..09S198308-198508

PHILIPPINE SPEC

main85195-95700iKM20..LHD..V4D..GEN198311-198508

PORTUGAL SPEC

85220RBLADE ASSY, REAR WIPER

main85220-95701iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main85220-95711iKM20..LHD..V4D..GEN198311-198508

PORTUGAL SPEC

main85220-95711iKM20..05S..ARL198210-198508

main85220-95711iKM20..LHD..09S198308-198508

PHILIPPINE SPEC

main85220-95A07iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198103-198210

*FRG

sub85220-95701

85221RBLADE, REAR WIPER

main85221-95A02iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198103-198210

*FRG

sub85221-20H90

main85221-95A02iKM20..05S..ARL198210-198508

sub85221-20H90

main85221-95A02iKM20..LHD..09S198308-198508

PHILIPPINE SPEC

sub85221-20H90

main85221-95A02iKM20..LHD..V4D..GEN198311-198508

PORTUGAL SPEC

sub85221-20H90

9165140616

main91651-40616

12 parts on this diagram · 1 diagram in section
