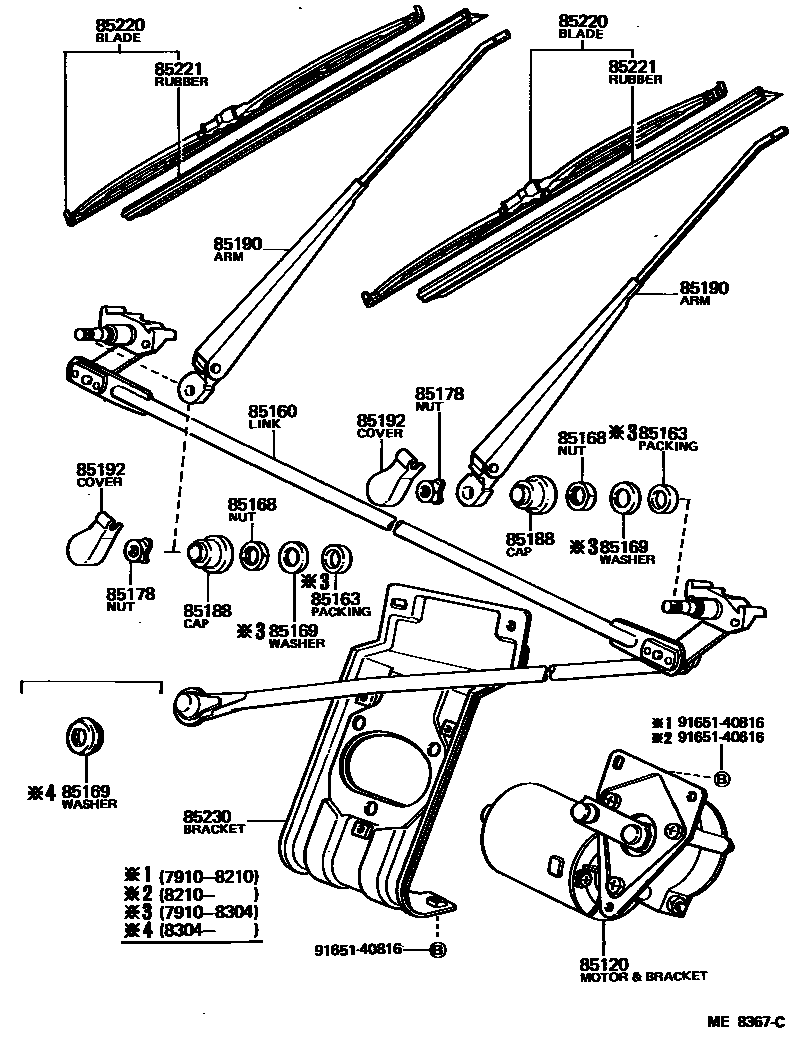

WINDSHIELD WIPER

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-95700iKM20..RHD197910-198007

sub85120-95707

main85120-95701iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198007

sub85120-95708

main85120-95705iKM20..RHD..EUR197910-198210

COLD SPEC

main85120-95706iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

COLD SPEC

main85120-95707iKM20..RHD198007-198210

sub85120-95705

main85120-95708iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)198007-198210

sub85120-95706

main85120-95714iCM20,KM20,YM2#..RHD..(ARL,GEN)198210-198508

sub85120-95716

main85120-95715iCM20,KM20..LHD..GEN198210-198508

sub85120-95717

main85120-95716iCM20,KM20..RHD..EUR198210-198508

main85120-95717iCM20,KM20..LHD..EUR198210-198508

85160LINK ASSY, WINDSHIELD WIPER

main85160-95702iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main85160-95704iCM20,KM20..RHD198210-198311

sub85160-95706

main85160-95705iCM20,KM20..LHD198210-198508

main85160-95706iCM20,KM20,YM2#..RHD198311-198508

85163PACKING, WINDSHIELD WIPER PIVOT

main85185-95010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main85185-95700iCM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S198210-198304

sub85179-95700

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main85168-95700iCM20,KM20,YM2#198210-198508

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85169-95010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main85169-95700iCM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S198210-198304

sub85179-95700

main85179-95700iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198304-198508

85178NUT (FOR FRONT WIPER ARM SETTING)

main90099-05129iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main90179-08026iCM20,KM20,YM2#198210-198508

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-95010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main85135-95700iCM20,KM20,YM2#198210-198508

85190ARM ASSY, WINDSHIELD WIPER

main85190-95703iKM20..RHD197910-198103

sub85190-95706

sub85210-95700

main85190-95704iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198103

sub85190-95708

sub85210-95701

main85190-95706iKM20..RHD..(ARL,GEN)198103-198210

RH

main85190-95707iKM20..RHD..EUR198103-198210

RH

main85190-95708iKM20..LHD..GEN198103-198210

LH

main85190-95709iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198103-198210

LH

main85190-95710iCM20,KM20,YM2#..RHD..(ARL,GEN)198210-198508

RH

main85190-95711iCM20,KM20..LHD198210-198508

RH

main85190-95714iCM20,KM20..RHD..EUR198210-198508

RH

main85210-95700iKM20..RHD198103-198210

LH

main85210-95701iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)198103-198210

RH

main85210-95702iCM20,KM20,YM2#..RHD198210-198508

LH

main85210-95703iCM20,KM20..LHD..EUR198210-198508

LH

main85210-95704iCM20,KM20..LHD..GEN198210-198508

LH

85192COVER, WINDSHIELD WIPER ARM

main85195-95401iCM20,KM20,YM2#197910-198508

85220BLADE ASSY, WINDSHIELD WIPER

main85220-95702iKM20..RHD..(ARL,GEN)197910-198103

main85220-95703iKM20..LHD..GEN197910-198103

main85220-95709iCM20,KM20,YM2#..RHD198210-198508

main85220-95710iCM20,KM20..LHD198210-198508

main85220-95A04iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198103

main85220-95A05iKM20..RHD198103-198210

main85220-95A06iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)198103-198210

85221BLADE, WINDSHIELD WIPER

main85221-95700iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198103

sub85221-14H90

main85221-95A01iCM20,KM20,YM2#198103-198508

sub85221-14H90

85230BRACKET ASSY, WINDSHIELD WIPER

main85109-95700iKM20..RHD197910-198210

main85109-95701iCM20,KM20..LHD197910-198508

main85109-95702iCM20,KM20,YM2#..RHD198210-198508

9165140616

main91651-40616

9165140816

main91651-40816

14 parts on this diagram · 1 diagram in section
