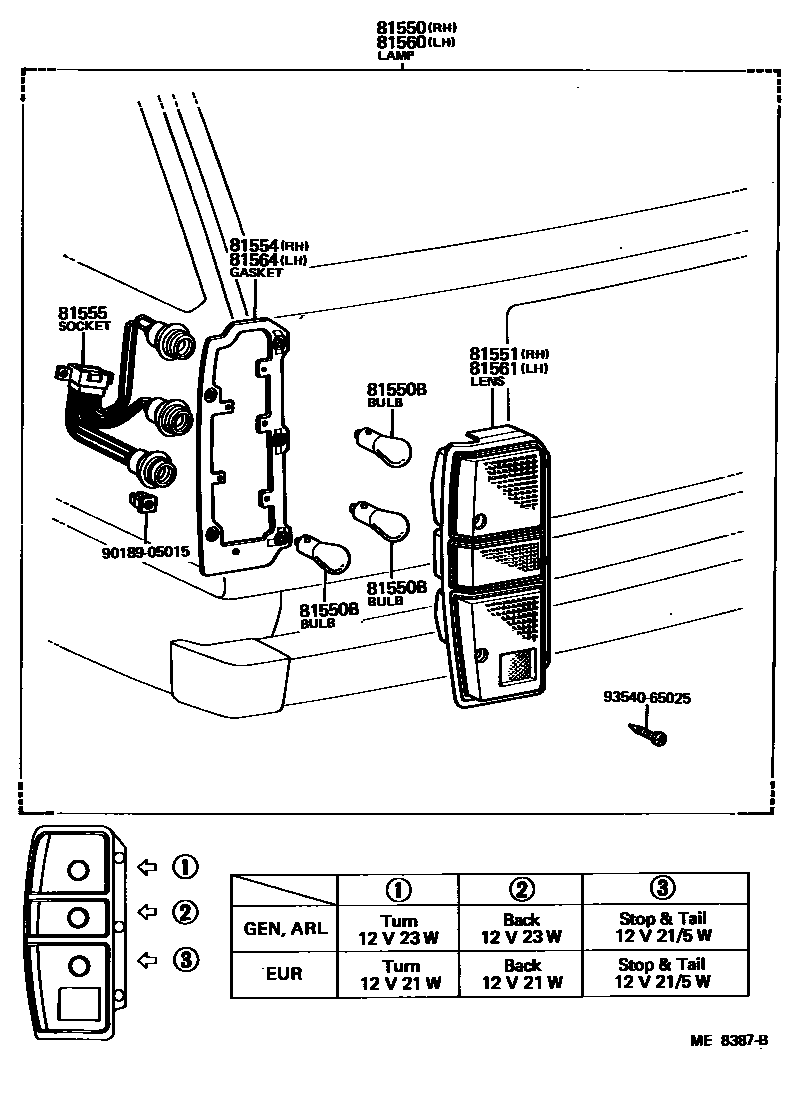

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-29755iKM20..03S..ARL197910-198210

main81550-29925iKM20..GEN..IV197910-198210

sub81550-95010

main81550-80067iKM20..(HRF,SRF)..(ARL,GEN)197910-198210

main81550-80069iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main81550-80070iKM20..T1..CBU197910-198210

main81550-80155iCM20,KM20..EUR198210-198508

main81550-80156iCM20,KM20,YM2#..ARL,GEN198210-198508

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iKM20..03S..ARL197910-198508

12V 21W,12V 21W

main99132-11230iKM20..TR..GEN197910-198508

12V 23W,12V 23W

main99132-21210iCM20,KM20,YM2#197910-198508

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iKM20..T3..GEN197910-198210

main81551-26040iKM20..03S..ARL197910-198210

sub81551-60180

main81551-95700iKM20..(HRF,SRF)..(ARL,GEN)197910-198210

sub81551-95701

main81551-95701iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main81551-95704iCM20,KM20..EUR198210-198508

main81551-95705iCM20,KM20,YM2#..ARL,GEN198210-198508

main81551-95A00iKM20..T1..CBU197910-198210

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iKM20..T3..GEN197910-198210

main81552-26040iKM20..03S..ARL197910-198210

main81552-87401iKM20..T1..CBU197910-198210

main81554-95700iCM20,KM20,YM2#..HRF,SRF197910-198508

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-95700iKM20..(HRF,SRF)..(ARL,GEN)197910-198508

main81555-95701iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

sub81555-95700

81560LAMP ASSY, REAR COMBINATION, LH

main81560-29745iKM20..03S..ARL197910-198210

main81560-80019iKM20..GEN..IV197910-198210

sub81560-95010

main81560-80069iKM20..(HRF,SRF)..(ARL,GEN)197910-198210

main81560-80071iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main81560-80072iKM20..T1..CBU197910-198210

main81560-80160iCM20,KM20..EUR198210-198508

main81560-80161iCM20,KM20,YM2#..ARL,GEN198210-198508

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iKM20..GEN..IV197910-198210

main81561-26040iKM20..03S..ARL197910-198210

sub81561-60080

main81561-95700iKM20..(HRF,SRF)..(ARL,GEN)197910-198210

sub81561-95701

main81561-95701iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main81561-95704iCM20,KM20..EUR198210-198508

main81561-95705iCM20,KM20,YM2#..ARL,GEN198210-198508

main81561-95A00iKM20..T1..CBU197910-198210

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-25060iKM20..GEN..IV197910-198210

main81562-26040iKM20..03S..ARL197910-198210

main81562-87401iKM20..T1..CBU197910-198210

main81564-95700iCM20,KM20,YM2#..HRF,SRF197910-198508

9018905015

main90189-05015

9354065025

main93540-65025

10 parts on this diagram · 3 diagrams in section
