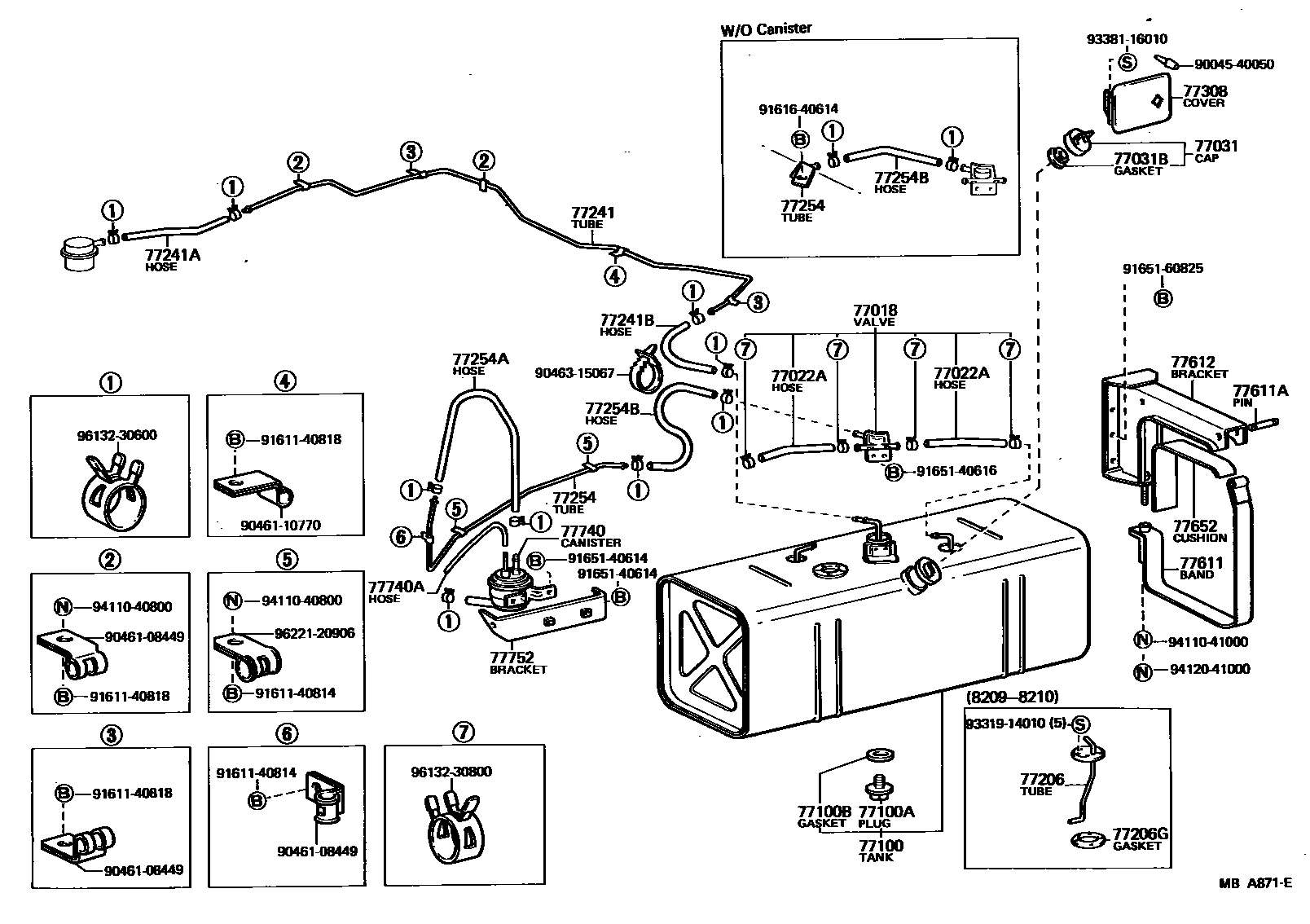

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-27010iKM20..TR197910-198210

main77018-27020iCM20,YM20197910-198508

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77271-28011iCM20,KM20,YM2#..HRF,SRF197910-198508

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77259-27070iCM20,KM20,YM2#..HRF,SRF197910-198508

L=800

main77259-27080iKM20..V4D..ARL197910-198508

L=600

main77259-27110iYM21198311-198508

L=600

main95332-08020iKM20..TR197910-198210

L=200(*H,L=130)

sub95333-08020

77031CAP ASSY, FUEL TANK

main77310-12100iKM20,YM2#198210-198508

main77310-14070iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

main77310-35061iCM20198210-198508

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iKM20..T1197910-198508

77100TANK ASSY, FUEL

main77001-27040iKM20..TR197910-198209

sub77001-27041

sub77017-27090

sub77169-14020

sub93319-14010

sub95332-06030

main77001-27041iKM20..TR198209-198210

main77001-27050iKM20..HRF,SRF197910-198210

main77001-27051iKM20..V4D..02S;KM20..03S,05S,06S,08S,09S198210-198508

main77001-27070iKM20..V..4F;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..05S..EUR;KM20..LHD..V..SRF..4H..EUR198004-198210

HOLLAND SPEC

main77001-27071iCM20,KM20..LHD..V..(4F,5F)198210-198305

HOLLAND SPEC

main77001-27080iCM20198210-198508

main77001-27180iYM2#198501-198508

77100APLUG(FOR FUEL TANK)

main90105-12018iKM20..TR197910-198210

main90341-20003iCM20,KM20,YM2#198210-198508

sub90341-20004

main90341-24036iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

77100BGASKET(FOR FUEL TANK)

main90430-12245iKM20..TR197910-198210

main90430-20006iCM20,KM20,YM2#198210-198508

main90430-24047iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-27010iCM20198210-198508

main77017-27030iCM20..LHD..EUR198210-198305

HOLLAND SPEC

main77017-27040iKM20..V..4F198210-198305

HOLLAND SPEC

main77017-27050iKM20,YM2#198210-198508

main77017-27090iKM20..TR198209-198210

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iKM20..TR198209-198508

77241TUBE, FUEL MAIN, NO.1

main77251-27030iKM20..TR197910-198210

main77251-27040iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

main77251-27041iYM2#;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S198210-198508

main77251-27100iCM20..ARL,GEN198210-198508

main77251-27110iKM20..HRF..EUR;KM20..SRF..08S;KM20..V4D..SRF..EUR198404-198508

main77251-27130iCM20..EUR198404-198508

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-06020iYM2#198311-198508

L=200(*H,L=180)

sub95333-06020

main95332-06030iKM20..TR197910-198210

L=300(*H,L=280)

sub95333-06030

main95332-06030iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

L=300(*H,L=220)

sub95333-06030

main95332-06040iKM20198210-198508

L=400

sub95333-06040

main95332-08020iCM20198210-198508

L=200

sub95333-08020

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06020iKM20..T1197910-198210

L=200

sub95333-06020

main95332-06030iKM20..T3197910-198210

L=300(*H,L=240)

sub95333-06030

main95332-06030iKM20,YM2#198210-198508

L=300

sub95333-06030

main95332-06060iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

L=600(*H,L=460)

sub95333-06060

main95332-08030iCM20198210-198508

L=300(*H,L=260)

sub95333-08030

77254TUBE, FUEL EMISSION, NO.1

main77244-27010iKM20..TR..GEN197910-198210

main77263-27010iKM20..03S..ARL197910-198210

main77263-27020iKM20..V4D..ARL197910-198210

main77263-27021iKM20,YM21..ARL198210-198508

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main77279-27010iKM20,YM21..ARL198210-198508

L=420

main90445-12042iKM20..03S..ARL197912-198210

L=520

sub90445-12170

main95332-06030iKM20..V4D..ARL197910-198210

L=300

sub95333-06030

main95332-06060iKM20..03S..ARL197910-197912

L=600(*H,L=550)

sub95333-06060

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main95332-06030iKM20..TR..GEN197910-198210

L=300(*H,L=220)

sub95333-06030

main95332-06040iKM20..03S..ARL197910-198210

L=400(*H,L=380)

sub95333-06040

77308COVER SUB-ASSY, FUEL INLET BOX

main77310-95700iCM20,KM20,YM2#..HRF,SRF197910-198508

main77350-87401iKM20..T1197910-198210

77611BAND, FUEL TANK

main77601-27010iKM20..TR197910-198210

sub77601-27011

main77601-27020iCM20,KM20,YM2#..HRF,SRF197910-198508

main77601-27040iKM20..HRF..VSP..4H..EUR;KM20..HRF..4H..05S..EUR;CM20,KM20..LHD..V..(4F,5F);KM20..LHD..V..SRF..4H..EUR198004-198305

HOLLAND SPEC

77611APIN (FOR FUEL TANK BAND)

main77629-25010iCM20,KM20,YM2#197910-198508

77612BRACKET SUB-ASSY, FUEL TANK

main77501-27010iKM20..T1197910-198210

main77501-27020iKM20..T3197910-198210

77652CUSHION, FUEL TANK, NO.1

main77651-27010iKM20..TR197910-198210

sub77651-27110

main77651-27020iCM20;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198211

sub77651-27100

main77651-27100iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198211-198508

77740CANISTER ASSY, CHARCOAL

main77740-27020iKM20..03S..ARL197910-198210

main77740-27030iKM20..V4D..ARL197910-198402

main77740-27070iYM21198311-198508

main77740-27130iKM20..EUR198210-198508

main77740-27150iKM20..ARL198402-198508

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95411-10690iYM21198311-198508

*H,L=650

sub95411-10695

main95411-19960iKM20..V4D..ARL197910-198210

*H,L=390,MARK=#*

sub90999-92003

main95411-19960iKM20..ARL198210-198402

*H,L=510,MARK=#*

sub90999-92003

main95411-19960iKM20..EUR198210-198508

*H,L=360,MARK=#*

sub90999-92003

main95411-19960iKM20..03S..ARL197910-198210

*H,L=600,MARK=#*

sub90999-92003

main95411-19995iKM20..ARL198402-198508

*H,L=700,MARK=#*

sub90999-92004

77752BRACKET, CHARCOAL CANISTER SUPPORT

main77752-27010iKM20..03S..ARL197910-198210

9004540050

main90045-40050

9046108449

main90461-08449

9046110770

main90461-10770

9046315067

main90463-15067

9161140814

main91611-40814

9161140818

main91611-40818

9161640614

main91616-40614

9165140614

main91651-40614

9165140616

main91651-40616

9165160825

main91651-60825

9331914010

main93319-14010

9338116010

main93381-16010

9411040800

main94110-40800

9411041000

main94110-41000

9412041000

main94120-41000

9613230600

main96132-30600

9613230800

main96132-30800

9622120906

main96221-20906

42 parts on this diagram · 6 diagrams in section
