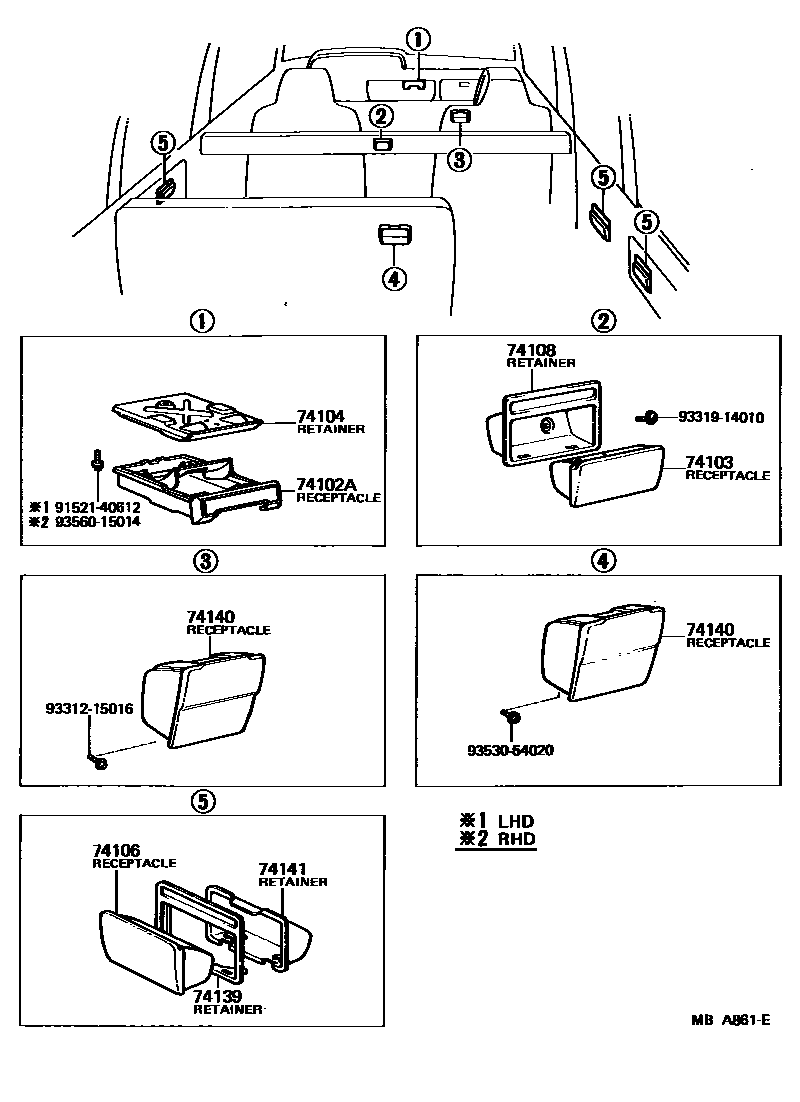

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74101-95705-01iCM20,KM20..LHD198210-198508

BLACK,BLACK

sub74101-95705

main74101-95705-05iCM20,KM20..LHD198210-198508

BEIGE,BEIGE

sub74101-95705

main74101-95705-06iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

BROWN,BROWN

sub74101-95705

main74102-95700iCM20,KM20,YM2#..RHD198210-198508

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74105-10010-06iKM20..RHD..VSG..(EUR,GEN)197910-198210

SEPARATOR,BROWN,BROWN

sub74105-10010

main74105-10010-25iKM20..RHD..06S198210-198508

SEPARATOR,BEIGE,BEIGE

sub74105-10010

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-95701iCM20,KM20..LHD197910-198508

main74104-95702iKM20..RHD197910-198210

main74104-95704iCM20,KM20,YM2#..RHD198210-198508

sub74104-95705

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74105-10010-06iKM20..05S..ARL197910-198210

SIDE TRIM,BROWN,BROWN

sub74105-10010

main74105-10010-25iYM20198210-198508

SIDE TRIM,BEIGE,BEIGE

sub74105-10010

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74141-95550iKM20..RHD..VSG197910-198508

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-10030iKM20..BUS,WG197910-198508

main74135-10030iKM20..LHD..09S198308-198508

PHILIPPINE SPEC,FULL TRIM

74140RECEPTACLE ASSY, ASH(FOR SEAT)

main74120-95A00iKM20..LHD..V5D..VSG197910-198508

FR SEAT BACK

main74130-10060-06iKM20..BUS,WG197910-198110

RR SEAT BACK,BROWN

sub74130-14020

sub74130-10060

main74130-14020-06iKM20..08S,09S198110-198210

RR SEAT BACK,BROWN

sub74130-14020

sub74130-95401

main74130-14020-35iKM20,YM21..08S,09S198210-198508

RR SEAT BACK,BEIGE,BEIGE

sub74130-14020

sub74130-95401

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030iKM20..BUS,WG197910-198508

main74137-10030iKM20..LHD..09S198308-198508

PHILIPPINE SPEC,FULL TRIM

9152140612

main91521-40612

9331215016

main93312-15016

9331914010

main93319-14010

9353054020

main93530-54020

9356015014

main93560-15014

13 parts on this diagram · 1 diagram in section
