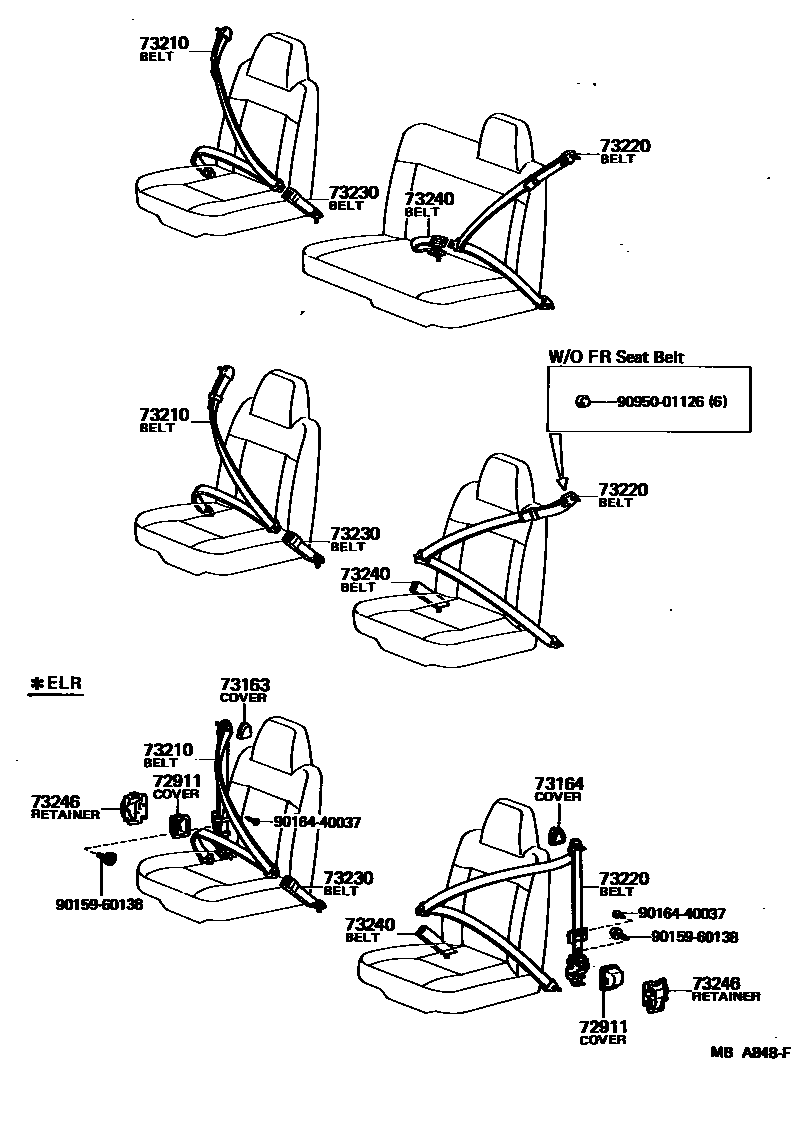

SEAT BELT

0001 1 0003 1 0006 1 0007 1

72911COVER, SEAT BELT RETRACTOR

main73207-87401iKM20..03S..ARL197910-198210

73163COVER, FRONT SEAT BELT, RH

main72913-95400-06iKM20..VSP..02S;KM20..(03S,05S,07S,08S)..(ARL,EUR)197910-198210

BROWN,BROWN

sub72913-95400

73164COVER, FRONT SEAT BELT, LH

main72913-95400-06iKM20..VSP..02S;KM20..(03S,05S,07S,08S)..(ARL,EUR)197910-198210

BROWN,BROWN

sub72913-95400

73210BELT ASSY, FRONT SEAT OUTER, RH

main72801-87401iKM20..03S..ARL197910-198210

main72801-95700iKM20..GEN197910-198101

main72801-95701iKM20..V4D..ARL197910-198210

main72801-95702iKM20..4F..STD;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main72802-95700iKM20..RHD..EUR197910-198210

main73210-95707iKM20..GEN198101-198210

main73210-95708iKM20..DLX198108-198210

main73210-95711iCM20,KM20..LHD..EUR198210-198508

main73210-95711iKM20..LHD..V4D..06S198311-198508

W/*ELR,PORTUGAL SPEC

main73210-95712iKM20..HRF..06S198210-198402

NEW ZEALAND SPEC

main73210-95712iYM20198210-198508

main73210-95714-05iCM20,KM20..GEN198210-198508

BEIGE,BEIGE

sub73210-95714

main73210-95715iCM20,KM20..RHD..EUR198210-198508

73220BELT ASSY, FRONT SEAT OUTER, LH

main72801-87401iKM20..03S..ARL197910-198210

main72801-95700iKM20..GEN197910-198101

main72801-95701iKM20..V4D..ARL197910-198210

main72802-95700iKM20..4F..STD;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main73210-95707iKM20..GEN198101-198210

main73210-95714-05iCM20,KM20..GEN198210-198508

BEIGE,BEIGE

sub73210-95714

main73220-95702iKM20..DLX198108-198210

main73220-95704iCM20,KM20..EUR198210-198508

main73220-95704iKM20..LHD..V4D..06S198311-198508

W/*ELR,PORTUGAL SPEC

main73220-95705iKM20..HRF..06S198210-198402

NEW ZEALAND SPEC

main73220-95705iCM20,KM20,YM21..ARL198210-198508

73230BELT ASSY, FRONT SEAT INNER, RH

main72803-95700iKM20..GEN197910-198101

main72803-95701iKM20..VSP..02S;KM20..(03S,05S,07S,08S)..(ARL,EUR)197910-198210

main73230-95704iKM20..GEN198101-198210

main73230-95705iKM20..HRF..06S198210-198402

NEW ZEALAND SPEC

main73230-95705iKM20..ARL,EUR198210-198508

main73230-95705iKM20..LHD..V4D..06S198311-198508

W/*ELR,PORTUGAL SPEC

main73230-95708iCM20,YM21..ARL,EUR198210-198508

main73230-95709-05iCM20,KM20..GEN198210-198508

BEIGE,BEIGE

sub73230-95709

73240BELT ASSY, FRONT SEAT INNER, LH

main72804-95700iKM20..RHD..GEN197910-198101

main72804-95701iKM20..RHD..(ARL,EUR)197910-198210

main72804-95702iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main72804-95704iKM20..LHD..GEN197910-198101

main73240-95704iKM20..RHD..GEN198101-198210

main73240-95705iKM20..LHD..GEN198101-198210

main73240-95707iKM20..HRF..06S198210-198402

NEW ZEALAND SPEC

main73240-95707iKM20..RHD..(ARL,EUR)198210-198508

main73240-95709iCM20..EUR198210-198508

main73240-95711iKM20..RHD..GEN198210-198508

main73240-95713-05iCM20..GEN198210-198508

BEIGE,BEIGE

sub73240-95713

main73240-95715iKM20..LHD..GEN198210-198508

main73240-95716iCM20..ARL198210-198508

main73240-95719iKM20..LHD..EUR198210-198508

main73240-95719iKM20..LHD..V4D..06S198311-198508

W/*ELR,PORTUGAL SPEC

main73240-95725iYM21198311-198508

73246RETAINER, SEAT BELT RETRACTOR COVER, LH

main73223-95702iKM20,YM21..ARL198210-198508

LH

main73223-95703iCM20,KM20..LHD..EUR198210-198508

RH

9015960138

main90159-60138

9016440037

main90164-40037

9095001126

main90950-01126

11 parts on this diagram · 4 diagrams in section
