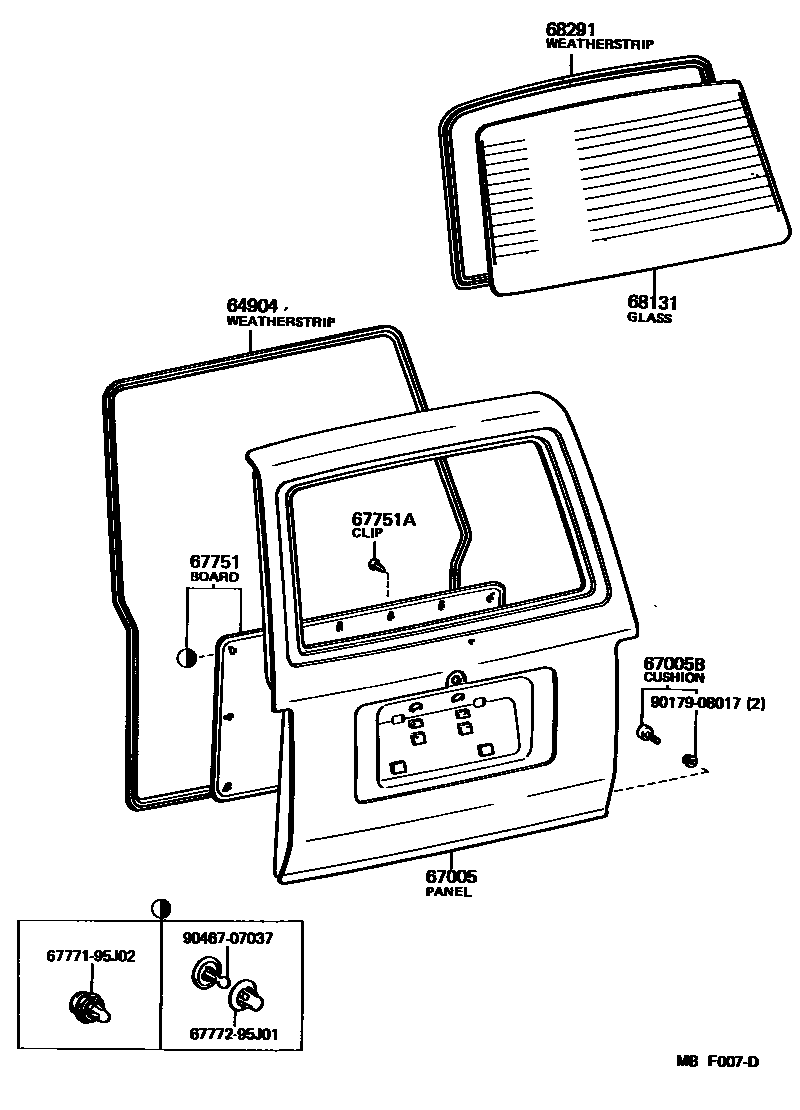

BACK DOOR PANEL & GLASS

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67875-95702iKM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S)197910-198107

sub67875-95706

main67875-95706iCM20,KM20,YM2#..HRF,SRF198107-198508

67005PANEL SUB-ASSY, BACK DOOR

main67005-95711iKM20..(HRF,SRF)..(ARL,GEN)197910-198210

sub67005-95726

main67005-95712iKM20..4F..STD;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main67005-95713iKM20..4F..STD;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

W/*DEF

sub67005-95712

sub90950-01056

main67005-95714iKM20..4F..STD;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

W/*RW

main67005-95715iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

W/*RW,*DEF

sub67005-95714

sub90950-01056

main67005-95726iKM20..LHD..V4D..06S198311-198508

PORTUGAL SPEC,W/*DEF

main67005-95726iCM20,KM20..ARL,GEN198210-198311

main67005-95728iKM20..LHD..V4D..06S198311-198508

PORTUGAL SPEC,W/*RW,*DEF

main67005-95728iCM20,KM20,YM21..V4D..ARL198210-198508

W/*RW

main67005-95728iKM20..LHD..09S198308-198508

PHILIPPINE SPEC,W/*RW

main67005-95730iCM20,KM20..V..EUR198210-198508

main67005-95732iCM20,KM20..V..EUR198210-198508

W/*RW

main67005-95734iKM20..05S..ARL198204-198210

W/*DEF

sub67005-95726

main67005-95735iKM20..05S..ARL198204-198210

W/*RW

sub67005-95728

main67005-95736iKM20..05S..ARL198204-198210

W/*RW,*DEF

sub67005-95728

main67005-95742iKM20..08S198210-198508

main67005-95743iKM20..08S198210-198508

W/*DEF

sub67005-95742

main67005-95744iKM20..08S198210-198508

W/*RW

main67005-95745iKM20..08S198210-198508

W/*RW,*DEF

sub67005-95744

main67005-95746iKM20..HRF..06S198210-198508

W/INSIDE HANDLE

main67005-95747iKM20..HRF..06S198210-198508

W/INSIDE HANDLE,*DEF

sub67005-95746

main67005-95748iYM20198402-198508

67005BCUSHION(FOR BACK DOOR PANEL)

main69406-95701iCM20,KM20,YM2#..HRF,SRF197910-198508

67751BOARD, BACK DOOR TRIM

main64780-95700-05iKM20..05S..ARL198210-198508

BEIGE,BEIGE

sub64780-95700

main64780-95700-06iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)..STD197910-198210

BROWN,BROWN

sub64780-95700

main64780-95701-05iKM20,YM21..(05S,08S)..ARL198311-198508

BEIGE,BEIGE

sub64780-95701

main64780-95701-05iKM20..05S..ARL198210-198508

W/RR WIPER,BEIGE,BEIGE

sub64780-95701

main64780-95701-05iKM20..LHD..09S198308-198508

PHILIPPINE SPEC,W/RR WIPER,BEIGE

sub64780-95701

main64780-95701-06iKM20..05S..ARL197910-198210

W/RR WIPER,BROWN,BROWN

sub64780-95701

main64780-95701-06iKM20..DLX198108-198210

BROWN,BROWN

sub64780-95701

main64780-95703iKM20..WG..STD198101-198210

W/INSIDE HANDLE,RR WIPER

sub64780-27010

main64780-95703iKM20..DLX198108-198210

W/INSIDE HANDLE

sub64780-27010

main64780-95704iKM20..WG..STD198101-198210

W/INSIDE HANDLE

sub64780-27020

main64780-95709-05iKM20..08S198210-198508

W/INSIDE HANDLE,RR WIPER,BEIGE,BEIGE

sub64780-95709

main64780-95710iKM20..08S198210-198508

W/INSIDE HANDLE

sub64780-27030

main64780-95713iYM20198402-198508

main64780-95716iCM20,KM20,YM21..02S..ARL198210-198508

W/RR WIPER

main64780-95716iKM20..LHD..V4D..06S198311-198508

PORTUGAL SPEC,W/RR WIPER

main64780-95717iCM20,YM21..V4D;KM20..02S..ARL;KM20..V..(EUR,GEN)198210-198508

main64780-95718iKM20..HRF..06S198210-198402

W/INSIDE HANDLE

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-10034-05iCM20;KM20..V..4F;KM20..LHD..V..GEN;KM20..RHD..(02S,03S,06S)198210-198309

BEIGE,REDDISH BROWN

sub90467-10034

68131GLASS, BACK DOOR

main68131-95705iCM20,KM20,YM21..02S..ARL197910-198508

*TEM,T=4.0

sub68131-95708

main68131-95706iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)197910-198201

*EHT,T=4.0

sub68131-95710

main68131-95708iCM20,KM20..GEN198210-198508

*TT,T=4.0

main68131-95709iKM20..HRF..06S198210-198508

*EHTT,T=4.0

main68131-95710iKM20..LHD..V4D..06S198311-198508

PORTUGAL SPEC,*EHT,T=4.0

sub68131-95709

main68131-95710iKM20,YM21..(05S,08S)..ARL198201-198508

*EHT,T=4.0

sub68131-95709

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-95702iCM20,KM20,YM2#..(HRF,SRF)..STD197910-198508

main68291-95703iKM20..DLX198108-198210

6777195J02WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-95J02

6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J01

9017908017

main90179-08017

9046707037

main90467-07037

11 parts on this diagram · 1 diagram in section
