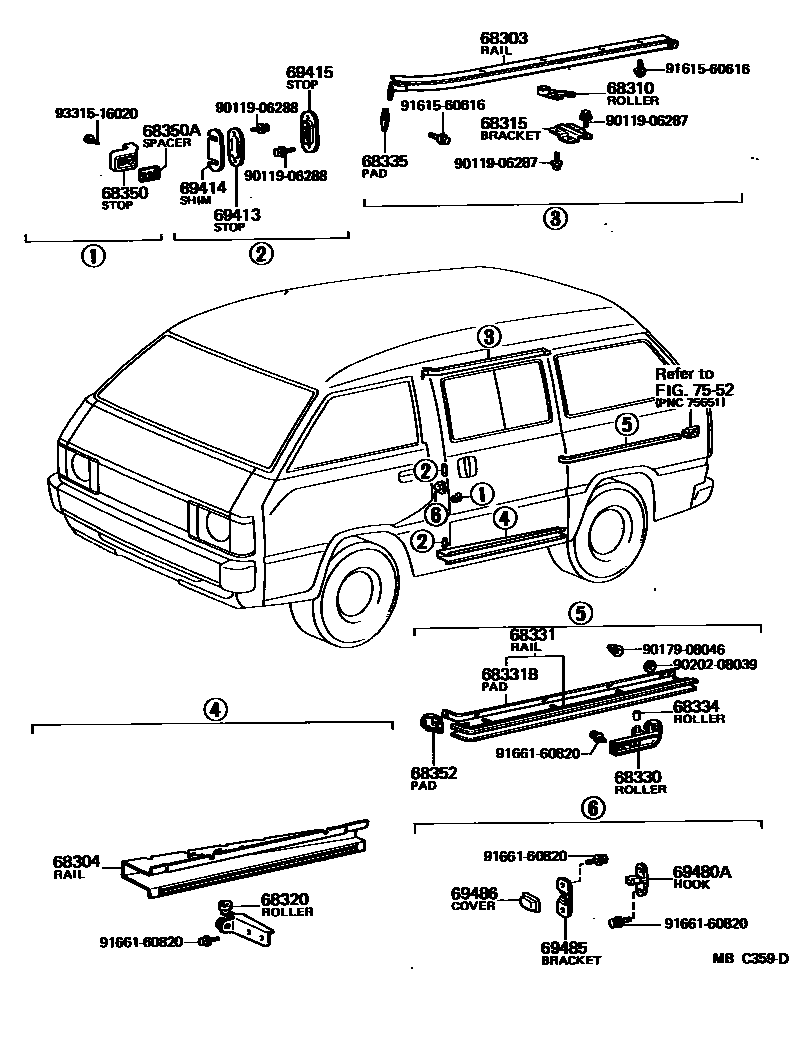

SLIDE ROLLER & RAIL

68303RAIL SUB-ASSY, SLIDE DOOR, UPPER

main68303-95701iKM20..V5D¥3,840197910-198508

RH

main68304-95701iKM20..V5D¥3,840197910-198508

LH

68304RAIL SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68201-95700iKM20..V5D¥10,400197910-198508

RH

main68202-95700iKM20..V5D¥10,400197910-198508

LH

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-95701iKM20..V5D¥1,930197910-198508

RH

main68320-95701iKM20..V5D¥1,930197910-198508

LH

68315BRACKET, SLIDE DOOR UPPER ROLLER

main68315-95701iKM20..V5D¥730197910-198508

RH

main68316-95701iKM20..V5D¥730197910-198508

LH

68320ROLLER ASSY, SLIDE DOOR, LOWER

main68350-95701iKM20..V5D¥6,000197910-198508

RH

main68360-95701iKM20..V5D¥4,860197910-198508

LH

68330ROLLER ASSY, SLIDE DOOR, CENTER

main68370-95701iKM20..V5D¥7,300197910-198508

RH

main68380-95701iKM20..V5D¥7,300197910-198508

LH

68331RAIL, SLIDE DOOR, CENTER

main68301-95701iKM20..V5D¥12,000197910-198508

RH

main68302-95701iKM20..V5D¥12,000197910-198508

LH

68331BPAD, SLIDE DOOR CENTER RAIL

main68367-95701iCM20,YM2#;KM20..V4D;KM20..BUS,WG198106-198508

68334ROLLER, SLIDE DOOR CENTER, NO.2

main68334-95700iCM20,YM2#;KM20..V4D;KM20..BUS,WG¥380197910-198508

68335PAD, SLIDE DOOR UPPER RAIL

main68335-95702iCM20,YM2#;KM20..V4D;KM20..BUS,WG¥450197910-198508

68350STOPPER ASSY, SLIDE DOOR OPEN

main69405-95A00iCM20,YM2#;KM20..V4D;KM20..BUS,WG¥1,170197910-198508

68350ASPACER, SLIDE DOOR OPEN STOPPER

main69411-95A00iCM20,KM20,YM2#..HRF,SRF¥370197910-198508

68352PAD, SLIDE DOOR CENTER RAIL

main68351-95700iKM20..V5D¥530197910-198508

RH

main68352-95700iKM20..V5D197910-198508

LH

69413STOP, SLIDE DOOR DOWN MALE

main69413-95700iCM20,YM2#;KM20..V4D;KM20..BUS,WG¥280197910-198508

69414SHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iCM20,KM20,YM2#..HRF,SRF¥130197910-198508

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69414-95701iCM20,YM2#;KM20..V4D;KM20..BUS,WG¥730197910-198508

69480AHOOK ASSY, SLIDE DOOR FRONT LOCK

main69480-95700iKM20,YM21..(05S,08S)..ARL198204-198508

69485BRACKET, SLIDE DOOR FRONT LOCK STRIKER

main69485-95700iKM20,YM21..(05S,08S)..ARL198204-198508

69486COVER, SLIDE DOOR FRONT LOCK STRIKER

main69486-95700iKM20,YM21..(05S,08S)..ARL198204-198508

7552

9011906287

main90119-06287¥120

9011906288

main90119-06288¥120

9017908046

main90179-08046¥160

9020208039

main90202-08039¥210

9161560616

main91615-60616¥120

9166160820

main91661-60820¥130

9331516020

main93315-16020¥80

27 parts on this diagram · 1 diagram in section
