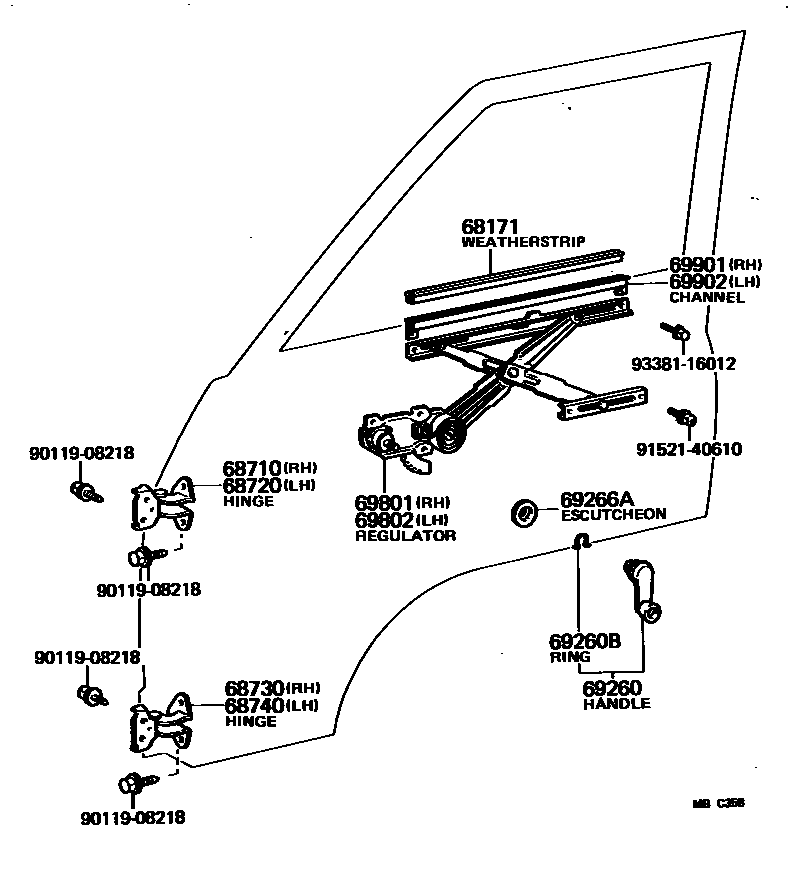

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main69981-95701iCM20,KM20,YM2#197910-198508

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95701iCM20,KM20,YM2#197910-198508

sub68710-95J00

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-95700iCM20,KM20,YM2#197910-198508

sub68720-95J00

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-95700iCM20,KM20,YM2#197910-198508

sub68720-95J00

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95701iCM20,KM20,YM2#197910-198508

sub68710-95J00

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-95700iKM20..05S..ARL197910-198210

main69260-95702-05iCM20,YM2#..V4D;KM20..02S..ARL;KM20..(BUS,V)..(EUR,GEN)198210-198508

BEIGE,BEIGE

sub69260-95702

main69260-95703-05iKM20,YM21..08S198210-198508

BEIGE,BEIGE

sub69260-95703

main69260-95A00iKM20..V..4F;KM20..LHD..GEN;KM20..4H..05S..EUR;KM20..LHD..VSP..4H..EUR;KM20..RHD..(02S,03S,06S,09S)197910-198210

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iCM20,KM20,YM2#197910-198508

sub90520-01274

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69272-30010iCM20,KM20,YM2#197910-198508

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95701iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198101

sub69810-95702

main69810-95702iCM20,KM20,YM2#198101-198508

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95701iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198101

sub69820-95702

main69820-95702iCM20,KM20,YM2#198101-198508

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-95701iCM20,KM20,YM2#197910-198508

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-95701iCM20,KM20,YM2#197910-198508

9011908218

main90119-08218

9152140610

main91521-40610

9338116012

main93381-16012

15 parts on this diagram · 1 diagram in section
