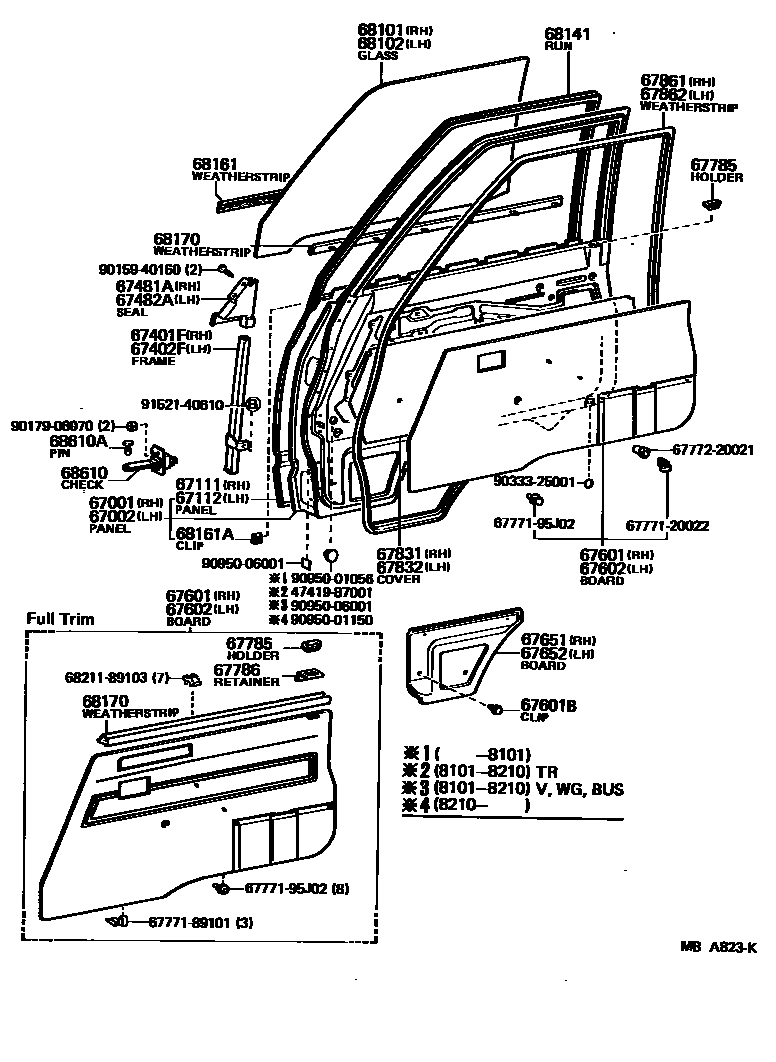

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-87401iKM20..RHD..(EUR,GEN)¥51,800197910-198101

sub67001-87403¥51,800

main67001-87402iKM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198101

sub67001-87404¥54,000

main67001-87403iKM20..RHD..(EUR,GEN)¥51,800198101-198210

sub67001-95717

main67001-87404iKM20..V..4F;KM20..HRF..4H..05S;KM20..HRF..VSP..4H..EUR;KM20..LHD..V..SRF..4H..EUR¥54,000198101-198210

sub67001-95718

main67001-95705iKM20..LHD..GEN197910-198101

sub67001-95710

sub82816-95701¥730

sub90480-30009¥540

sub90950-01150¥460

sub90950-06001¥170

main67001-95710iKM20..LHD..GEN198101-198210

main67001-95711iKM20..WG;KM20..02S..ARL198101-198210

FULL TRIM

main67001-95714iKM20..SRF..4H..EUR198111-198210

main67001-95715iKM20..V..4F198111-198210

main67001-95716iKM20..08S198111-198210

main67001-95721iCM20,KM20..LHD..V..EUR¥49,000198210-198508

main67001-95722iKM20..08S¥49,000198210-198508

main67001-95723iCM20,KM20,YM20..RHD..(EUR,GEN)¥51,700198210-198508

main67001-95726iCM20,KM20..LHD..GEN¥54,400198210-198508

main67001-95728iKM20..LHD..09S198308-198508

PHILIPPINE SPEC,FULL TRIM

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-87401iKM20..RHD..(ARL,GEN)197910-198101

sub47419-87001¥240

sub67002-87402¥51,800

sub67002-87404¥59,400

sub67002-95710

sub67002-95715

sub82816-95701¥730

sub90480-30009¥540

sub90950-01150¥460

sub90950-06001¥170

main67002-87402iKM20..RHD..(02S,03S,06S,09S)..(ARL,GEN)¥51,800198101-198210

sub67002-95719

main67002-95704iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198101

sub67002-95709

sub67002-95714

sub82816-95701¥730

sub90480-30009¥540

sub90950-01150¥460

sub90950-06001¥170

main67002-95706iKM20..RHD..EUR197910-198101

sub67002-95711

sub67002-95716

sub82816-95701¥730

sub90480-30009¥540

sub90950-01150¥460

sub90950-06001¥170

main67002-95709iKM20..LHD..GEN198101-198210

main67002-95710iKM20..05S..ARL198101-198210

FULL TRIM

main67002-95711iKM20..RHD..EUR198101-198210

main67002-95712iKM20..WG198101-198210

FULL TRIM

main67002-95718iKM20..4F198111-198210

main67002-95721iYM21..02S¥51,800198210-198508

main67002-95723iKM20,YM21..(05S,08S)..ARL¥57,200198210-198508

main67002-95724iCM20,KM20..RHD..EUR198210-198508

main67002-95725iCM20,KM20..LHD..V..EUR¥49,000198210-198508

main67002-95726iKM20..08S¥49,000198210-198508

main67002-95727iKM20..LHD..09S198308-198508

PHILIPPINE SPEC,FULL TRIM

67111PANEL, FRONT DOOR, OUTER RH

main67111-95704iKM20..ARL,GEN197910-198210

sub67111-95714¥19,700

main67111-95706iKM20..SRF..4H..EUR198111-198210

sub67111-95970¥20,500

main67111-95707iKM20..4F198111-198210

sub67111-95970¥20,500

main67111-95711iCM20,KM20..LHD..(4F,5F)198210-198307

sub67111-95970¥20,500

main67111-95712iCM20,KM20..RHD..(EUR,GEN)198210-198307

sub67111-95970¥20,500

main67111-95714iCM20,KM20..LHD..GEN¥19,700198210-198508

sub67111-95970¥20,500

main67111-95970iCM20,KM20,YM2#..RHD¥20,500198307-198508

67112PANEL, FRONT DOOR, OUTER LH

main67112-95702iKM20..ARL,GEN197910-198112

sub67112-95707

main67112-95705iKM20..4F198111-198210

sub67112-95970¥19,500

main67112-95706iKM20..SRF..4H..EUR198111-198210

sub67112-95970¥19,500

main67112-95707iKM20..ARL,GEN198112-198210

sub67112-95708¥20,500

main67112-95708iCM20,KM20,YM2#..RHD..(ARL,GEN)¥20,500198210-198508

sub67112-95970¥19,500

main67112-95710iCM20,KM20..RHD..EUR198210-198307

sub67112-95970¥19,500

main67112-95711iKM20..4F;CM20..LHD;KM20..LHD..GEN198210-198307

sub67112-95970¥19,500

main67112-95970iCM20,KM20..LHD..GEN¥19,500198307-198508

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-95700iCM20,KM20,YM2#¥1,060197910-198508

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-95700iCM20,KM20,YM2#¥990197910-198508

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-95700iCM20,KM20,YM2#¥2,190197910-198508

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-95700iCM20,KM20,YM2#¥2,190197910-198508

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95705iKM20..V..4F;KM20..LHD..GEN;KM20..4H..05S..EUR;KM20..LHD..VSP..4H..EUR;KM20..RHD..(02S,03S,06S,09S)¥5,100197910-198210

SEMI TRIM

sub67610-95704¥5,500

main67610-95709iKM20..08S..STD;KM20..05S..ARL197910-198210

FULL TRIM

main67610-95722iKM20..05S..ARL198204-198210

W/SPEAKER

main67610-95723iKM20..DLX198108-198210

FULL TRIM

main67610-95726iKM20..VSP..4H..EUR;CM20,KM20..V4D..(4F,5F)¥4,940198210-198508

sub67610-27050¥4,940

main67610-95730iKM20..LHD..09S¥12,400198308-198412

*PHS,FULL TRIM

main67610-95730iKM20..08S¥12,400198210-198412

main67610-95740iCM20,KM20..LHD..GEN¥5,800198210-198508

W/SPEAKER

sub67610-27070

main67610-95741iCM20..HRF..02S..EUR;KM20..HRF..05S..EUR198211-198409

FINLAND SPEC

sub67610-27080

main67610-95741iCM20,KM20..HRF..4H..EUR198409-198508

sub67610-27080

main67610-95742iKM20..LHD..09S198308-198508

*PHS,FULL TRIM,W/SPEAKER

main67610-95747-05iKM20..LHD..09S198412-198508

BEIGE,BEIGE

main67610-95747-05iKM20..08S198412-198508

*PHS,FULL TRIM,BEIGE,BEIGE

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-09019-06iKM20..WG;KM20..02S..ARL197910-198210

BROWN,BROWN

sub90467-09019¥190

main90467-09019-15iKM20..LHD..09S198308-198508

*PHS,FULL TRIM,BEIGE,BEIGE

sub90467-09019¥190

main90467-09019-15iKM20,YM21..08S;KM20..05S..ARL198210-198508

BEIGE,BEIGE

sub90467-09019¥190

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95702iKM20..V..4F;KM20..LHD..GEN;KM20..4H..05S..EUR;KM20..LHD..VSP..4H..EUR;KM20..RHD..(02S,03S,06S,09S)¥6,100197910-198210

SEMI TRIM

sub67620-27050

main67620-95704-06iKM20..WG..STD;KM20..02S..ARL197910-198210

FULL TRIM,BROWN,BROWN

sub67620-95704¥15,500

main67620-95715-06iKM20..DLX198108-198210

FULL TRIM,DARK BROWN,BROWN

main67620-95717iKM20..05S..ARL198204-198210

W/SPEAKER

main67620-95721iCM20,KM20,YM21..02S..ARL¥4,940198210-198508

sub67620-27060¥4,940

main67620-95722iKM20,YM21..(05S,08S)..ARL198210-198412

main67620-95730iCM20,KM20..LHD..GEN¥5,800198210-198508

W/SPEAKER

sub67620-27080

main67620-95731iKM20..LHD..09S198308-198412

*PHS,FULL TRIM

main67620-95731iKM20..08S198210-198412

main67620-95732iCM20..HRF..02S..EUR;KM20..HRF..05S..EUR198211-198409

FINLAND SPEC

sub67620-27090

main67620-95732iCM20,KM20..HRF..4H..EUR198409-198508

sub67620-27090

main67620-95733iKM20..LHD..09S198308-198508

*PHS,FULL TRIM,W/SPEAKER

main67620-95737-05iKM20,YM21..(05S,08S)..ARL198412-198508

BEIGE,BEIGE

main67620-95743-05iKM20..08S198412-198508

*PHS,FULL TRIM,BEIGE,BEIGE

main67620-95743-05iKM20..08S198412-198508

BEIGE,BEIGE

67651BOARD, FRONT DOOR TRIM, LOWER RH

main67701-95700-06iKM20..WG..STD;KM20..02S..ARL197910-198210

FULL TRIM,BROWN,BROWN

sub67701-95700¥12,100

main67701-95703-05iKM20..DLX198108-198210

FULL TRIM,BEIGE,BEIGE

main67701-95710iKM20,YM21..08S;KM20..05S..ARL198210-198508

BEIGE

main67711-95702iKM20..WG..STD197910-198210

SEMI TRIM

main67711-95702-05iKM20..LHD..09S198308-198508

PHILIPPINE SPEC,FULLTRIM,BEIGE,BEIGE

67652BOARD, FRONT DOOR TRIM, LOWER LH

main67702-95700-06iKM20..WG..STD;KM20..02S..ARL198001-198210

FULL TRIM,BROWN,BROWN

sub67702-95700¥12,100

main67702-95703-05iKM20..DLX198108-198210

FULL TRIM,BEIGE,BEIGE

main67702-95710iKM20,YM21..08S;KM20..05S..ARL198210-198508

BEIGE

main67712-95700iKM20..07S;KM20..02S..ARL197910-198001

FULL TRIM

main67712-95702iKM20..WG..STD197910-198210

SEMI TRIM

main67712-95702-05iKM20..LHD..09S198308-198508

PHILIPPINE SPEC,FULLTRIM,BEIGE,BEIGE

67785HOLDER, FRONT DOOR LOCKING BUTTON COLLAR

main69751-20030-01iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198203

SEMI TRIM,BLACK,BLACK

sub69751-20030¥320

sub69751-20031¥330

main69751-20031-01iCM20,YM2#..V4D;KM20..05S..EUR;KM20..02S,03S,06S,09S198203-198508

SEMI TRIM,BLACK,BLACK

sub69751-20031¥330

main69751-20040iKM20..WG;KM20..02S..ARL¥350197910-198412

FULL TRIM

main69751-20060-15iYM21..08S198412-198508

FULL TRIM,BEIGE,BEIGE

sub69751-20060¥440

sub69751-12030¥260

67786RETAINER, DOOR LOCKING BUTTON COLLAR

main67786-10010iKM20..WG;KM20..02S..ARL¥350197910-198412

main67786-95700iYM21..08S198412-198508

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-87401iKM20..TR197910-198210

main67831-95700iCM20,KM20,YM2#..HRF,SRF197910-198508

main67831-95702iCM20,KM20..LHD..GEN198204-198508

W/SPEAKER

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-87401iKM20..TR197910-198210

main67831-95700iCM20,KM20,YM2#..HRF,SRF197910-198508

main67831-95702iKM20..05S..ARL198204-198508

W/SPEAKER

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95701iCM20,KM20,YM2#¥7,400197910-198508

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95701iCM20,KM20,YM2#¥7,400197910-198508

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95702iCM20,KM20,YM2#¥10,000197910-198508

*TEM,T=4.0

sub68111-95703¥11,400

main68111-95703iKM20,YM21..(05S,08S)..ARL¥11,400198210-198508

*TT,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95702iCM20,KM20,YM2#¥0197910-198508

*TEM,T=4.0

sub68112-95703¥11,400

main68112-95703iCM20,KM20..GEN¥11,400198210-198508

*TT,T=4.0

68141RUN, FRONT DOOR GLASS

main68141-95703iCM20,YM21;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S¥2,620197910-198401

L=1853

sub68141-95705¥2,630

main68141-95705iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S¥2,630198401-198508

L=1853

main68143-95701iCM20,YM21;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S¥870197910-198401

L=457

sub68143-95702¥890

main68143-95702iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S¥890198401-198508

L=457

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68171-95703iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)¥2,830197910-198101

RH

main68171-95704iCM20,KM20,YM2#¥3,280198101-198508

RH

main68172-95703iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)¥2,830197910-198101

LH

main68172-95704iCM20,KM20,YM2#¥3,280198101-198508

LH

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68212-95700iCM20,KM20,YM2#¥360197910-198508

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68130-95700iKM20..VSP..02S;KM20..03S,05S,06S,09S¥2,230197910-198508

main68171-95705iKM20..08S¥2,970198210-198508

RH

main68171-95705iKM20..LHD..09S¥2,970198308-198508

PHILIPPINE SPEC,RH

main68172-95705iKM20..08S¥2,970198210-198508

LH

main68172-95705iKM20..LHD..09S¥2,970198308-198508

PHILIPPINE SPEC,LH

68610CHECK ASSY, FRONT DOOR

main68610-95700iCM20,KM20,YM2#¥3,510197910-198508

68610APIN(FOR FRONT DOOR CHECK)

main68617-22010iCM20,KM20,YM2#¥300197910-198508

sub68617-12010¥280

4741987001PLUG, HOLE(FOR FRONT BRAKE)

main47419-87001¥240

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022¥200

6777189101WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-89101¥180

6777195J02WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-95J02¥230

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021¥240

6821189103CHANNEL, DOOR WINDOW SET(FOR CANVAS DOOR)

main68211-89103¥260

9015940160

main90159-40160¥140

9017906070

main90179-06070¥180

9033325001

main90333-25001¥140

9095001056

main90950-01056¥230

9095001150

main90950-01150¥460

9095006001

main90950-06001¥170

9152140610

main91521-40610¥110

40 parts on this diagram · 1 diagram in section
