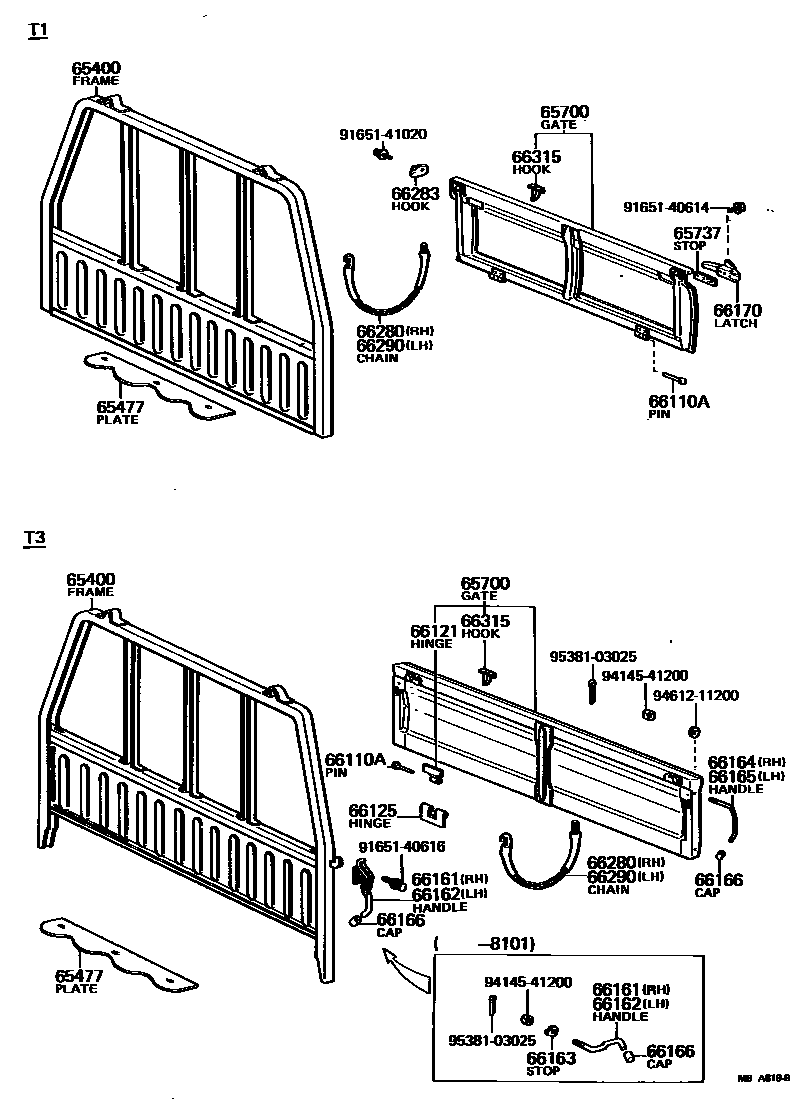

REAR BODY GUARD FRAME & TAIL GATE

65400FRAME ASSY, REAR BODY GUARD

main65400-87407iKM20..T3197910-198101

main65400-87409iKM20..T1197910-198210

main65400-87411iKM20..T3198101-198210

sub65400-95708

65477PLATE, BAFFLE

main65477-87402iKM20..TR197910-198210

65700GATE ASSY, REAR BODY TAIL

main65700-87405iKM20..T3197910-198101

sub65700-87408

main65700-87406iKM20..T1197910-198210

sub65700-95700

main65700-87408iKM20..T3198101-198210

65737STOP, TAIL GATE

main65737-87401iKM20..T1197910-198210

66110APIN, TAIL GATE HINGE

main66113-87401iKM20..T1197910-198210

main66113-87402iKM20..T3197910-198210

66121HINGE, TAIL GATE, MALE

main66111-87403iKM20..T3197910-198210

sub66111-87404

66125HINGE, TAIL GATE, FEMALE

main66112-87402iKM20..T3197910-198210

66161HANDLE, SIDE GATE LATCH, RH

main66101-87401iKM20..T3198101-198210

main66163-87402iKM20..T3197910-198101

66162HANDLE, SIDE GATE LATCH, LH

main66102-87401iKM20..T3198101-198210

main66164-87402iKM20..T3197910-198101

66163STOP, SIDE GATE LATCH HANDLE

main66169-87401iKM20..T3197910-198101

66164HANDLE, TAIL GATE LATCH, RH

main66161-87403iKM20..T3197910-198210

66165HANDLE, TAIL GATE LATCH, LH

main66162-87402iKM20..T3197910-198210

66166CAP, GATE LATCH HANDLE

main66165-87402iKM20..T3197910-198210

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-87401iKM20..T1197910-198210

66280CHAIN ASSY, TAIL GATE, RH

main66280-87403iKM20..TR197910-198210

66283HOOK, TAIL GATE CHAIN SIDE

main66287-87402iKM20..T1197910-198210

RH

main66288-87402iKM20..T1197910-198210

LH

66290CHAIN ASSY, TAIL GATE, LH

main66280-87403iKM20..TR197910-198210

66315HOOK, ROPE

main66311-87401iKM20..TR197910-198210

9165140614

main91651-40614

9165140616

main91651-40616

9165141020

main91651-41020

9414541200

main94145-41200

9461211200

main94612-11200

9538103025

main95381-03025

24 parts on this diagram · 1 diagram in section
