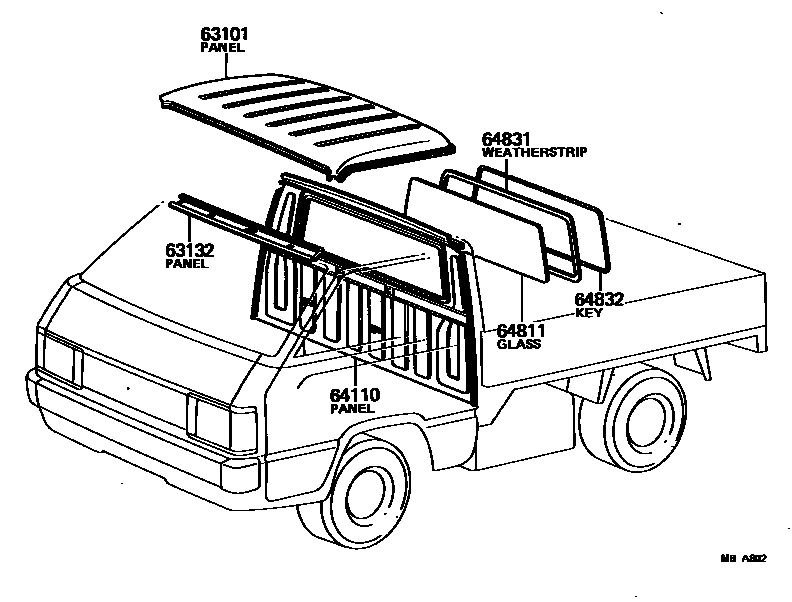

ROOF PANEL & BACK PANEL

0001 1 0002 1

63101PANEL SUB-ASSY, ROOF

main63111-87402iKM20..TR197910-198210

main63111-95704iCM20,KM20,YM2#..SRF197910-198508

main63111-95705iCM20,KM20..HRF197910-198508

63132PANEL, WINDSHIELD HEADER, INNER

main63103-95702iKM20..RHD..(EUR,GEN)197910-198002

W/VISOR=DRIVER ONLY

sub63103-95703

main63103-95703iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198002

W/VISOR=DRIVER,PASSENGER

main63103-95703iCM20,KM20,YM2#198002-198508

main63103-95704iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198002

W/VISOR=DRIVER ONLY

sub63103-95703

64110PANEL ASSY, FRONT BODY BACK

main64101-87401iKM20..TR197910-198210

64811GLASS, BACK WINDOW

main64811-87404iKM20..TR197910-198210

*TEM,T=4.0,*TEM,T=4.0

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-87401iKM20..TR197910-198210

64832KEY, BACK WINDOW WEATHERSTRIP

main64813-87401iKM20..TR197910-198210

6 parts on this diagram · 2 diagrams in section
